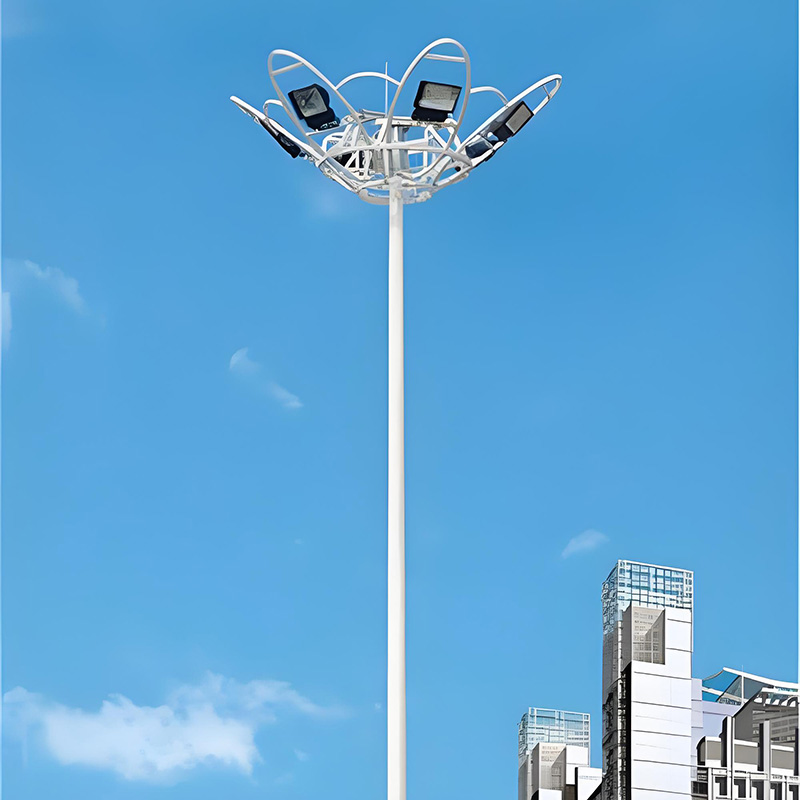

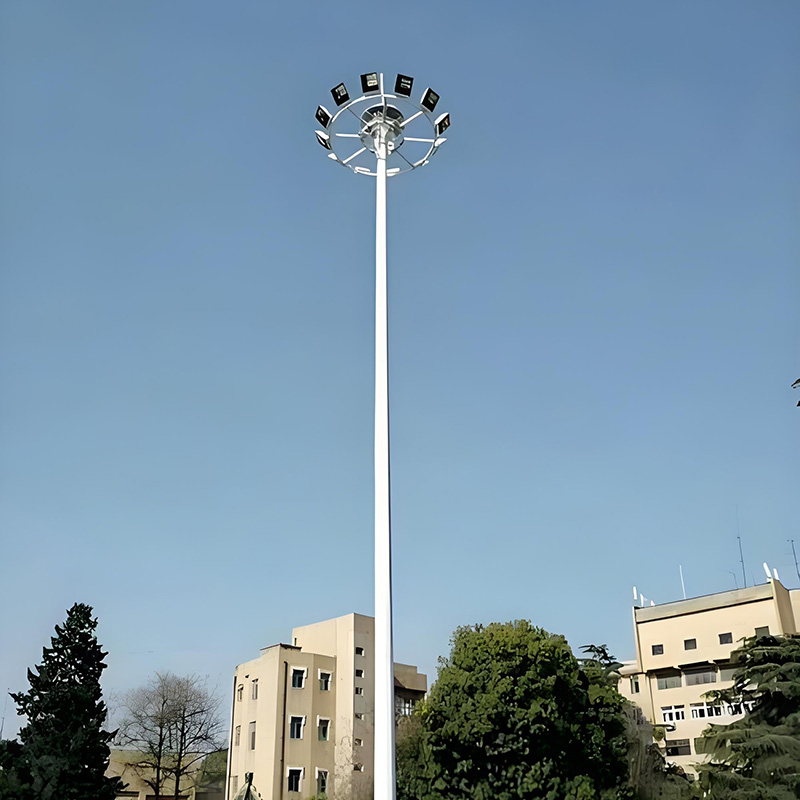

Steel Lifting Type High Mast Light Pole

Steel Lifting Type High Mast Light Pole is designed for large-area outdoor lighting and convenient maintenance. Unlike ladder-climbing high mast lights, this product uses an electric lifting system, allowing the light fixture to be lowered to the ground for maintenance, eliminating the need for personnel to climb. The product uses a dodecagonal pole structure combined with Q235B or Q355B steel to maintain stable structural strength at different heights. The pole is treated with hot-dip galvanization as the primary corrosion protection, followed by electrostatic powder coating to form a dual-layer surface protection system. This product is suitable for ports, airports, squares, and sports venues that require high mast lighting. The product comes with corresponding flange sizes and ground cage steel reinforcement for each height specification, ensuring consistent installation.

Get A Quote

Materials and Structure
Made of Q235B or Q355B steel, commonly used for outdoor structural components requiring controllable strength and weldability.
The dodecagonal pole design (20 meters, 25 meters, 30 meters) optimizes wind resistance distribution, reducing local stress concentration.
Wall thickness configuration: 20 meters with 6mm + 8mm, 25 meters with 6mm + 8mm + 8mm, 30 meters with 6mm + 8mm + 10mm.
Lifting system: Electric winch with self-locking function, manual hand crank, and fall protection safety steel cables.

Surface Treatment
The pole and metal components are treated with hot-dip galvanization for enhanced corrosion resistance.
The external surface is treated with electrostatic powder coating, providing additional protection and ensuring a uniform appearance.

Size Specifications
Available heights: 20 meters, 25 meters, 30 meters.
Top diameter: 200/400mm (20 meters), 240/540mm (25 meters), 300/600mm (30 meters).
Flange specifications: 20mm×Φ750mm (20 meters), 25mm×Φ900mm (25 meters), 30mm×Φ1000mm (30 meters).
LED light sources: 12×200W (20 meters), 24×200W (25 meters), 28×200W (30 meters).
Lighting coverage: 4000m² (20 meters), 8000m² (25 meters), 9000m² (30 meters).

Installation Configuration
Ground cage steel reinforcement based on pole height specifications: 20 meters with 12×M30×1.5 meters, 25 meters with 12×M36×1.8 meters, 30 meters with 12×M42×2 meters.
Flange base design, suitable for concrete foundation installation.
The pole bottom is equipped with a lockable maintenance door for placing lifting control boxes and wiring terminals.

Application Scenarios
Lighting for ports and container terminals, airport cargo areas, taxiways and service roads, highway interchange interchanges, toll plaza lighting, large public squares, outdoor lighting for sports venues, industrial parks, mining areas, and open-air storage yard lighting.

Height	20 meters	25 meters	30 meters
Upper Diameter	200mm	240mm	300mm
Lower Diameter	400mm	540mm	600mm
Wall Thickness	6mm，8mm	6mm,8mm,8mm	6mm,8mm,10mm
Segment Length Of Rod	10.5 meters, 10.5 meters	8.9 meters, 9 meters, 9 meters	11 meters, 11 meters, 10 meters
Main Pole Shape	Dodecagon	Dodecagon	Dodecagon
Flange Specification	20mm*φ750mm	25mm*φ900mm	30mm*φ1000mm
Ground Cage Specifications	12M301.5m	12M361.8 meters	12M422 meters
High-Pole Type	Lifting type	Lifting type	Lifting type
Material	Q235B/Q355B	Q235B/Q355B	Q235B/Q355B
Spraying Method	Electrostatic powder coating	Electrostatic powder coating	Electrostatic powder coating
Preservation Method	Hot-dip galvanizing	Hot-dip galvanizing	Hot-dip galvanizing
LED Light Source	12*200W	24 *200W	28 *200W
Irradiation Range	4000 square meters	8000 square meters	9000 square meters
