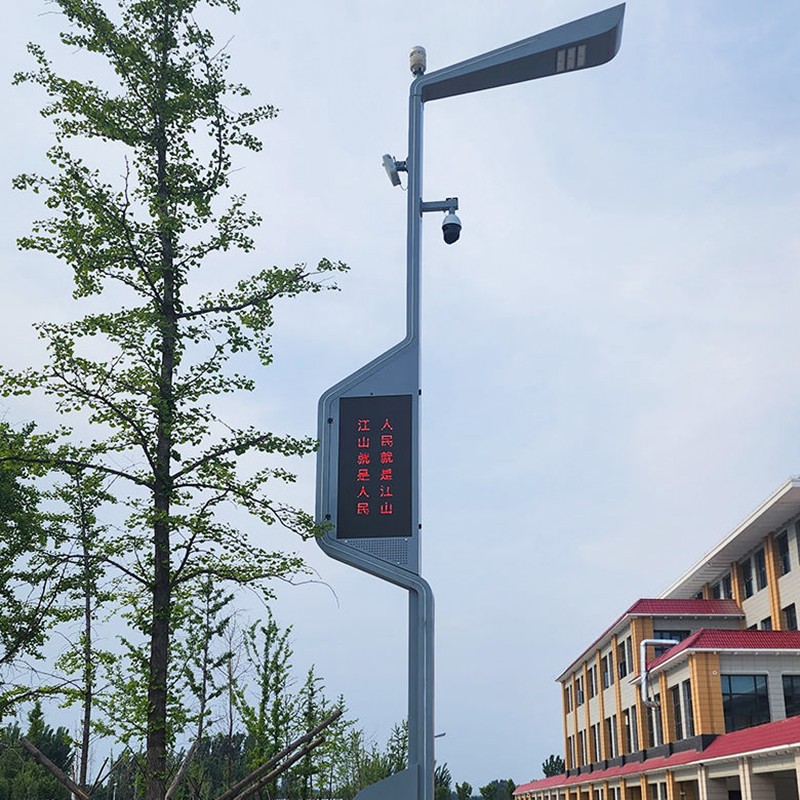

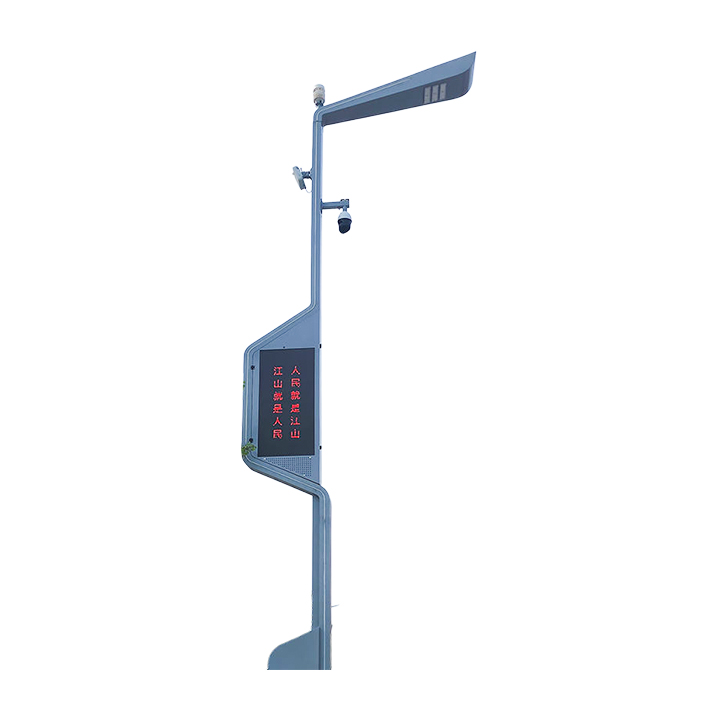

Steel Multi-Functional Intelligent Traffic Monitoring Sign Pole

Materials and Structure
Constructed from Q355B steel, which is stronger than Q235 and suitable for outdoor structural components that need to support multiple devices.
The octagonal pole design features a two-segment main pole: the lower segment is 320mm x 8mm x 8500mm, and the upper segment is Φ165 x 4mm x 3500mm.
Cross arm dimensions: 160mm x 6mm x 5500mm, used for extending and installing cameras or signage.
The lamp arm diameter is 60mm, with an inclination angle of 12° to 15°, suitable for standard streetlight fixtures.

Surface Treatment
The pole body and metal accessories are treated with hot-dip galvanization to enhance corrosion resistance.
The external surface is coated with an electrostatic powder coating for additional protection and to maintain a uniform appearance.

Size Specifications
Total height: 12 meters.
Main pole lower segment: 320mm x 8mm x 8500mm.
Main pole upper segment: Φ165 x 4mm x 3500mm.
Cross arm: 160mm x 6mm x 5500mm.
Flange specifications: 30mm x Φ650mm.
Lamp arm diameter: 60mm, with an inclination angle of 12° to 15°.

Installation Configuration
Ground cage reinforcement: 8 x M30 x 1800mm.
Flange base design, suitable for concrete foundation installation.

Application Scenarios

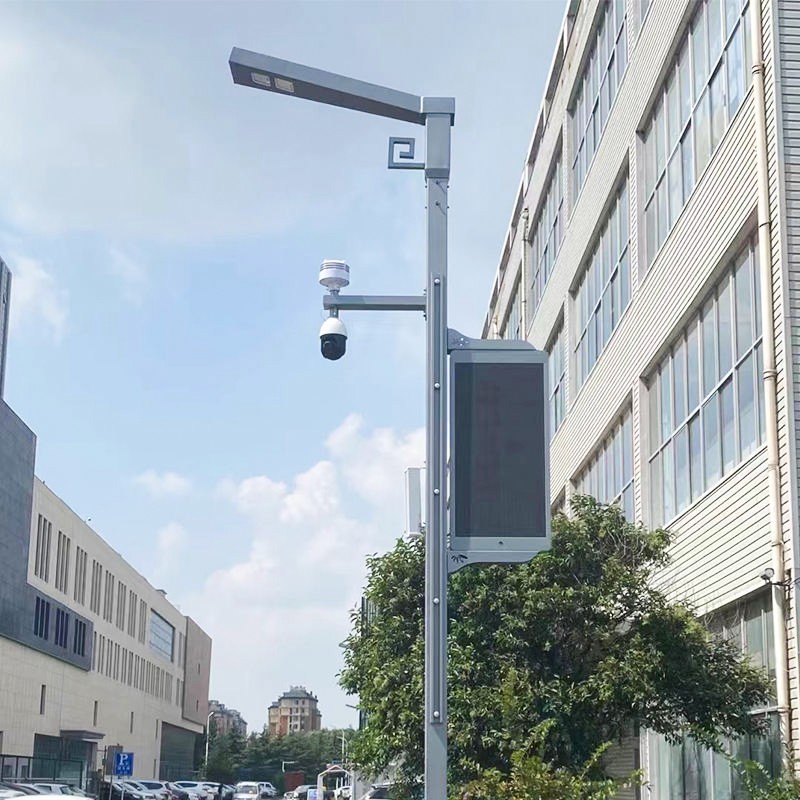

Urban smart roads: Integration of lighting, monitoring, 5G base stations, and information display screens.
Traffic hubs: Integration of poles around airports, train stations, and road junctions.
Parks and commercial districts: Multi-device pole integration to reduce pole numbers.
Public infrastructure: Municipal roads, squares, and locations requiring efficient pole management.
