Materials and Structure

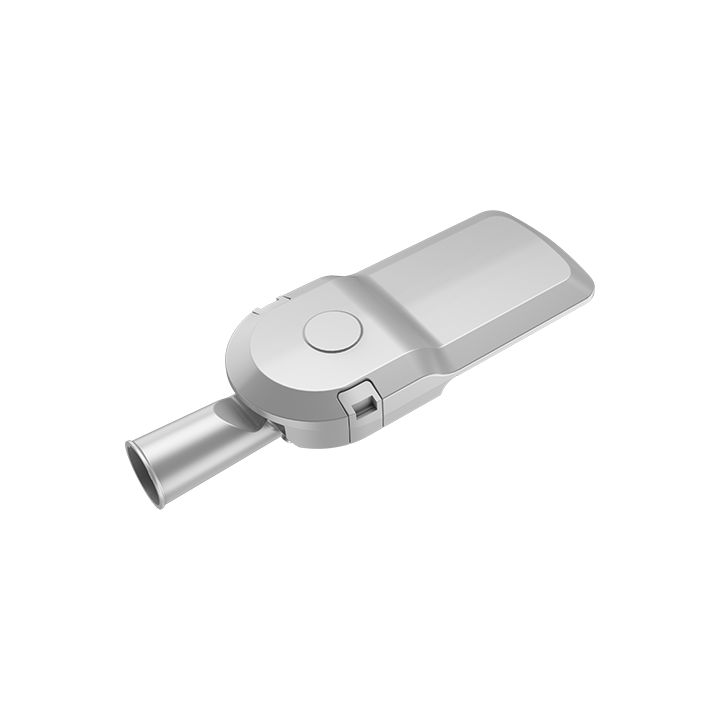

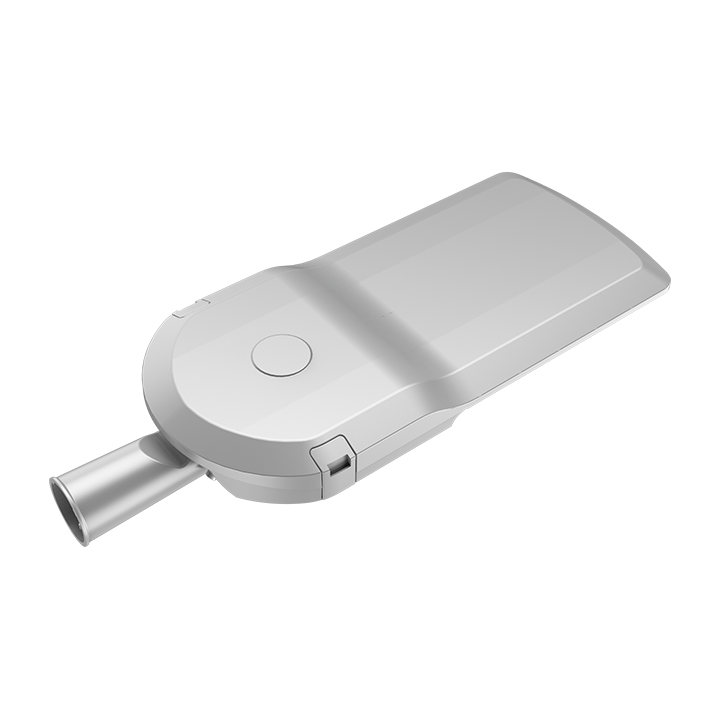

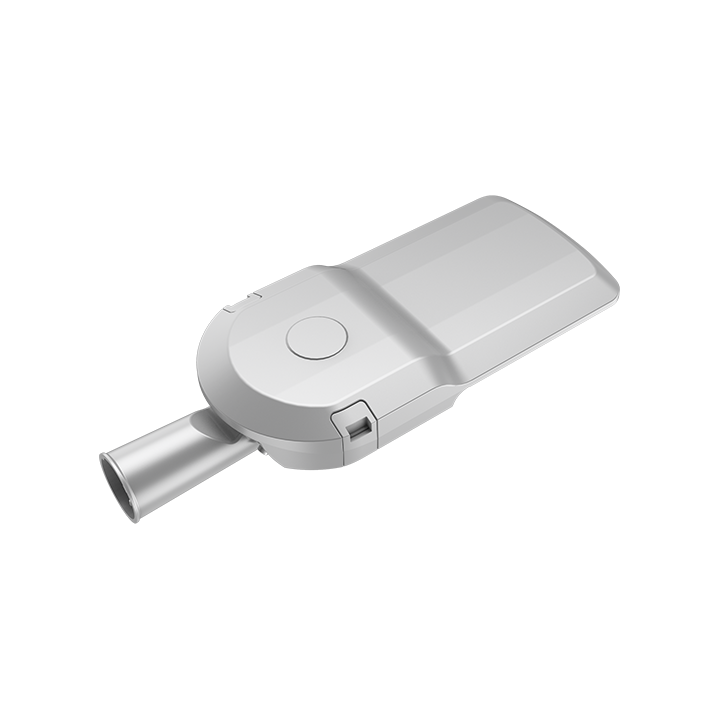

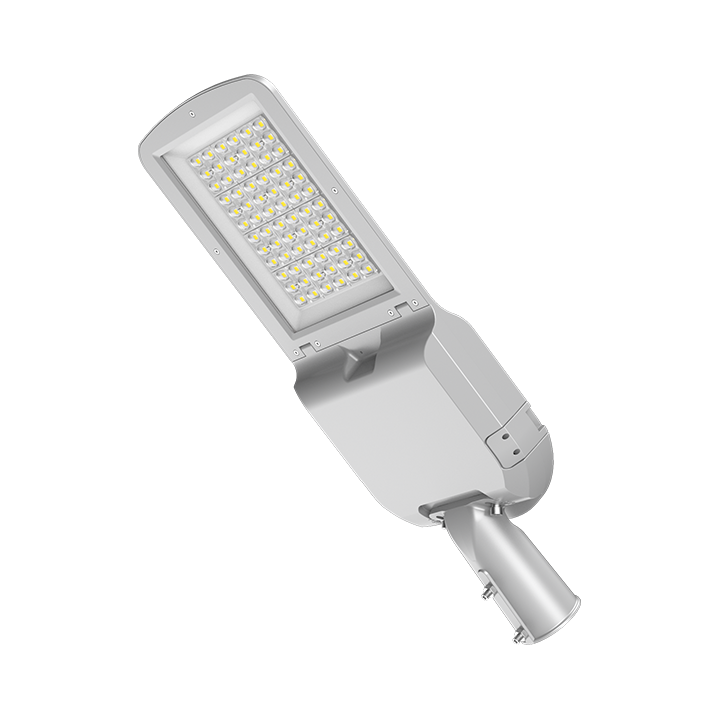

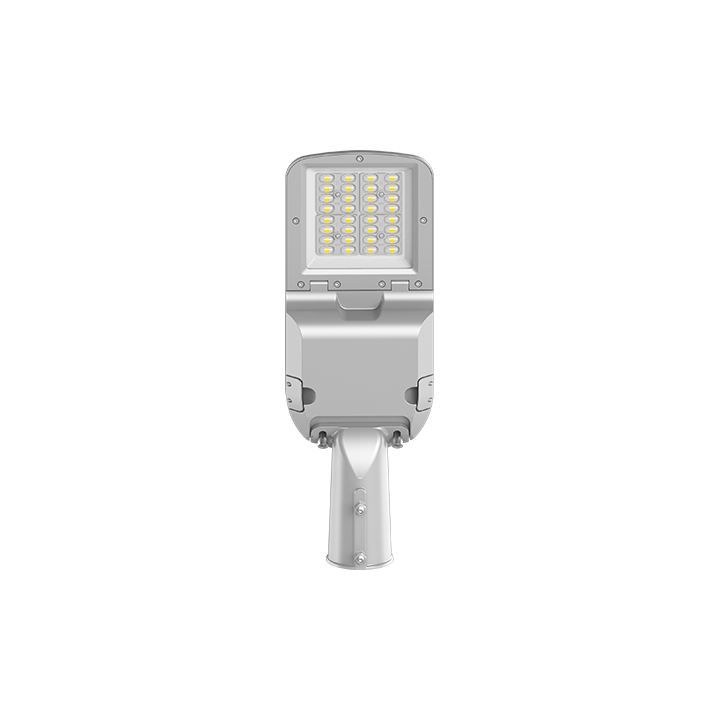

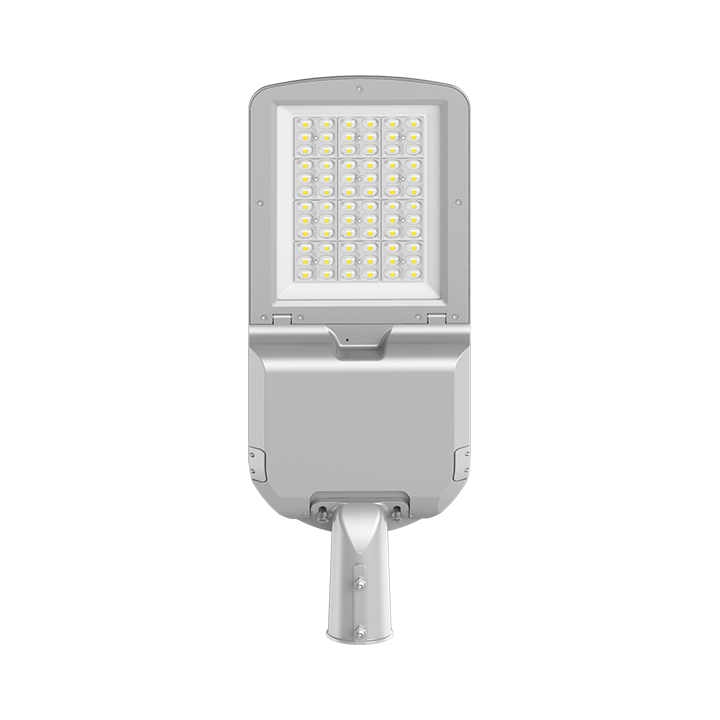

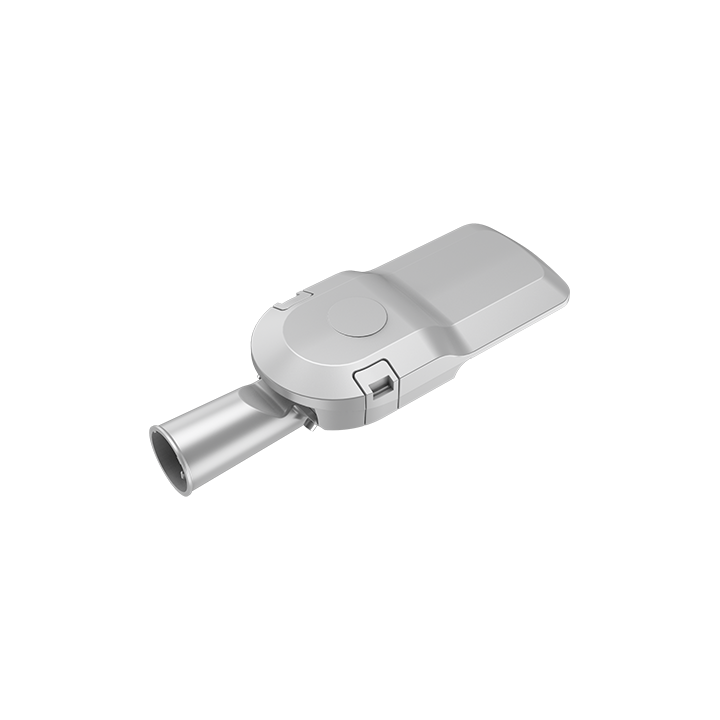

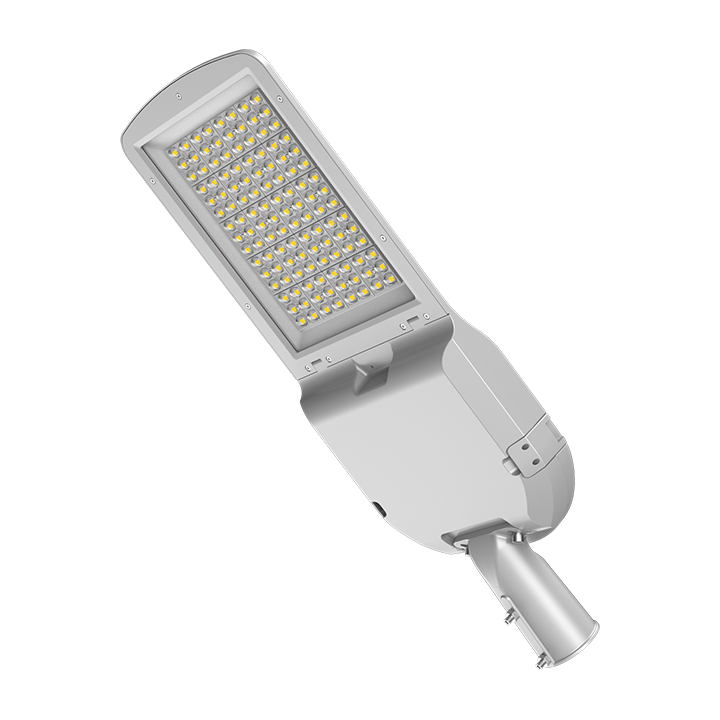

Adopted patented private mold, integrated die-casting aluminum housing with flat honeycomb heat dissipation design, offering high thermal efficiency.
Professional anti-glare lens with selectable beam angles of 60°, 90°, 120°, T2M, T3M, or T4M, meeting different road widths and pole spacing requirements.
Light efficacy of 130-170 lm/W available.
Tempered glass panel with no-glue fixation, providing strong weather resistance.
Clip-type installation structure for tool-free removal of the driver and light source module.
Surface Treatment
The lamp body surface undergoes electrostatic powder coating with high corrosion resistance.
Colors can be customized according to customer requirements.
Size Specifications
Power: 50W, 80W, 100W, 150W, 200W, 240W.
Voltage: AC100-277V, PF > 0.95, Color Temperature: 3000-6000K, IP66 Protection Rating, Lifespan: ≥50,000 hours.
Fitting poles with diameters of 50mm, or 60mm.
Installation Configuration
Built-in level, assisting in installation calibration.
Side mount or top mount.

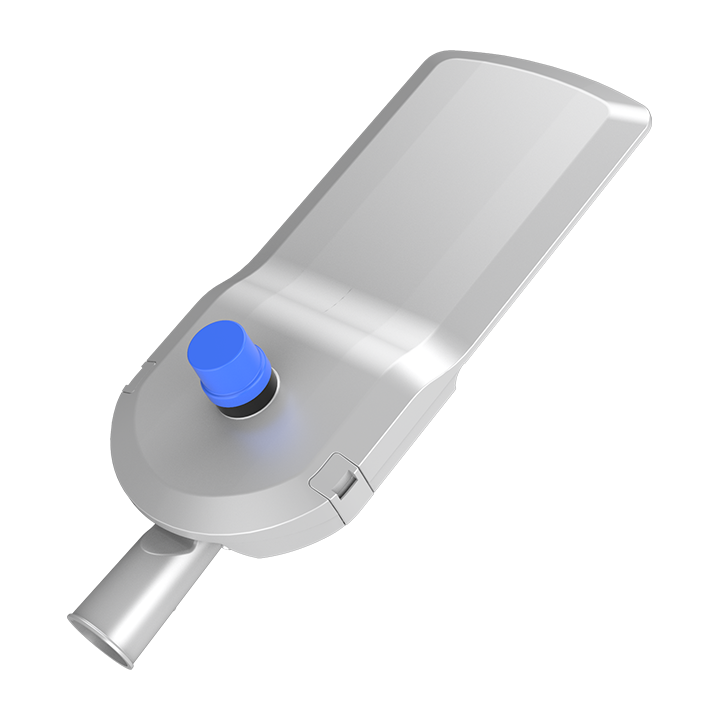

0-10V dimming, time control, light sensing, and IoT smart control are optional.
Clip-type structure for tool-free opening and maintenance.
Application Scenarios
City roads and highways lighting, industrial areas and logistics parks lighting, large parking lots and squares lighting, stadium exterior lighting, tunnel lighting, and port lighting.
| Model | THSL03-50W | THSL03-80W | THSL03-100W | THSL03-150W | THSL03-200W | THSL03-240W |
| Power | 50W | 80W | 100W | 150W | 200W | 240W |
| Voltage | AC100-277V | |||||
| Frequency Range | 50/60Hz | |||||
| PF | >0.95 | |||||
| CCT | 3000-6000K | |||||
| Lamp Brand | 3030/5050 | |||||
| IP Rating | IP66 | |||||
| Colour Rendering Index | Ra>70 | |||||
| Beam Angle | 60°/90°/120°/T2M/T3M/T4M | |||||
| LED Driver | Inventronics/MeanWell/Philips/MOSO | |||||
| Raw Material | Die-cast Aluminum+PC Lens | |||||
| Luminous Efficiency | 130-170lm/W | |||||
| Working Temperature | -40°C~50°C | |||||
| Life | ≥50000H | |||||
