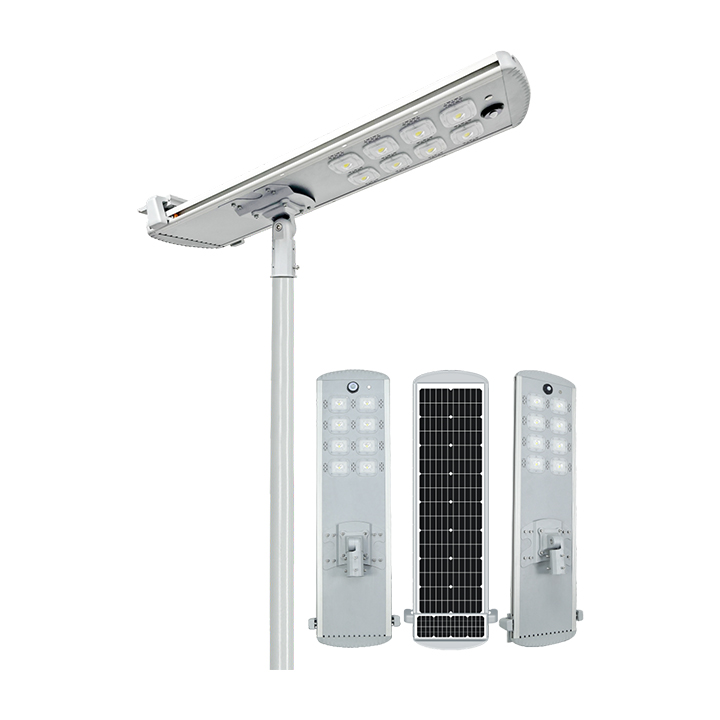

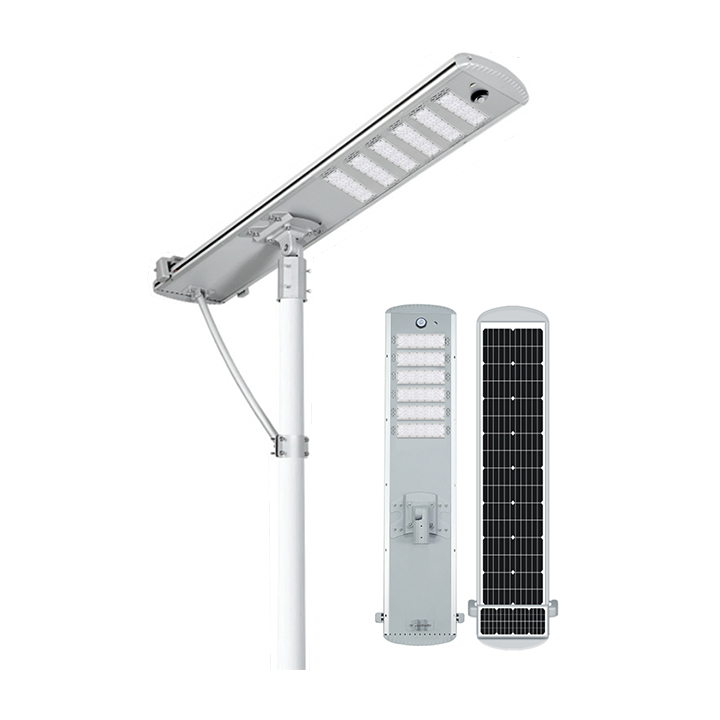

High Efficiency 200Lm/W Integrated Solar LED Street Light

The High Efficiency 200lm/W Integrated Solar LED Street Light is designed for off-grid lighting projects that require high illumination output while limiting energy consumption. The product achieves high brightness output with lower power consumption, providing longer night-time lighting or wider illumination coverage with the help of the solar system. Compared to ordinary solar lights, this product increases the lumen output by about 30% at the same power level, and for the same brightness, it allows the use of smaller solar panels and batteries, thus reducing system costs. The product features an integrated design, with the solar panel, LED light source, lithium iron phosphate battery, and MPPT controller all integrated into the same light body. The solar panel has a 25-year service life, and the battery has a 5-year service life. The product uses a light control + time control mode, with one rainy day backup.

Get A Quote

Materials and Structure
The lamp body is made from die-cast aluminum. The solar panel is made from monocrystalline silicon, with a 25-year service life. The lithium iron phosphate battery has a 5-year service life. The LED light source uses SMD3030 chips, with light efficiency ≥200lm/W, and color temperature options of 3000K to 6000K. The controller is of the SRNE MPPT type, matching the power and current to the LED power. The protection rating is IP65.

Surface Treatment
The die-cast aluminum lamp body is treated with electrostatic powder coating for corrosion resistance.

Dimensions and Specifications

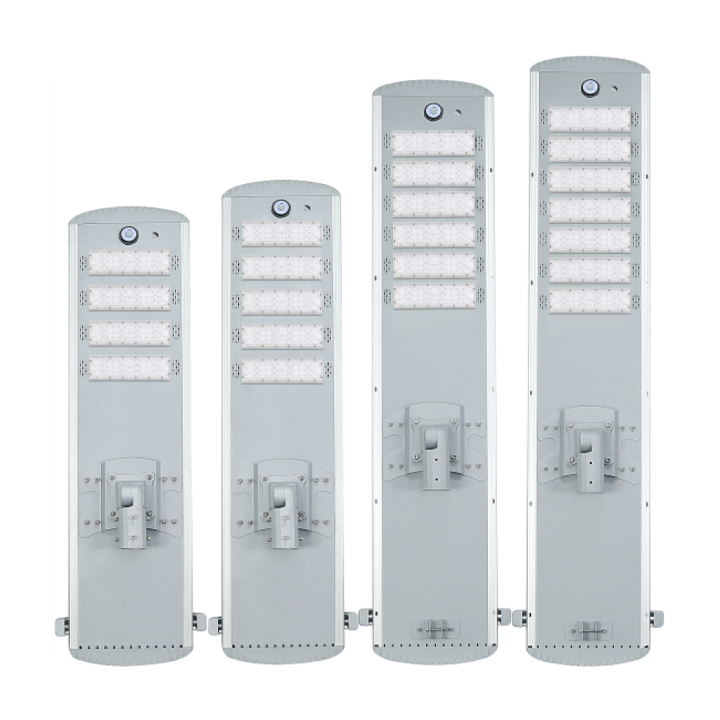

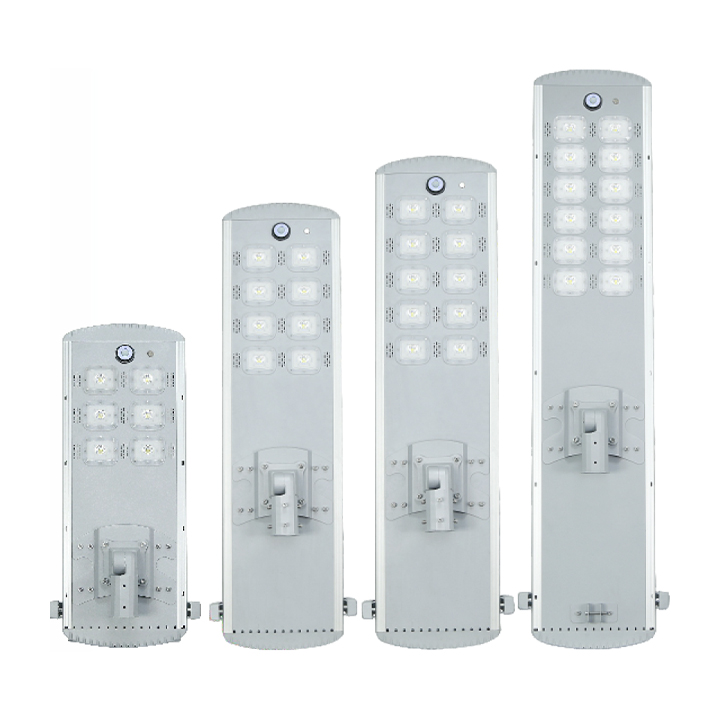

Power: 40W, 50W, 70W, 90W, 100W.
Solar Panel Parameters: 40W with 45W, 50W with 60W, 70W with 80W, 90W with 100W, 100W with 120W.
Battery Parameters: 40W with 3.2V/109Ah, 50W with 3.2V/138Ah, 70W with 12.8V/45Ah, 90W with 12.8V/54Ah, 100W with 12.8V/65Ah.
LED Lumen Value: 40W is 8000Lm, 50W is 10000Lm, 70W is 12000Lm, 90W is 16000Lm, 100W is 20000Lm.
Installation Height: 40W and 50W suitable for 5-7 meters, 70W suitable for 6-8 meters, 90W and 100W suitable for 8-10 meters.
Charging Time: 6-10 hours.

Installation Configuration
Side or top-mounted on the light pole. The light control + time control mode follows this schedule:100% brightness for 2 hours, 70% brightness for 3 hours, 10% brightness for 3 hours. It supports one rainy-day backup. CE certified with a 5-year warranty.

Application Scenarios
Ideal for city main roads, expressways, industrial parks, logistics parks, ports, piers, and off-grid lighting projects requiring high brightness with low power consumption.

Model		THSOSL03- 40W	THSOSL03- 50W	THSOSL03- 70W	THSOSL03- 90W	THSOSL03- 100W
Solar Panels	Parameter	18V/45W	18V/60W	18V/80W	18V/100W	18V/120W
	Service Life	25 years
	Crystalline Silicon Type	Monocrystalline silicon
Battery	Parameter	3.2V/109Ah	3.2V/138Ah	12.8V/45Ah	12.8V/54Ah	12.8V/65Ah
	Battery Type	Lithium Iron Phosphate
	Service Life	5 years
LED CHIPS	Power	40W	50W	60W	80W	100W
	Lamp type	SMD3030	SMD3030	SMD3030 ,	SMD3030	SMD3030
	Light Effect	≥200lm/W	≥200lm/W	≥200lm/W	≥200lm/W	≥200lm/W
	LM	8000Lm	10000Lm	12000Lm	16000Lm	20000Lm
	K	3000-6000K	3000-6000K	3000-6000K	3000-6000K	3000-6000K
	Ra	≥70	≥70	≥70	≥70	≥70
Controller	Controller Type	SRNE MPPT 40W 10A	SRNE MPPT 50W 10A	SRNE MPPT 60W 10A	SRNE MPPT 80W 10A	SRNE MPPT 100W 10A
Installation	Installation Height	5-7m	5-7m	6-8m	8-10m	8-10m
Body Material	Die-cast aluminum, aluminum alloy
Control Method	Light control + time control
Charging Time	6-10H
Lighting Time	100% 2hours+70% 3 hours+ 10%3hours+ 1 raining days
Certification	CE
Protection Grade	IP65
Warranty	5years
