Adjustable Module Angle Integrated Solar LED Street Light

Adjustable Module Angle Integrated Solar LED Street Light
The Adjustable Module Angle Integrated Solar LED Street Light is designed specifically for outdoor lighting projects in regions with varying latitudes and installation conditions. Unlike traditional fixed-angle solar lights, this product allows for manual adjustment of the solar panel module angle according to the solar elevation angle at the installation site. This ensures the best light incidence angle throughout the seasons, improving photoelectric conversion efficiency. The product features an integrated design, with the solar panel, LED light source, lithium iron phosphate battery, and MPPT controller all integrated into the same light body, requiring no external cables and simplifying installation. The lithium iron phosphate battery has excellent high and low-temperature performance, ensuring stable operation in both hot summers and cold winters. It is equipped with an SRNE brand MPPT controller, offering higher charging efficiency than ordinary PWM controllers.

Materials and Structure

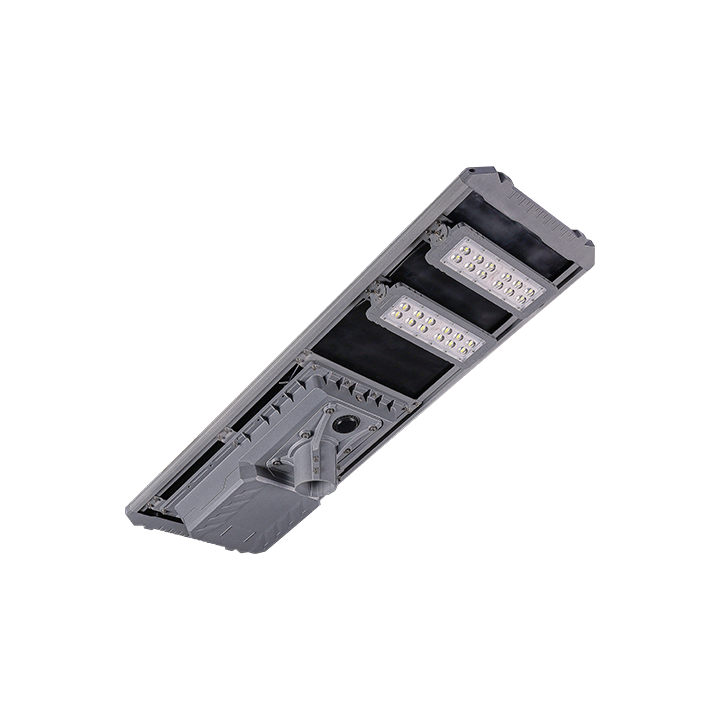

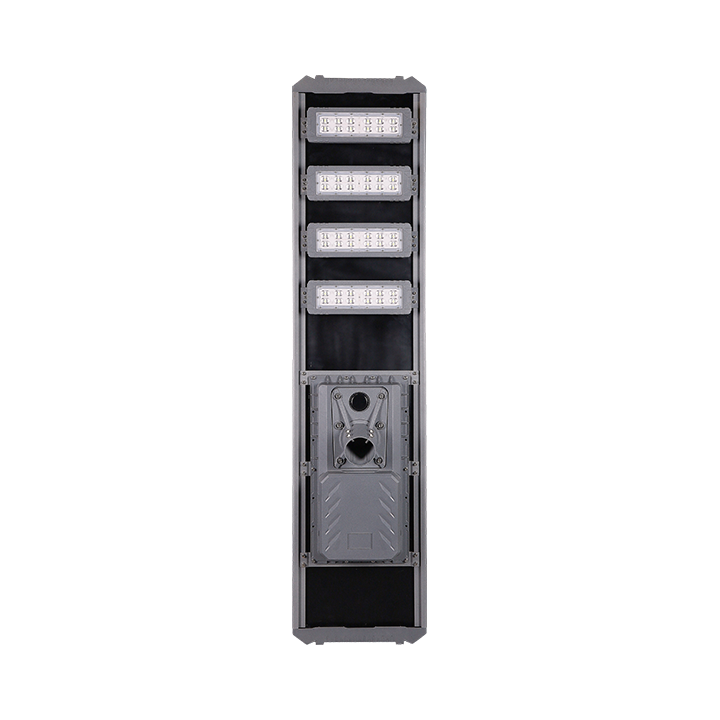

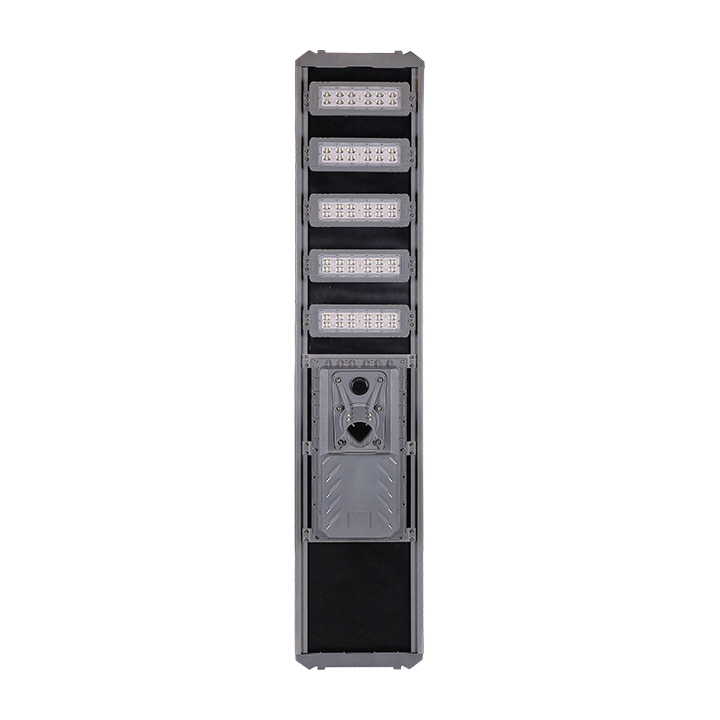

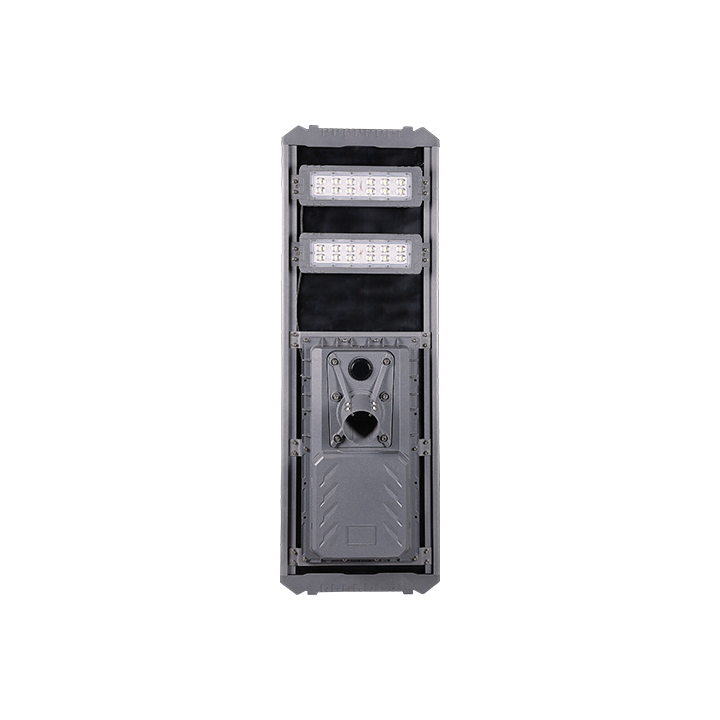

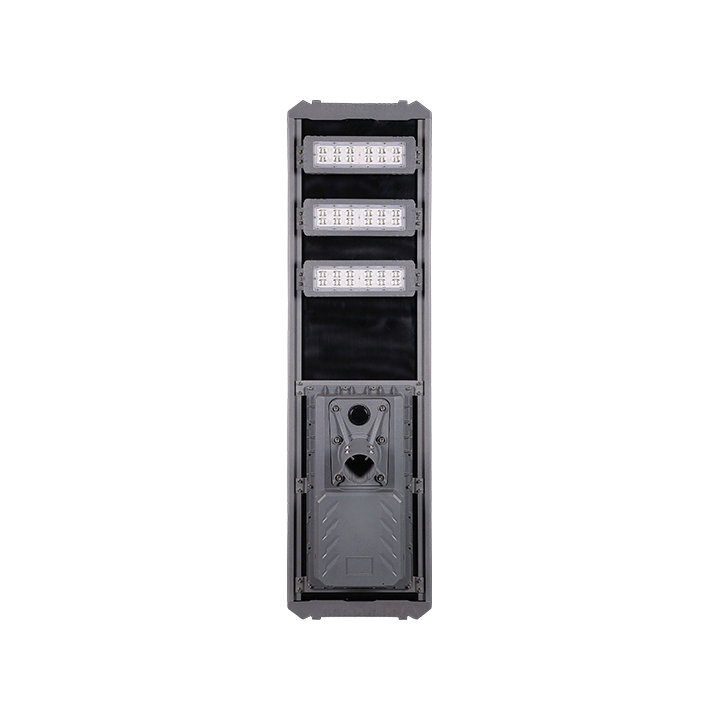

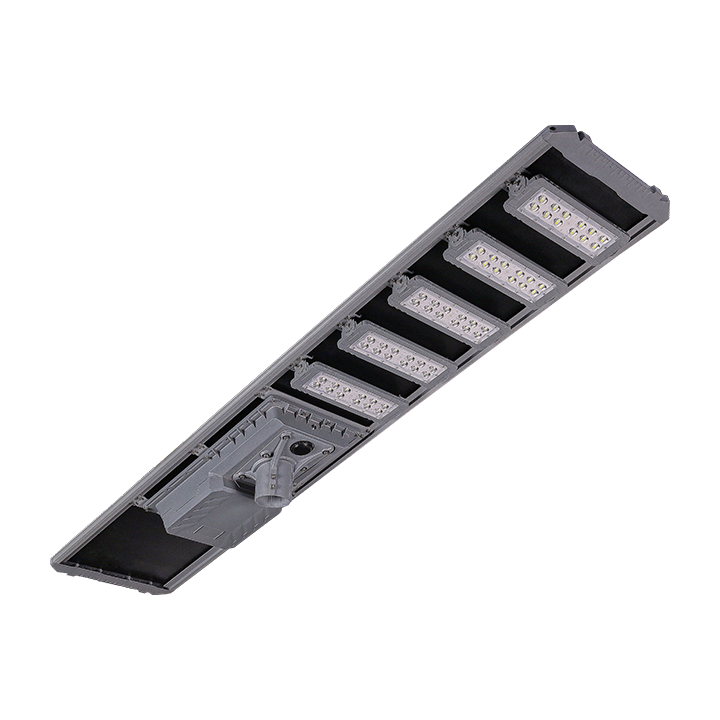

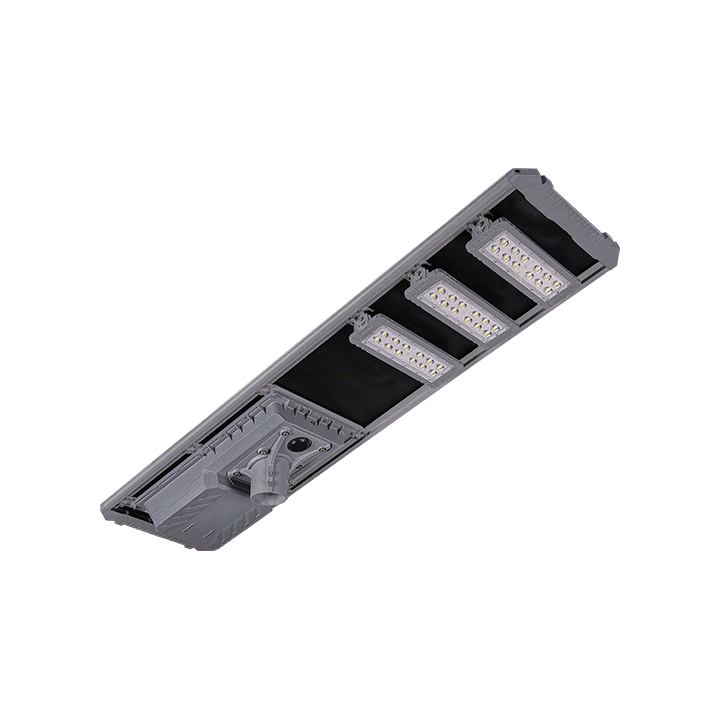

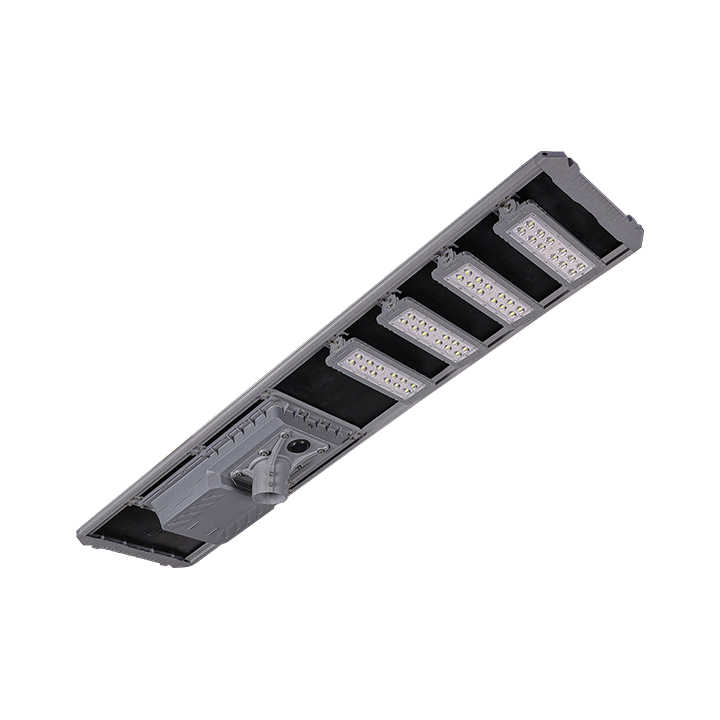

The lamp body is made of die-cast aluminum, which has good thermal conductivity, effectively transferring the LED heat to the lamp surface for dissipation. The single-crystal silicon solar panel has a higher conversion efficiency than polycrystalline silicon, with a service life of 5 years. The lithium iron phosphate battery has a long cycle life of 8 years and a wide operating temperature range. The LED light source uses 3030 chips with 50 beads per module, with the number of beads increasing with power: 40W uses 2 modules (100 beads), 50W uses 3 modules (150 beads), 60W uses 4 modules (200 beads), and 70W uses 5 modules (250 beads). The light efficiency is ≥150lm/W, with a light distribution angle of 70×145°, providing a wide illumination range. The color rendering index (Ra) is ≥70, and the color temperature can range from 3000K to 6000K. The controller is of the SRNE MPPT type, and its power and current are matched to the LED power. The protection rating is IP65, and the operating temperature is from -20°C to 60°C.

Surface Treatment
The surface of the lamp body is treated with electrostatic powder coating. The color can be selected from matte black or silver-gray, with strong corrosion resistance. The surface is sandblasted and cleaned before coating to ensure strong adhesion.

Dimensions and Specifications
Power: 40W, 50W, 60W, 70W.
Solar Panel Parameters: 40W with 80W, 50W with 100W, 60W with 120W, 70W with 145W.

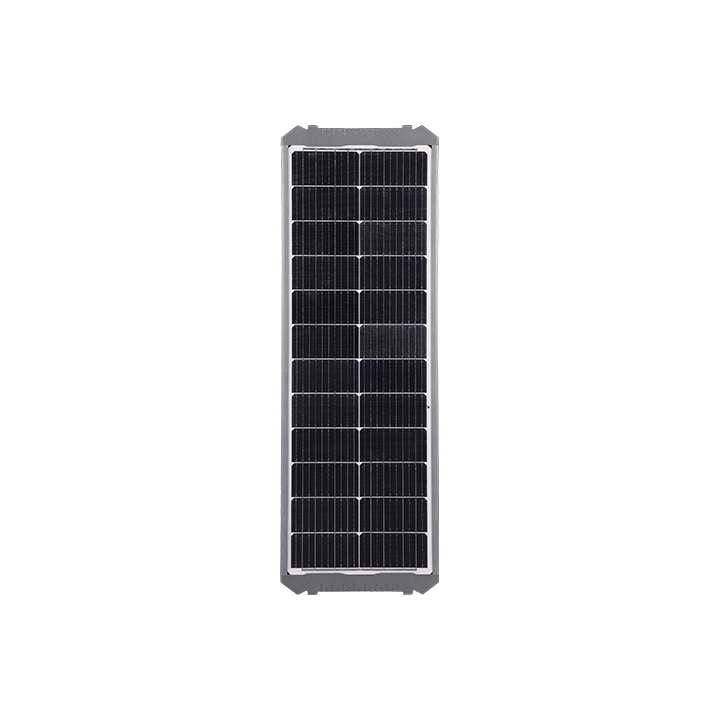

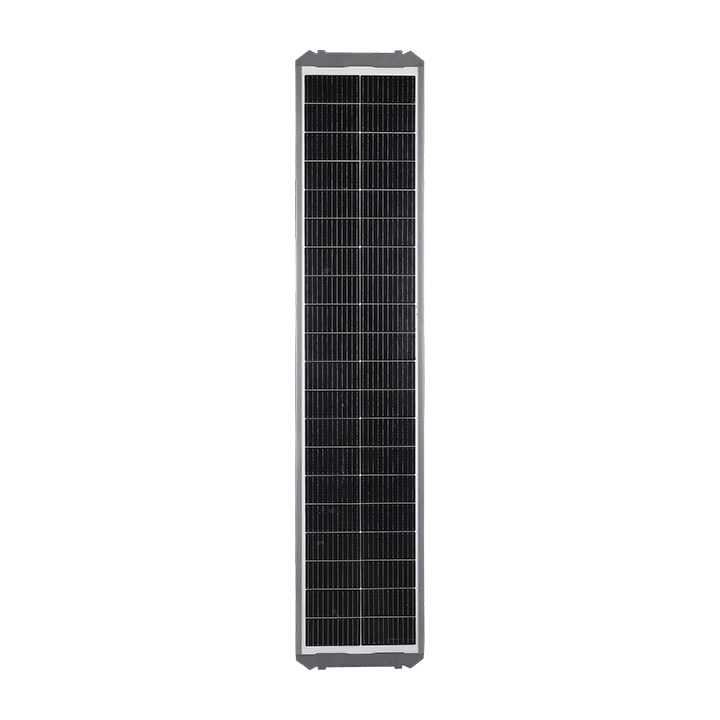

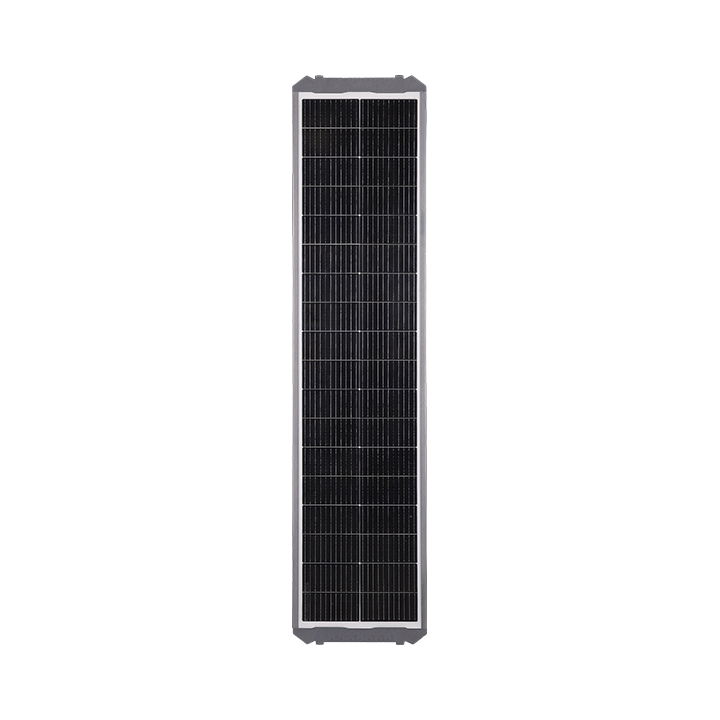

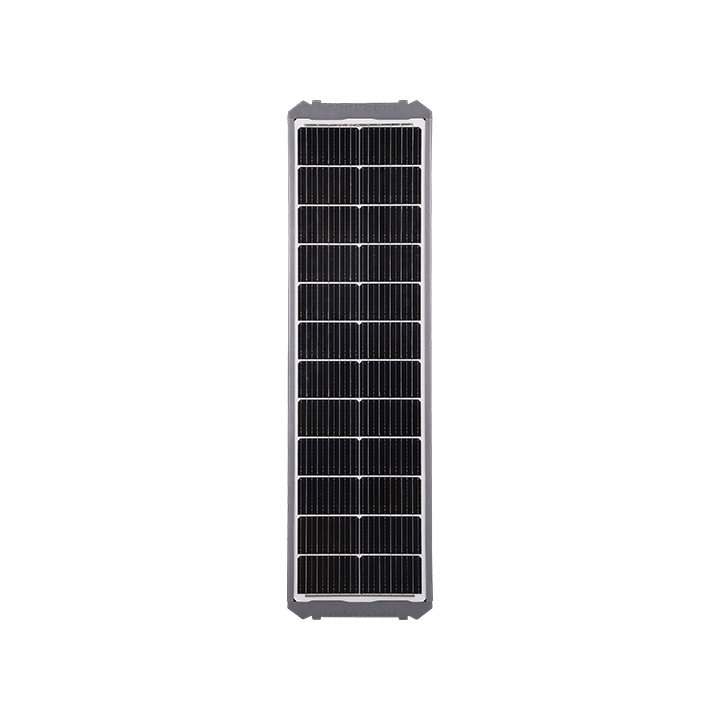

Solar Panel Size: 40W is 1157×398mm, 50W is 1431×398mm, 60W is 1710×398mm, 70W is 1950×398mm.
Battery Parameters: 40W with 12.8V/24Ah, 50W with 12.8V/30Ah, 60W with 12.8V/36Ah, 70W with 12.8V/48Ah.
LED Lumen Output: 40W is 6000Lm, 50W is 7500Lm, 60W is 9000Lm, 70W is 10500Lm.
Installation Height: 40W suitable for 5-7 meters, 50W suitable for 6-8 meters, 60W suitable for 7-9 meters, 70W suitable for 8-10 meters.
Charging Time: 9-10 hours.

Installation Configuration
The solar panel module angle is manually adjustable to accommodate different latitudes. It can be side-mounted or top-mounted on the light pole. Light control + time control mode, with the following lighting schedule: First hour: 100% brightnes、sSecond to third hour: 80% brightness、Fourth to fifth hour: 70% brightness、Sixth to twelfth hour: 30% brightness、It supports one rainy day backup.

Application Scenarios
Suitable for city roads and rural road lighting in regions with different latitudes, park and campus lighting, lighting in remote areas without electricity, parking lots, and public squares, and areas with limited sunlight resources.
