Materials and Structure

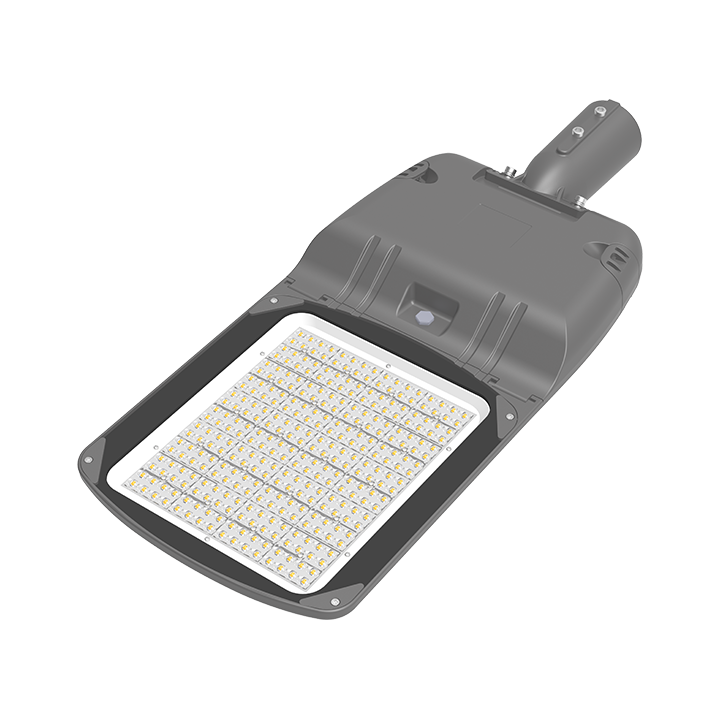

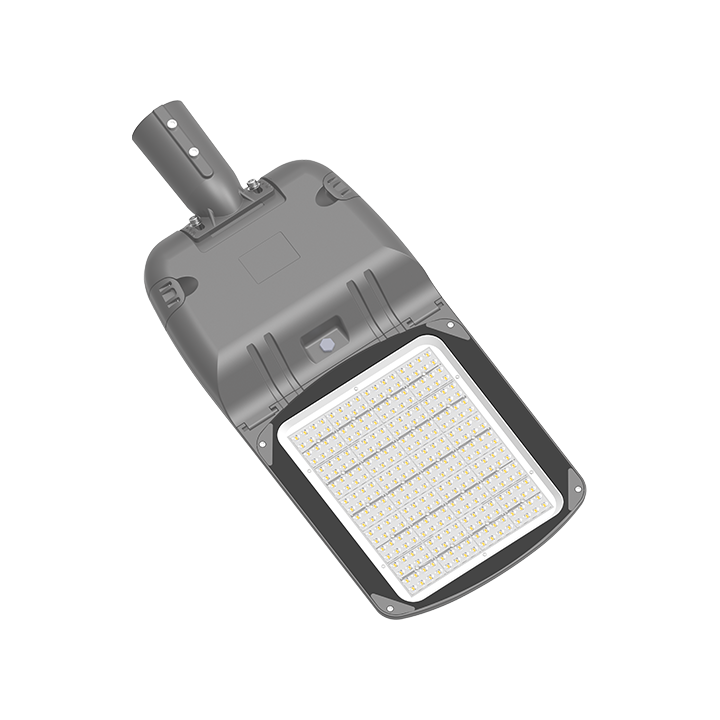

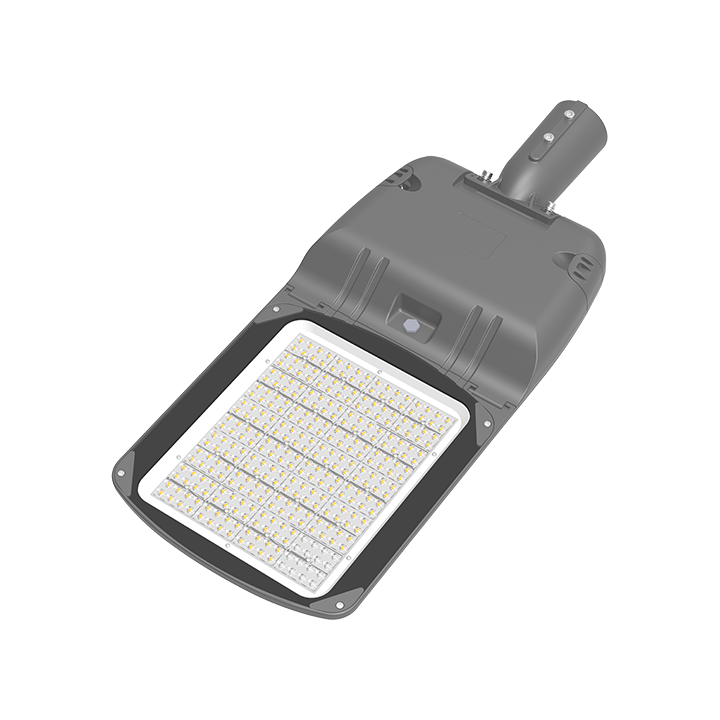

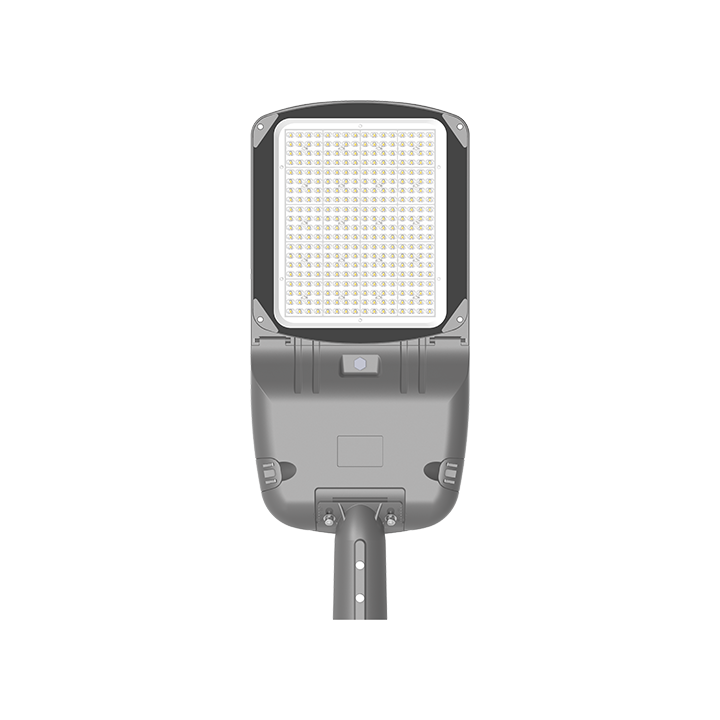

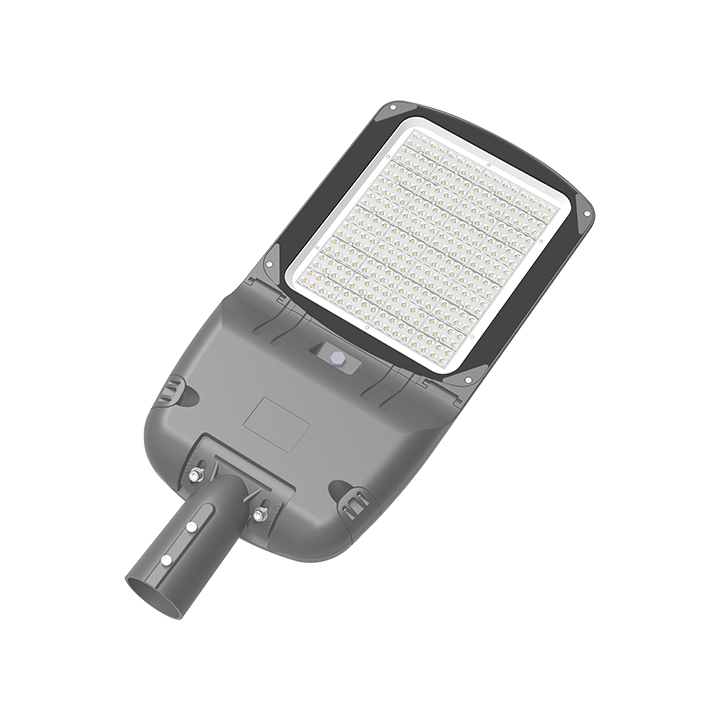

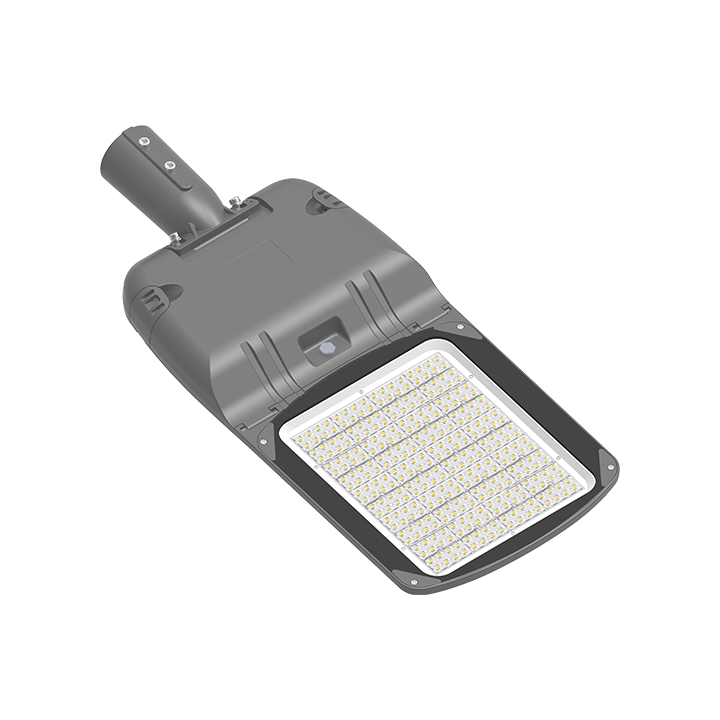

Made from an integrated die-casting aluminum housing with a honeycomb heat dissipation structure.
Light efficacy: 130-160 lm/W, selectable beam angles of 60°, 90°, or 120°.
IP67 protection rating.

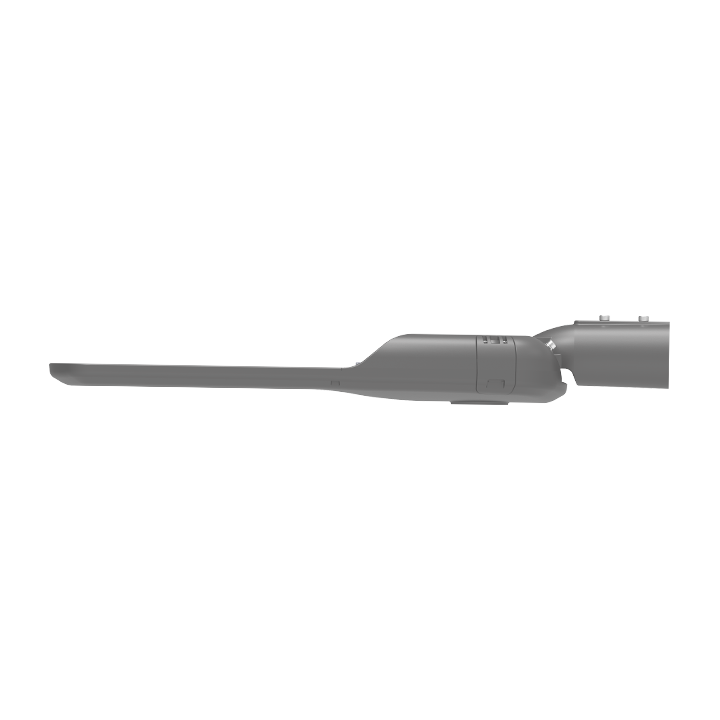

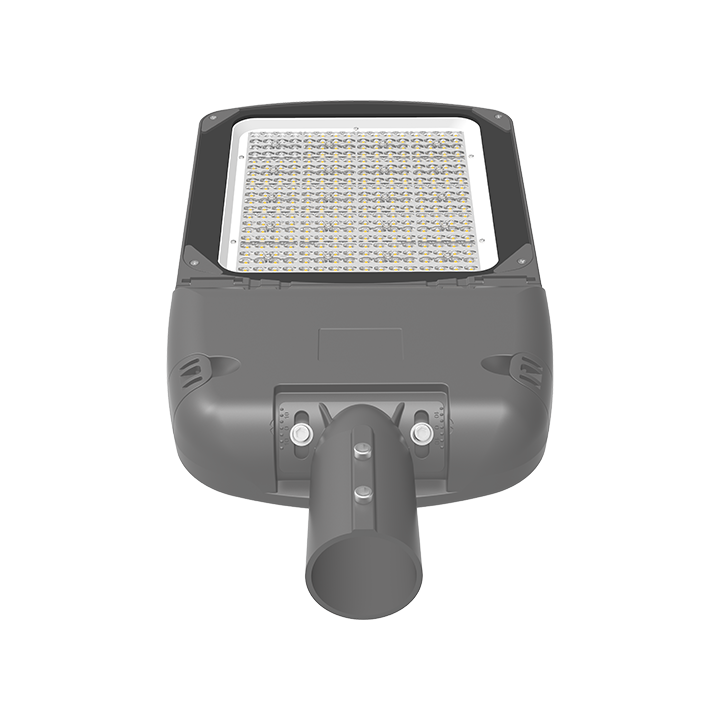

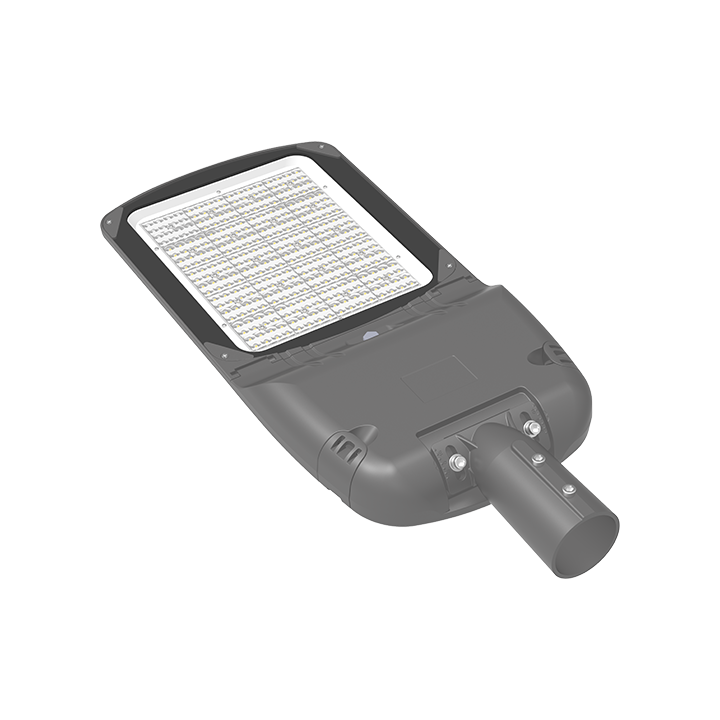

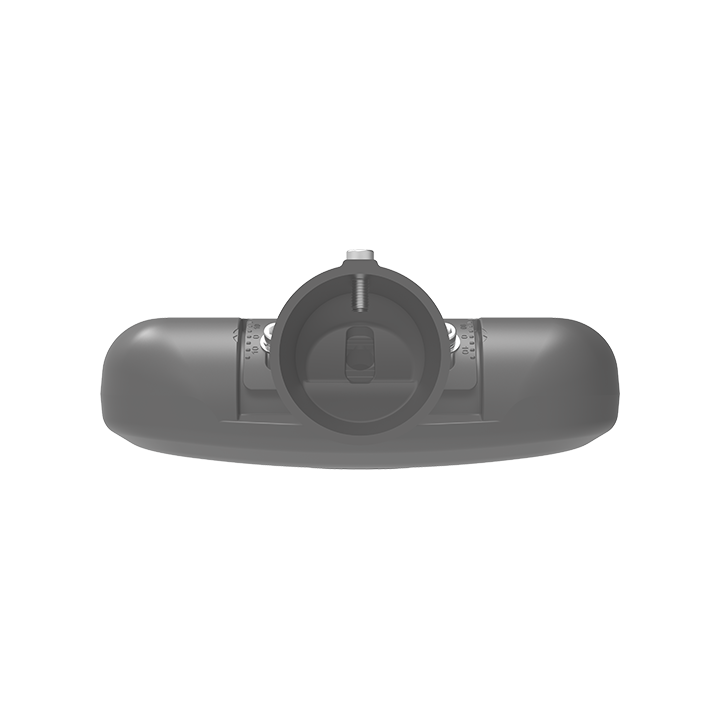

Angled mounting bracket, compatible with various pole tilt angles.
Operating temperature: -40°C to 50°C, lifespan ≥50,000 hours.
Surface Treatment
Sandblasting and electrostatic powder coating, with colors customizable as required.
Size Specifications
Power: 50W, 100W, 150W, 200W, 300W.
Voltage: AC100-277V, PF > 0.95, Color Temperature: 3000-6000K.
Compatible with poles with diameters of 50mm, or 60mm.
Installation Configuration
Angled mounting bracket, adaptable to various tilted poles.
Optional 0-10V dimming, time control, and light sensing functions.
Application Scenarios
Curved road and ramp lighting with angled poles, bridge and tunnel entrance lighting, hillside roads and mountain highways, landscape roads with special pole designs, and old pole renovation projects.
| Model | THSL06-50W | THSL06-100W | THSL06-150W | THSL06-200W | THSL06-300W |
| Power | 50W | 100W | 150W | 200W | 300W |
| Voltage | AC100-277V | ||||
| Frequency Range | 50/60Hz | ||||
| PF | >0.95 | ||||
| CCT | 3000-6000K | ||||
| Lamp Brand | 3030/5050 | ||||
| IP Rating | IP67 | ||||
| Colour Rendering Index | Ra>70 | ||||
| Luminous Efficiency | 130-160lm/W | ||||
| Working temperature | -40°C~50°C | ||||
| Life | ≥50000H | ||||
