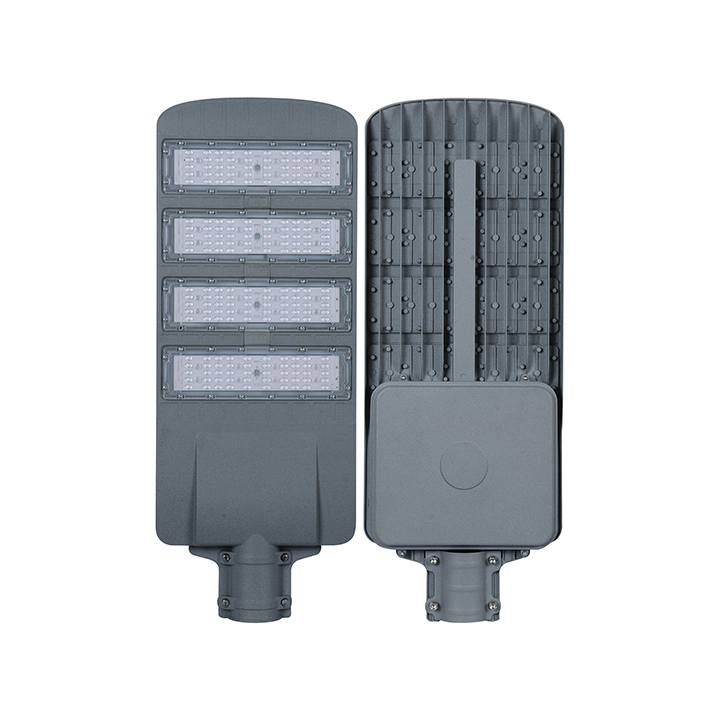

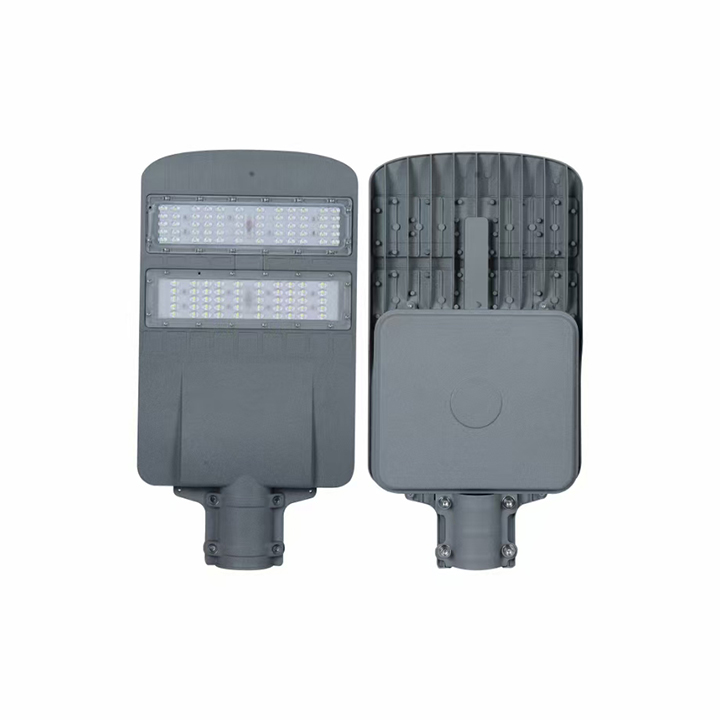

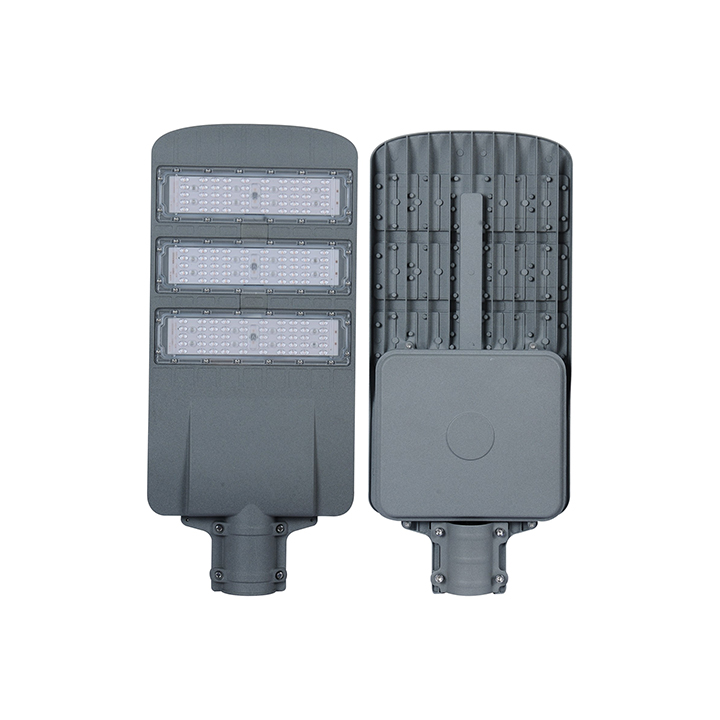

Die-Casting Aluminum Basic LED Street Light IP65

Die-Casting Aluminum Basic LED Street Light IP65 is designed for projects with a controlled budget and clear requirements for basic lighting. Unlike high-end smart streetlights, this product features a simple and reliable structure, without complex dimming or control functions, offering a cost-effective solution. The product uses a die-casting aluminum housing with a PC lens, light efficacy ≥110-130 lm/W, and color temperature between 3000-6000K. It has an IP65 protection rating, able to withstand water spray from any direction. This product is suitable for conventional road lighting projects, especially in developing countries and large-scale replacement projects.

Get A Quote

PREV：Modular Die-Casting Aluminum Pluggable LED Street Light IP67
NEXT：Die-Casting Aluminum Angled Mounting LED Street Light IP67

Product Details

Materials and Structure
Made from die-casting aluminum housing with a PC lens.
Light efficacy ≥110-130 lm/W, color temperature 3000-6000K.
IP65 protection rating.
Internally equipped with a high thermal conductivity aluminum substrate.
Drive unit uses Haoming or equivalent brands, with PF ≥0.95.

Surface Treatment
Electrostatic powder coating, standard color in matte black or silver gray.

Size Specifications
Power: 50W, 100W, 150W, 200W, 250W.
Voltage: AC100-277V, frequency 50Hz, PF ≥0.95, IP65 protection rating, operating temperature -40°C to 50°C, lifespan ≥50,000 hours.

Installation Configuration
Side mount or top mount, compatible with standard light poles.
No dimming function, purely basic lighting configuration.

Application Scenarios
City secondary road and branch road lighting, residential area and rural road lighting, parking lot and sidewalk lighting, school and hospital campus roads, and municipal road projects in developing countries.

Model	THSL07-50W	THSL07-100W	THSL07-150W	THSL07-200W	THSL07-250W
Power	50W	100W	150W	200W	250W
Voltage	AC100-277V
Frequency Range	50Hz
PF	≥0.95
CCT	3000-6000K
Lamp Brand	3030/5050
IP Rating	IP65
Colour Rendering Index	≥70
Luminous Efficiency	≥110-130lm/W
Working temperature	-40°C~50°C
Life 寿命	≥50000H
