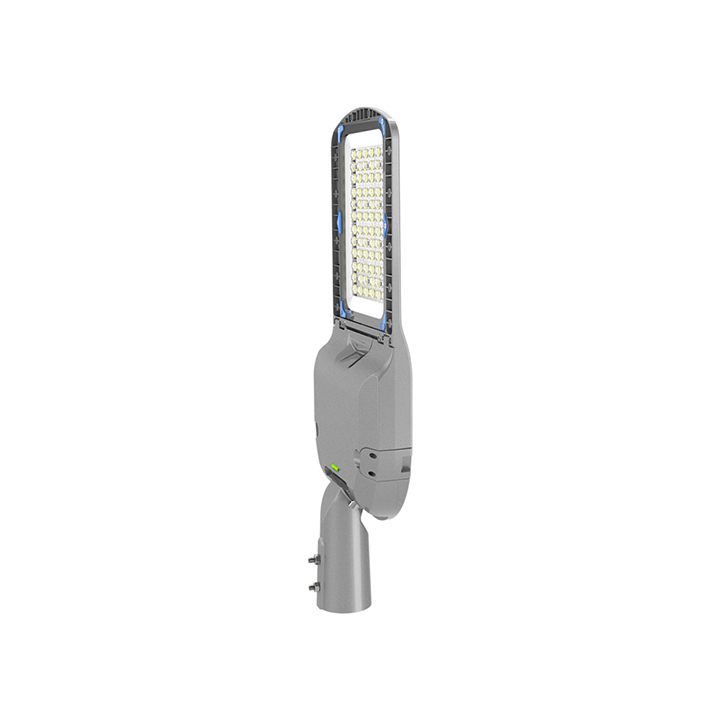

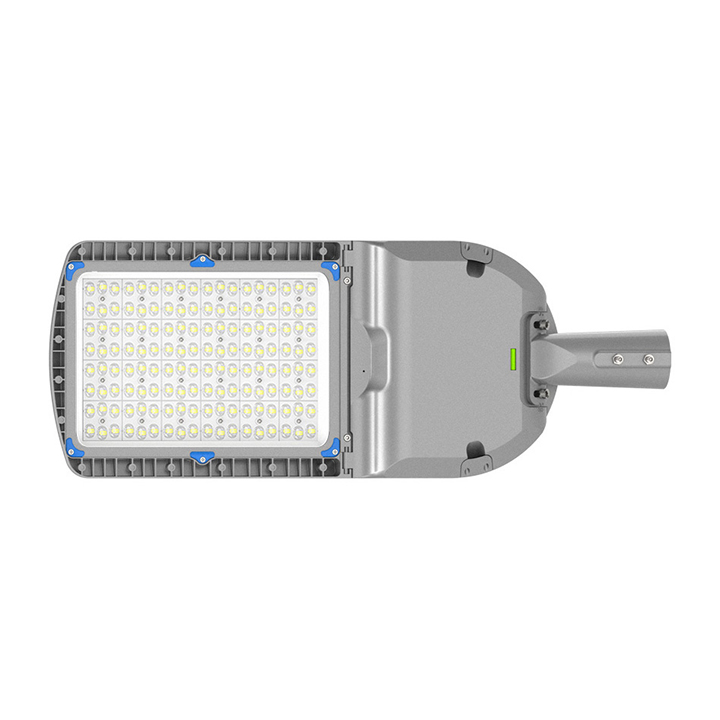

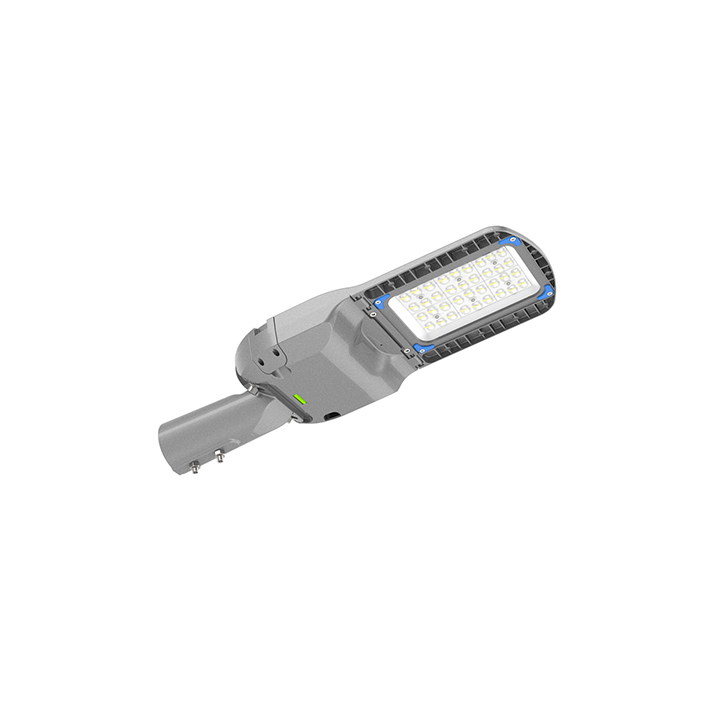

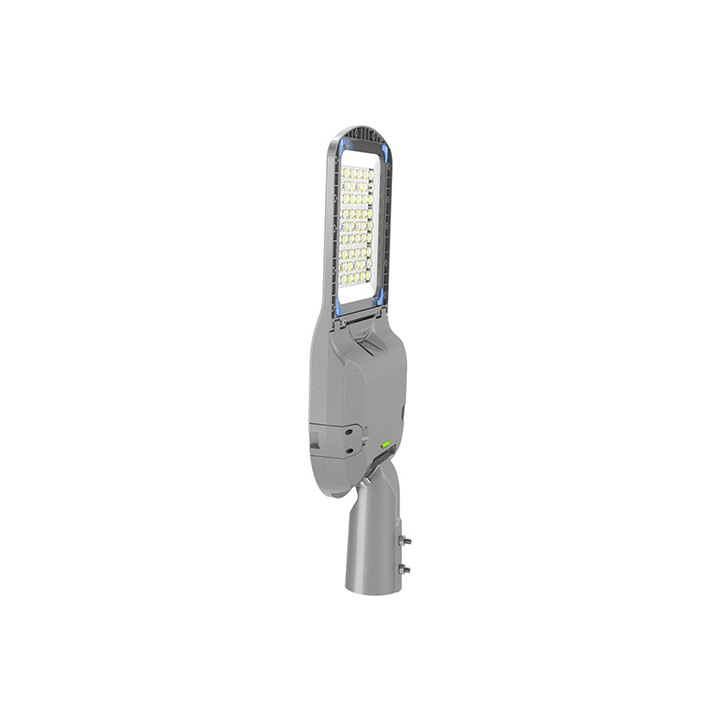

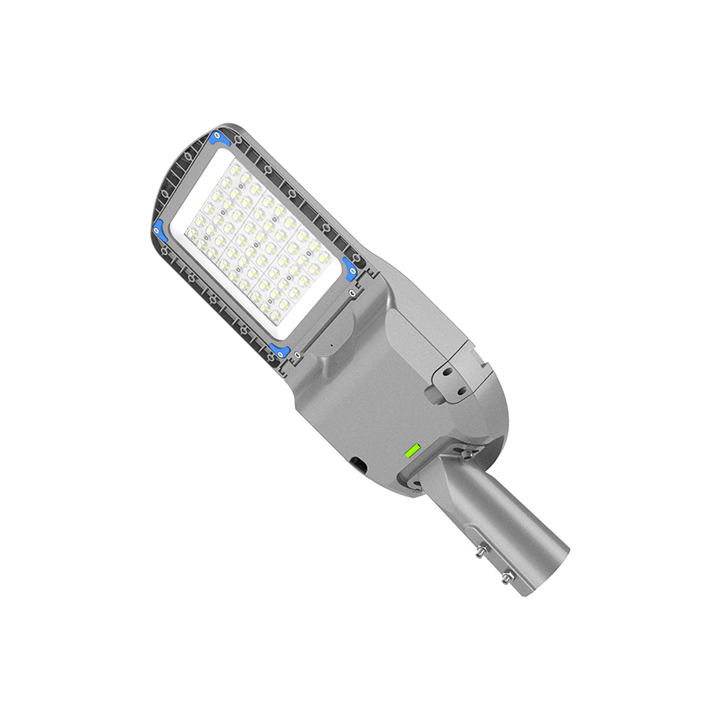

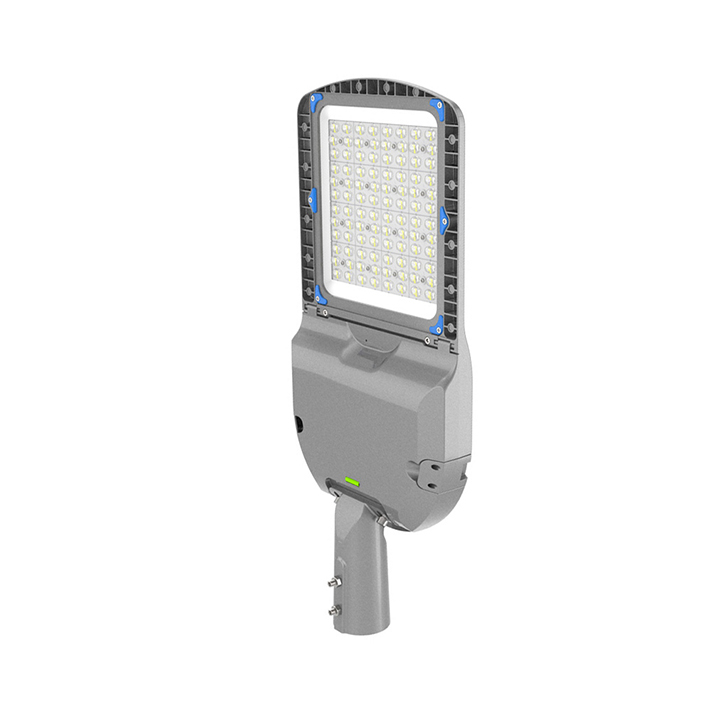

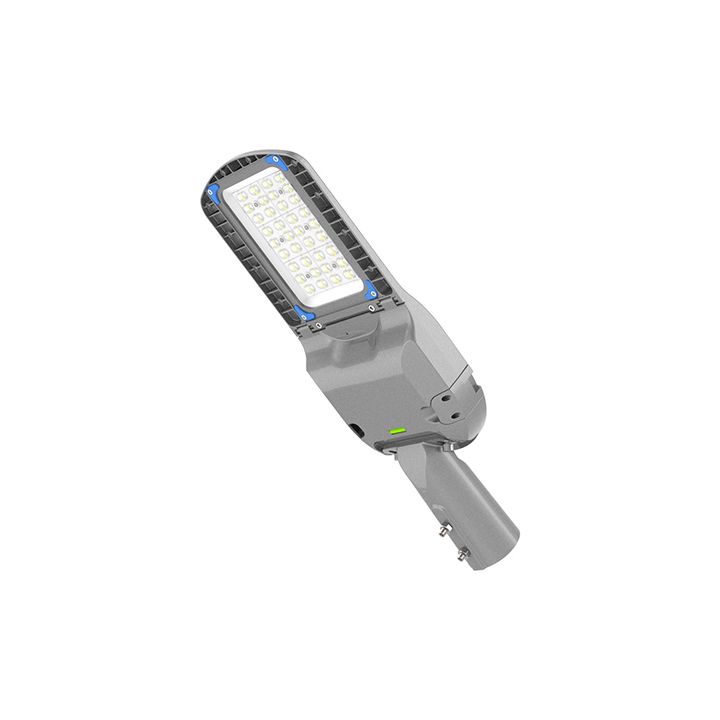

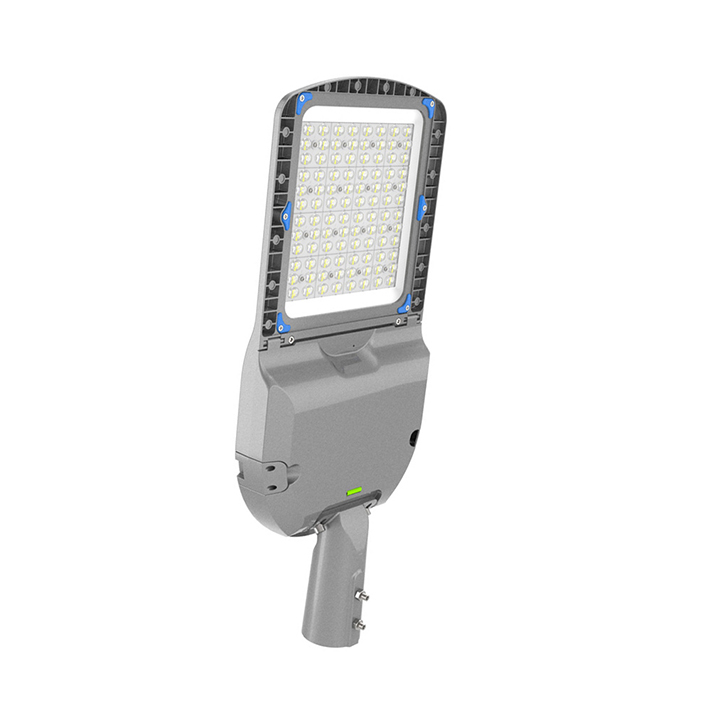

Materials and Structure

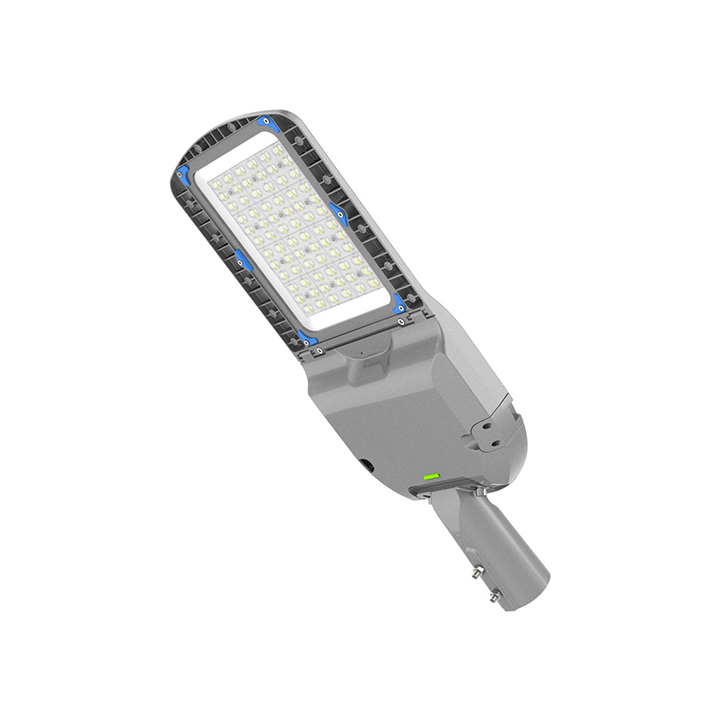

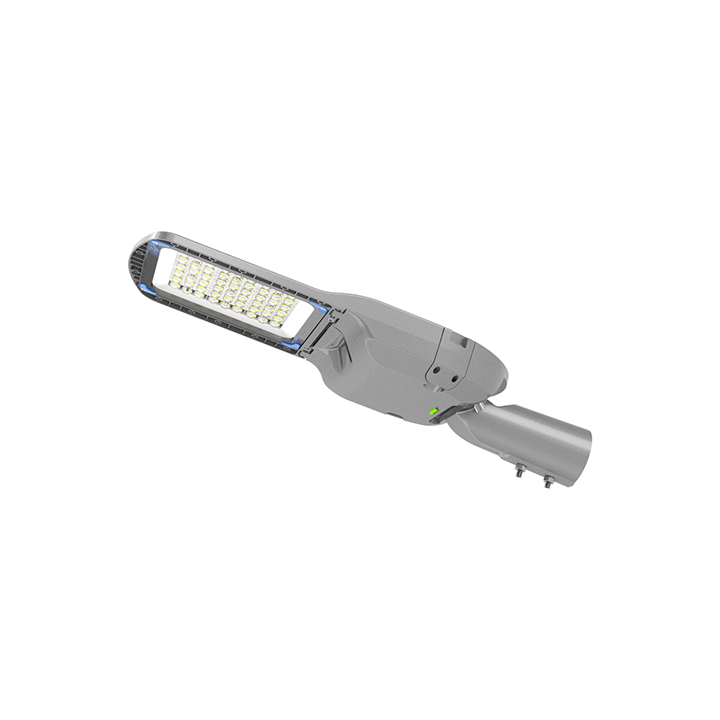

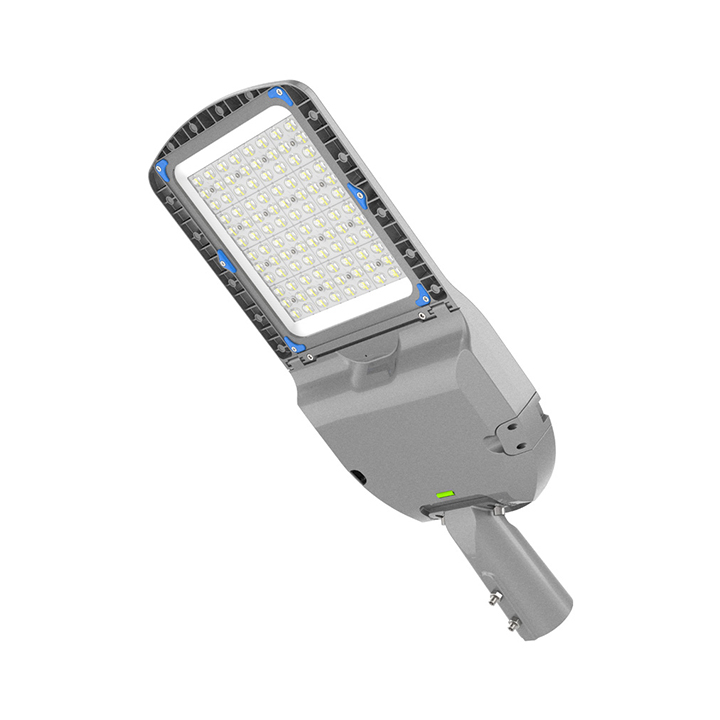

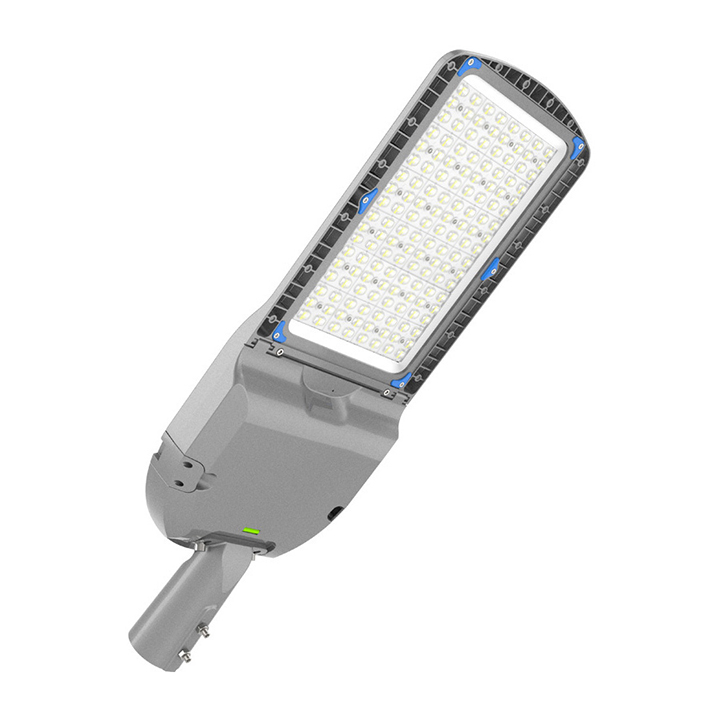

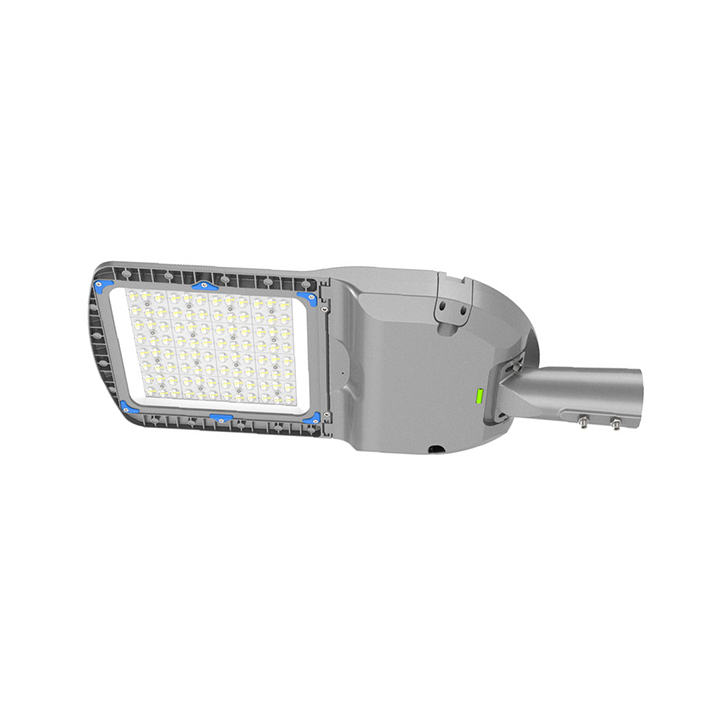

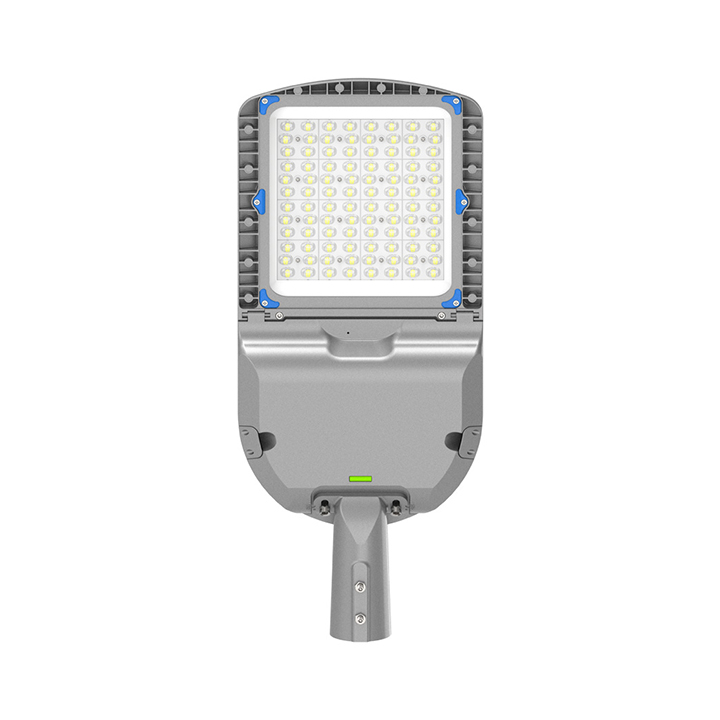

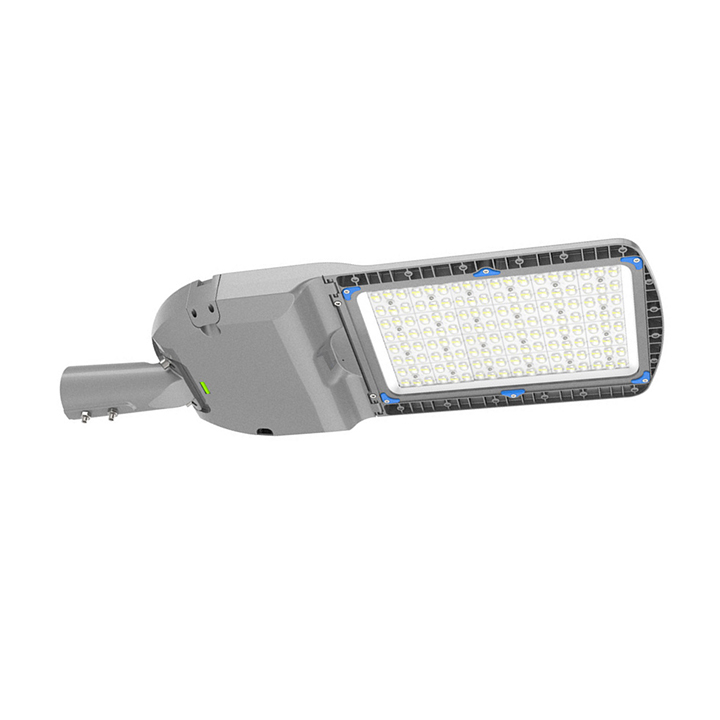

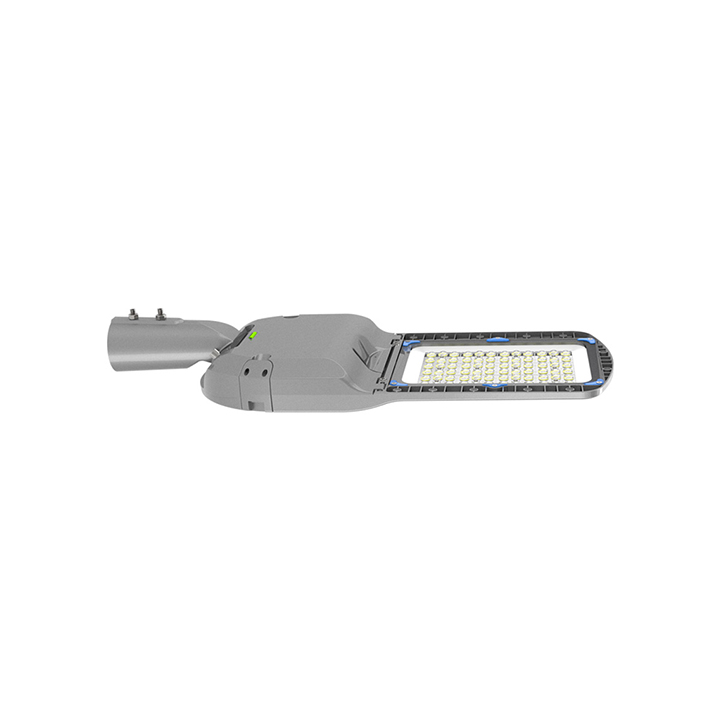

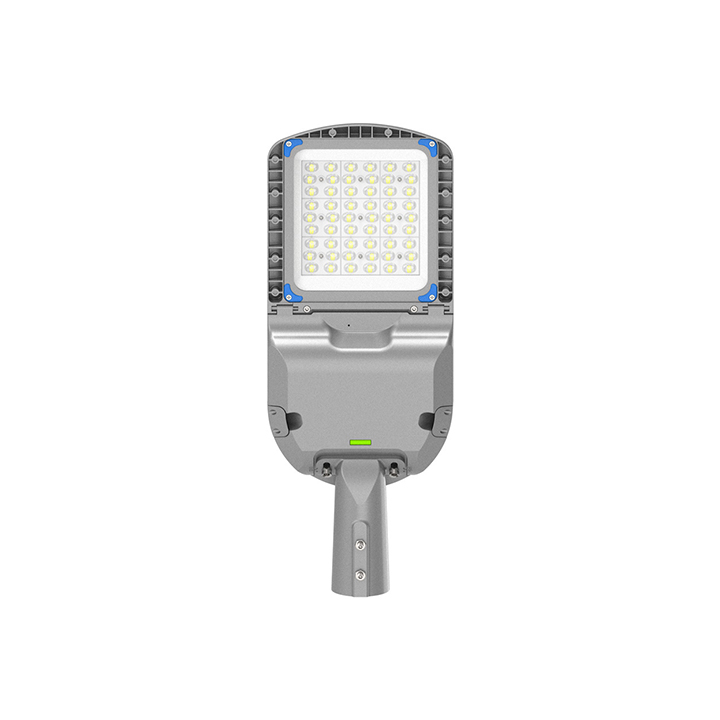

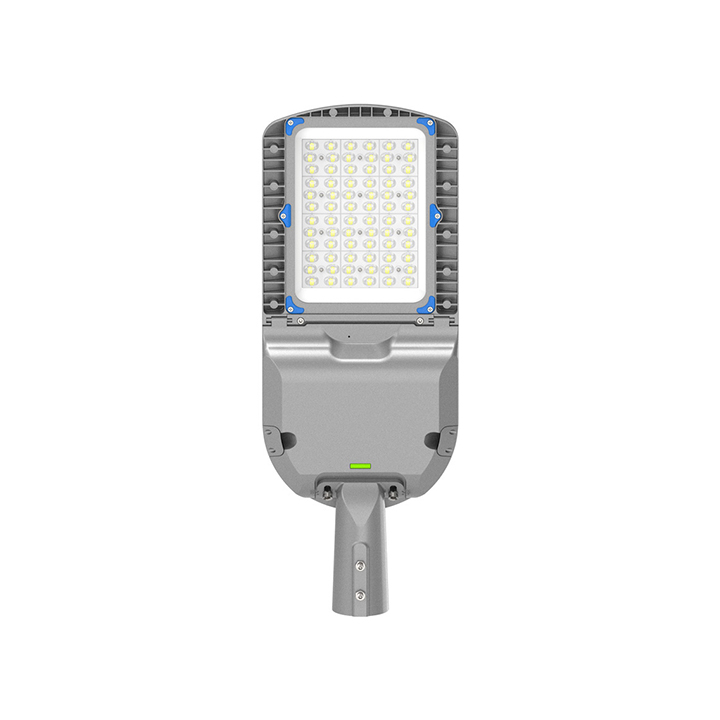

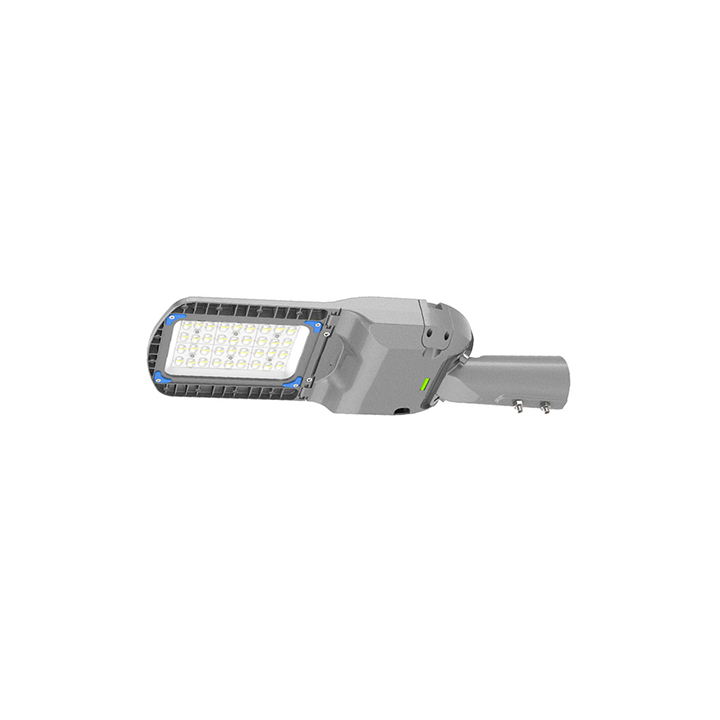

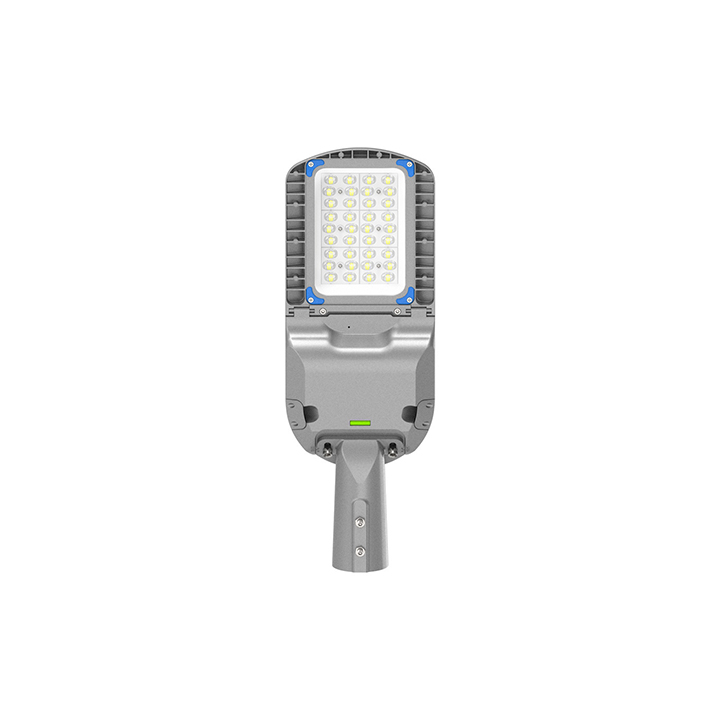

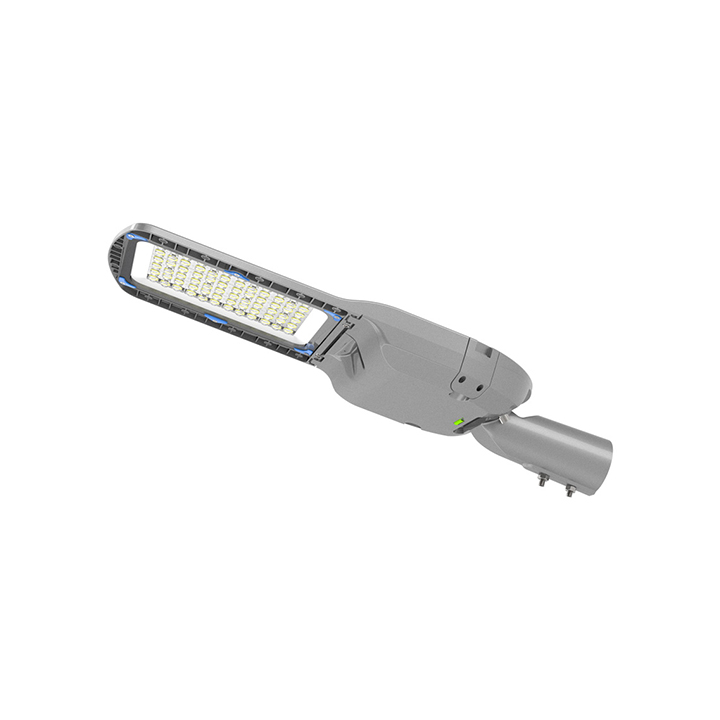

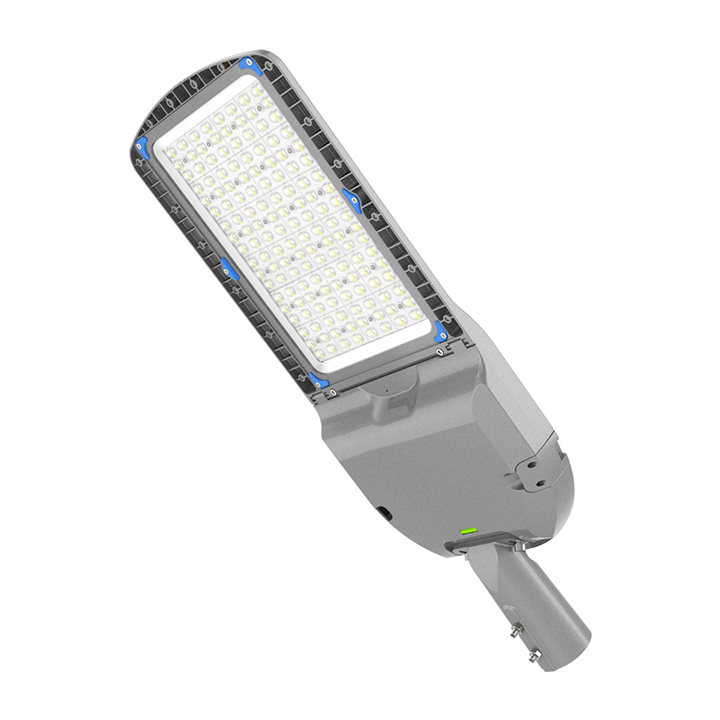

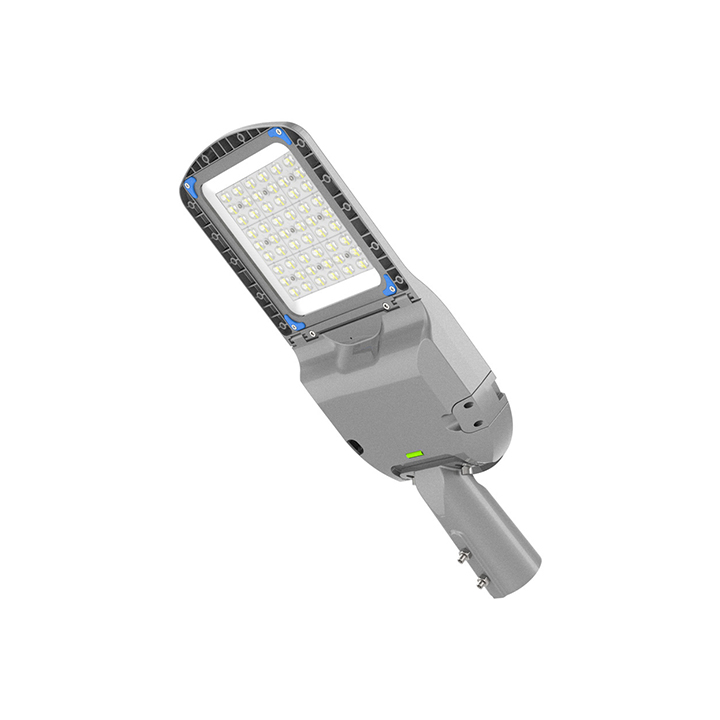

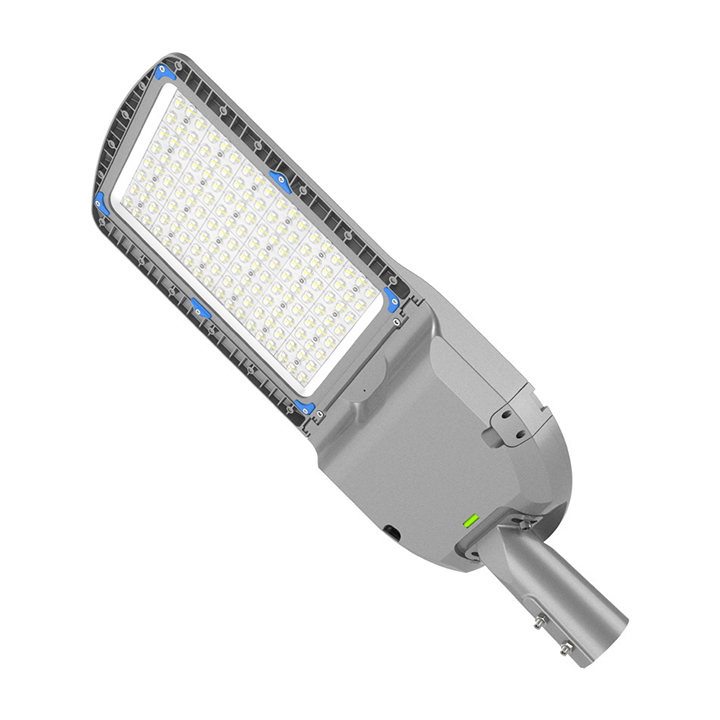

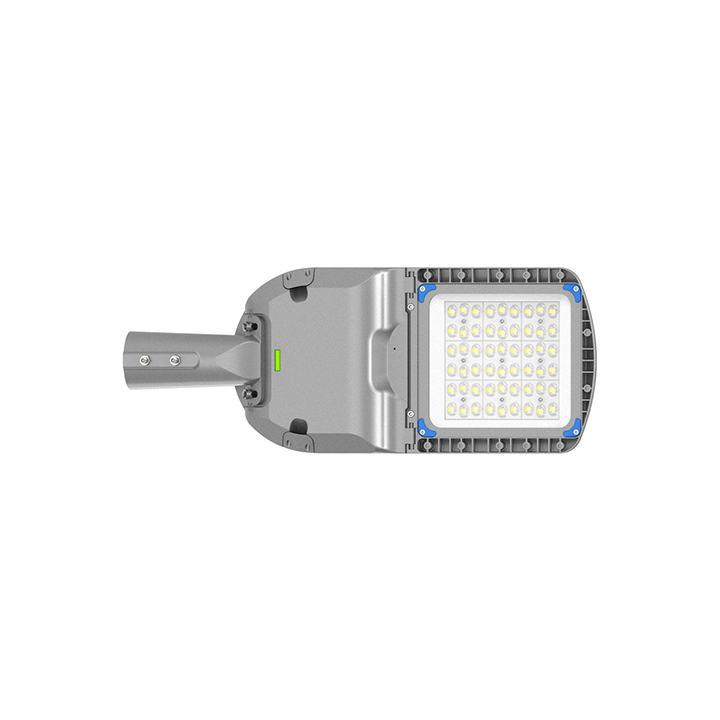

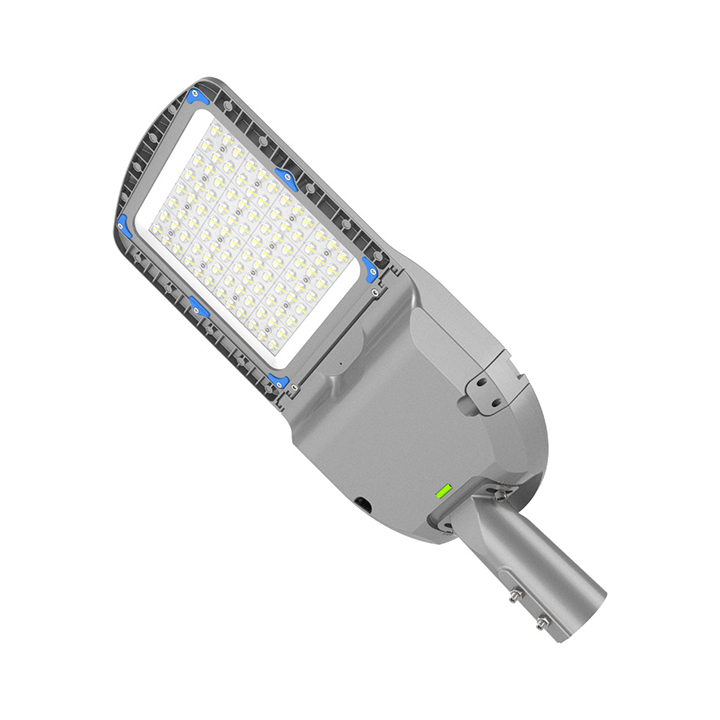

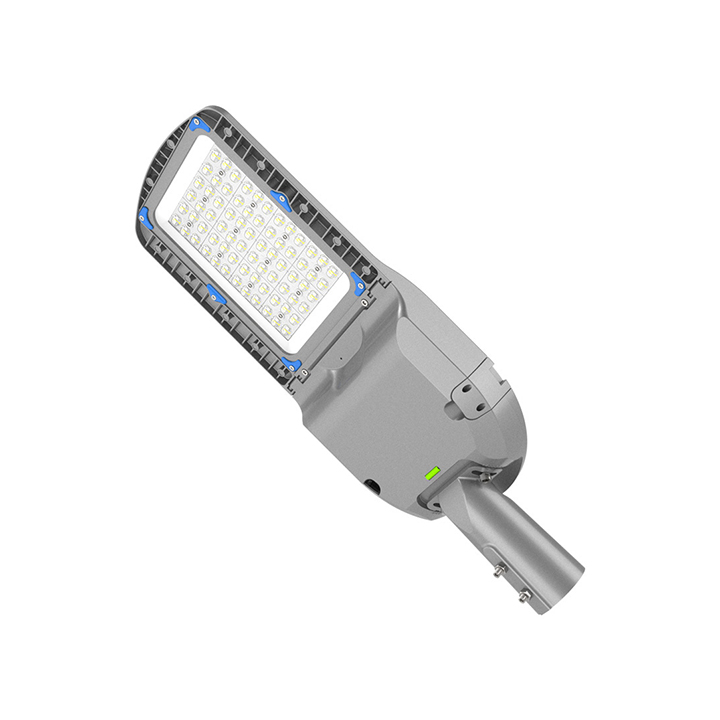

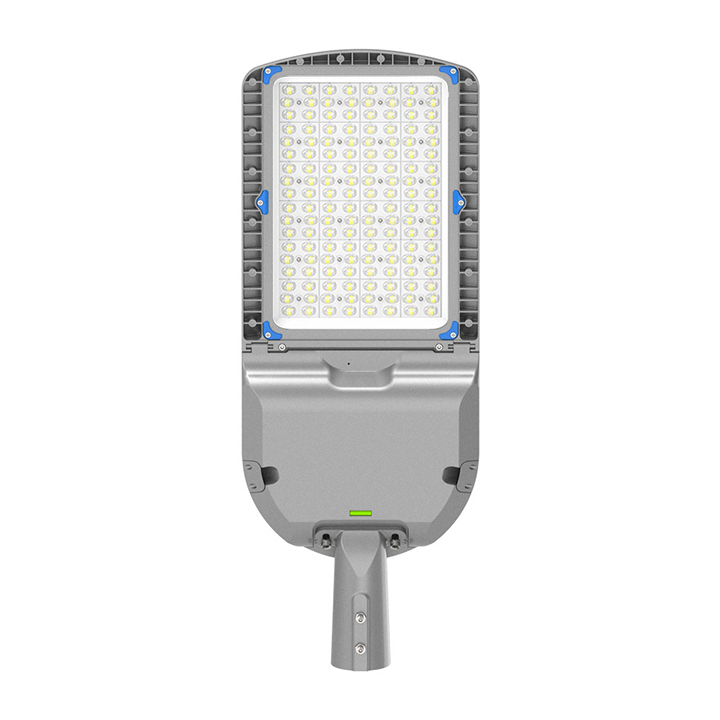

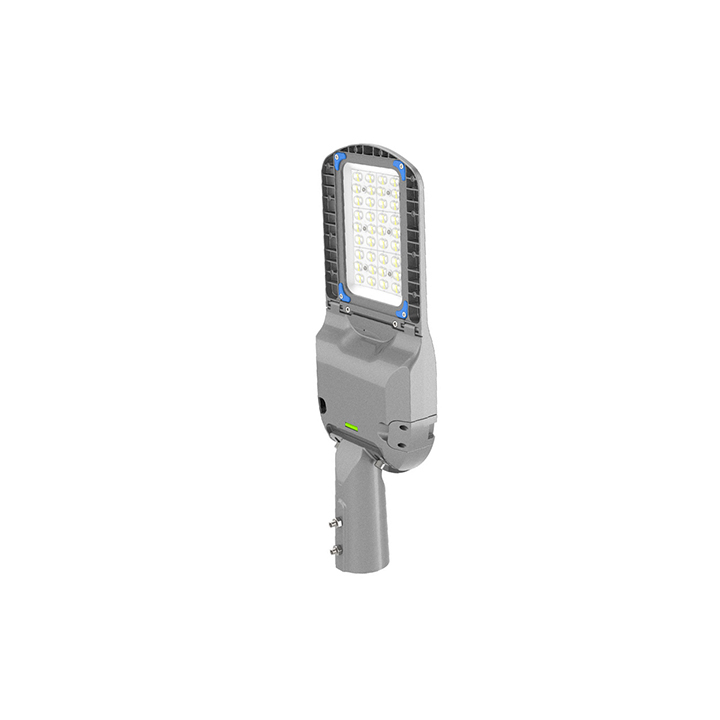

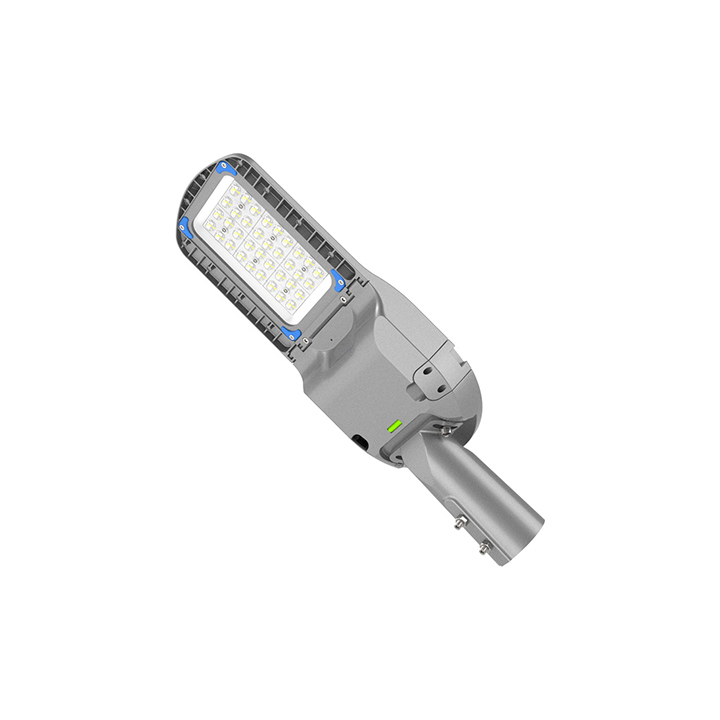

Integrated die-casting aluminum housing with a flat honeycomb heat dissipation structure.
Snap-on installation structure for tool-free disassembly.
Professional anti-glare lens with selectable beam angles of 60°, 90°, 120°, T2M, T3M, or T4M
Light efficacy of 130-170 lm/W available.
Tempered glass panel with no-glue fixation, providing strong weather resistance.
Built-in level to assist with installation calibration.
Surface Treatment
Electrostatic powder coating for high corrosion resistance.
Size Specifications
Power: 50W, 80W, 100W, 150W, 200W, 240W.
Voltage: AC100-277V, PF > 0.95, Color Temperature: 3000-6000K, IP66 Protection Rating, Lifespan: ≥50,000 hours.
Compatible with poles with diameters of 50mm, or 60mm.
Installation Configuration
Snap-on fast installation structure for tool-free setup and maintenance.
Side mount or top mount.
0-10V dimming, time control, light sensing, and IoT smart control available.
Application Scenarios
City road and industrial park lighting, roads in remote areas requiring frequent maintenance, logistics parks and parking lots, port and dock lighting, municipal expressways, and elevated bridge lighting.
| Model | THSL05-50W | THSL05-100W | THSL05-150W | THSL05-250W | THSL05-.300W |
| Power | 50W | 100W | 150W | 250W | 300W |
| Voltage | AC100-277V | ||||
| Frequency Range | 50/60Hz | ||||
| PF | >0.95 | ||||
| CCT | 3000-6000K | ||||
| Lamp Brand | 3030/5050 | ||||
| IP Rating | IP66 | ||||
| Colour Rendering Index | Ra>70 | ||||
| Beam Angle | 60°/90°/120°/T2M/T3M/T4M | ||||
| LED Driver | Inventronics/MeanWell/Philips/MOSO | ||||
| Raw Material | Patent private mould, integrated dia-casting AL | ||||
| Luminous Efficiency | 130-170lm/W | ||||
| Working temperature | -40°C~50°C | ||||
| Life | ≥50000H | ||||
