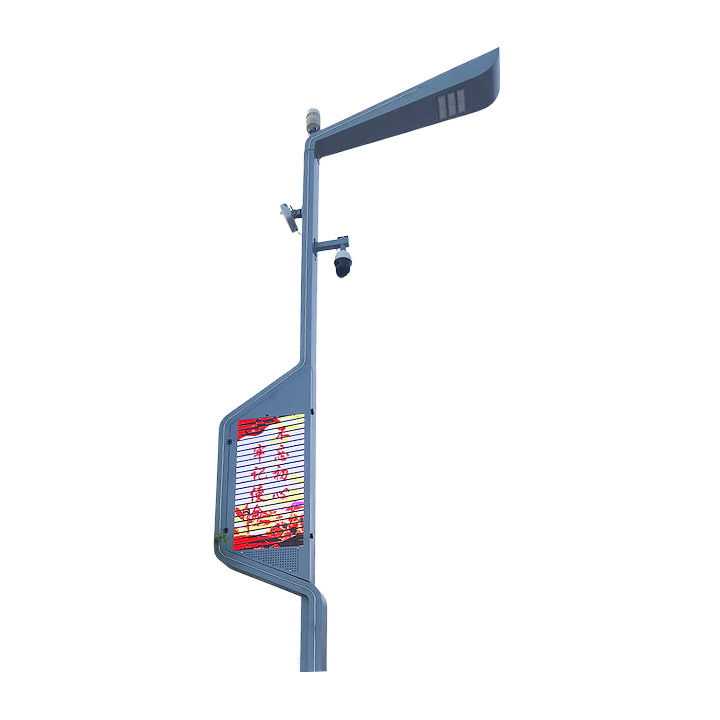

Octagonal Hot-Dip Galvanized Multi-Functional Steel Smart Light Pole

Materials and Structure
Made of Q355B steel, which has higher strength than Q235, suitable for outdoor structural components that need to support multiple devices.
The octagonal pole design features a three-segment main pole: upper segment 100mm x 6mm x 7000mm, lower segment 100mm x 6mm x 6000mm, top connecting segment Φ165 x 4mm x 3000mm.
Lamp arm diameter: 60mm, with an inclination angle of 12° to 15°, suitable for standard streetlight fixtures.

Surface Treatment
The pole body and metal accessories are treated with hot-dip galvanization to enhance corrosion resistance.
The external surface is coated with an electrostatic powder coating for additional protection and to maintain a uniform appearance.

Size Specifications
Main pole upper segment: 100mm x 6mm x 7000mm.
Main pole lower segment: 100mm x 6mm x 6000mm.
Top connecting segment: Φ165 x 4mm x 3000mm.
Flange specifications: 30mm x Φ650mm.
Lamp arm diameter: 60mm, with an inclination angle of 12° to 15°.

Installation Configuration
Ground cage reinforcement: 8 x M30 x 1800mm.
Flange base design, suitable for concrete foundation installation.

Application Scenarios

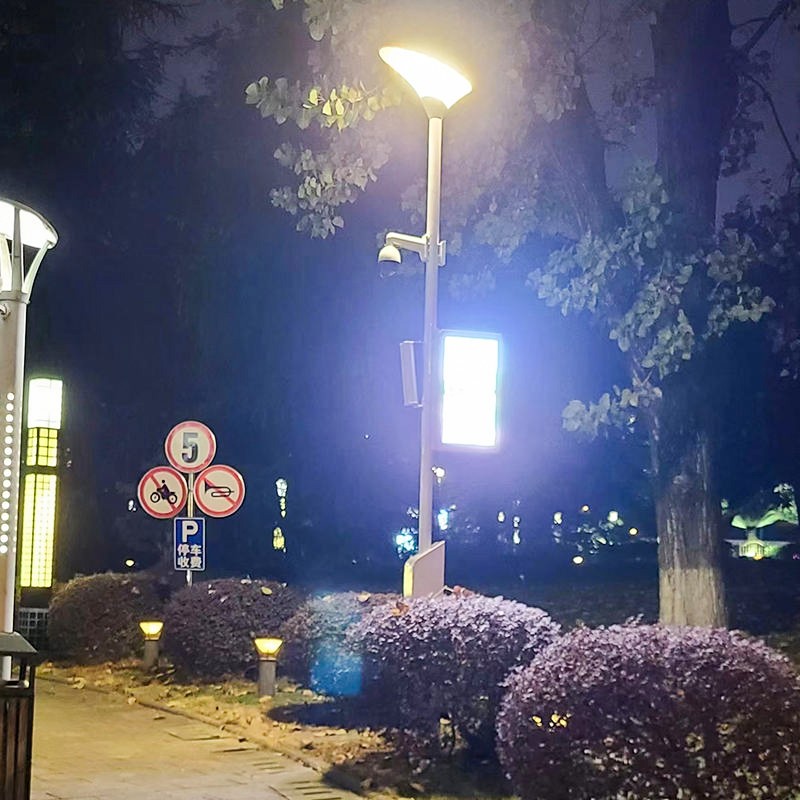

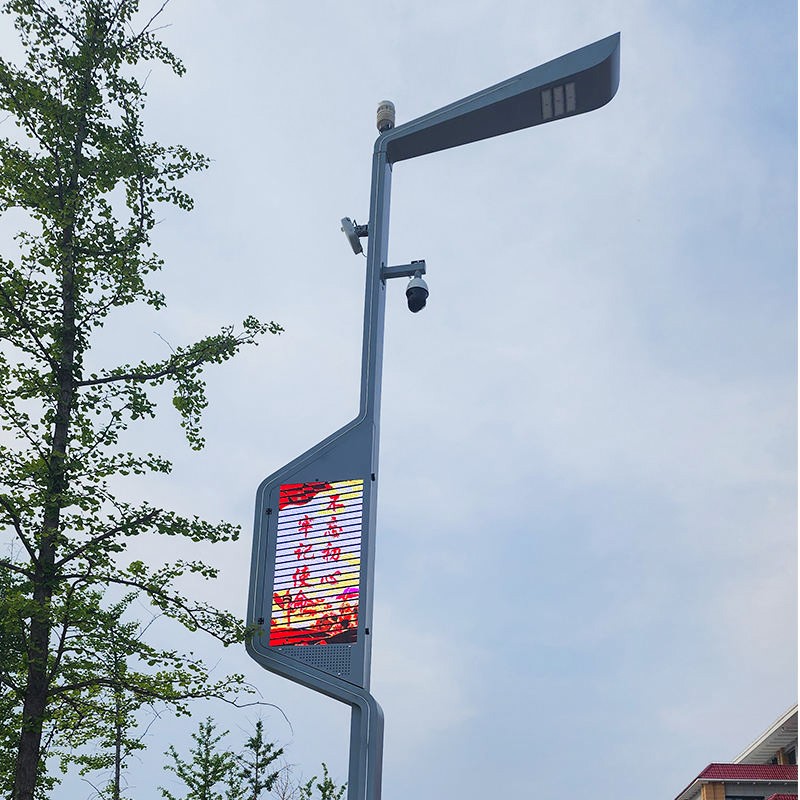

Urban smart roads: Integration of lighting, monitoring, traffic signals, 5G base stations, and information display screens.
Traffic hubs: Integration of poles around airports, train stations, and road junctions.
Parks and commercial districts: Multi-device pole integration to reduce pole numbers.
Public infrastructure: Municipal roads, squares, and locations requiring efficient pole management.
