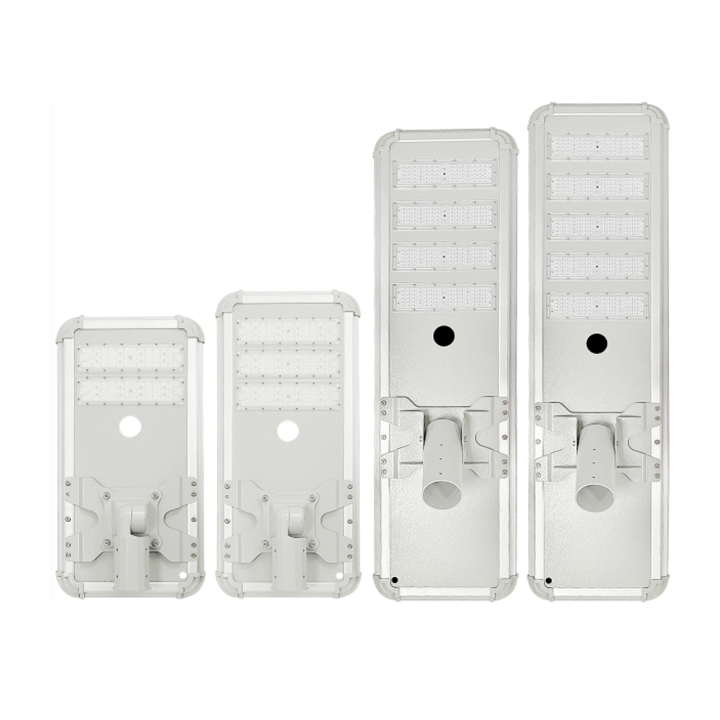

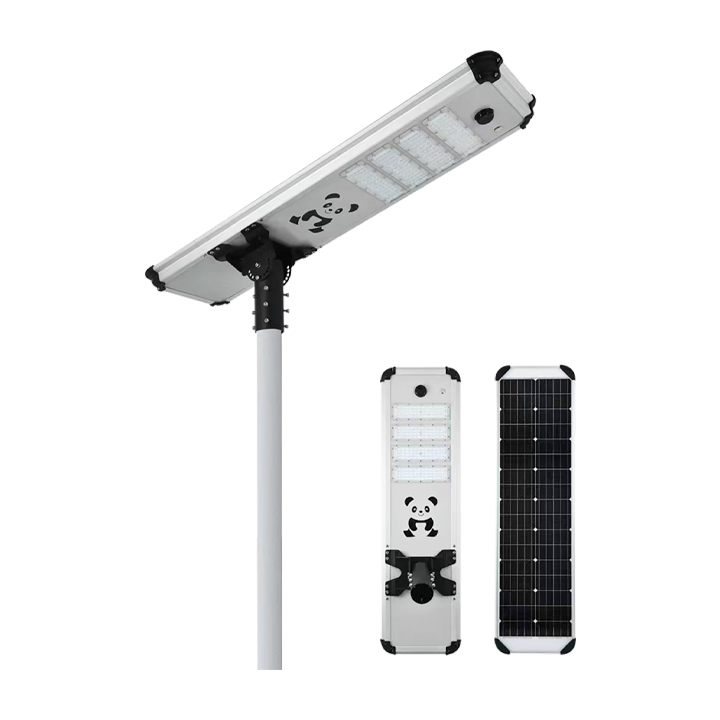

Aluminum Solar LED Street Light

Materials and Structure
The lamp body is made of die-cast aluminum paired with a 6063 aluminum heat sink. The solar panel is made from high-efficiency monocrystalline silicon, with a 25-year service life. The lithium iron phosphate battery has a service life of 5 years. The LED uses SMD3030 imported chip beads, with a luminous efficacy of 200lm/W, and color temperature options ranging from 3000K to 6500K. The color rendering index (Ra) is ≥70. The controller is of the MPPT Boost type. The protection rating is IP65.

Surface Treatment
The surface is treated with a thick anti-corrosion coating, offering strong corrosion resistance.
Dimensions and Specifications
Power: 30W, 50W, 70W, 80W, 100W, 120W.
Solar Panel Parameters: 30W with 35W, 50W with 50W, 70W with 70W, 80W with 85W, 100W with 105W, 120W with 130W.
Battery Parameters: 30W with 3.2V/72Ah, 50W with 3.2V/92Ah, 70W with 12.8V/30Ah, 80W with 12.8V/45Ah, 100W with 12.8V/60Ah, 120W with 12.8V/75Ah.
LED Lumen Value: 30W is 6000Lm, 50W is 8000Lm, 70W is 12000Lm, 80W is 16000Lm, 100W is 20000Lm, 120W is 24000Lm.
Installation Height: 30W suitable for 5-7 meters, 50W suitable for 6-8 meters, 70W suitable for 8-10 meters, 80W suitable for 10-12 meters, 100W suitable for 12-13 meters, 120W suitable for 13-15 meters.
Charging Time: 7 hours.

Installation Configuration
No additional wiring is required, and the lamp can be mounted on a pole or arm. It features microwave sensing and segmented time control. The lighting modes are as follows:100% brightness for 2 hours，70% brightness for 3 hours，10% brightness for 3 hours. It supports one rainy-day backup. The product is CE certified and comes with a 5-year warranty.

Application Scenarios
Suitable for city roads and rural road lighting, industrial parks and logistics parks, campus and villa area lighting, parking lots and square lighting, and off-grid lighting projects in remote areas.
