Traffic Camera Pole L Arm with Control Box for Urban Road Monitoring

Traffic Camera Pole L Arm with Control Box for Urban Road Monitoring is designed for urban road monitoring, traffic violation capture, and checkpoint management. Unlike ordinary straight light poles, this product adopts an L-shaped arm structure that extends the camera above the road to capture better downward angles. The product is equipped with a dedicated control box that houses the power supply, signal transmission equipment, and lightning protection modules, enabling centralized management of devices. The pole is treated with hot-dip galvanization as the primary corrosion protection, followed by electrostatic powder coating to form a dual-layer surface protection system, suitable for long-term outdoor environments. The product includes matching flange sizes and ground cage steel reinforcement for each specification, ensuring installation consistency.

Get A Quote

Materials and Structure
Made of Q235B steel, which is commonly used for outdoor structural components requiring controllable strength and weldability.

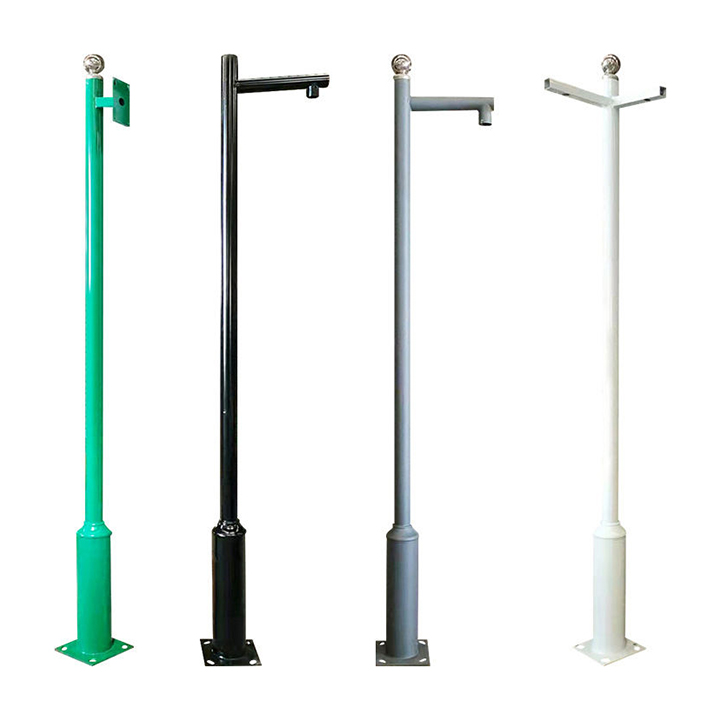

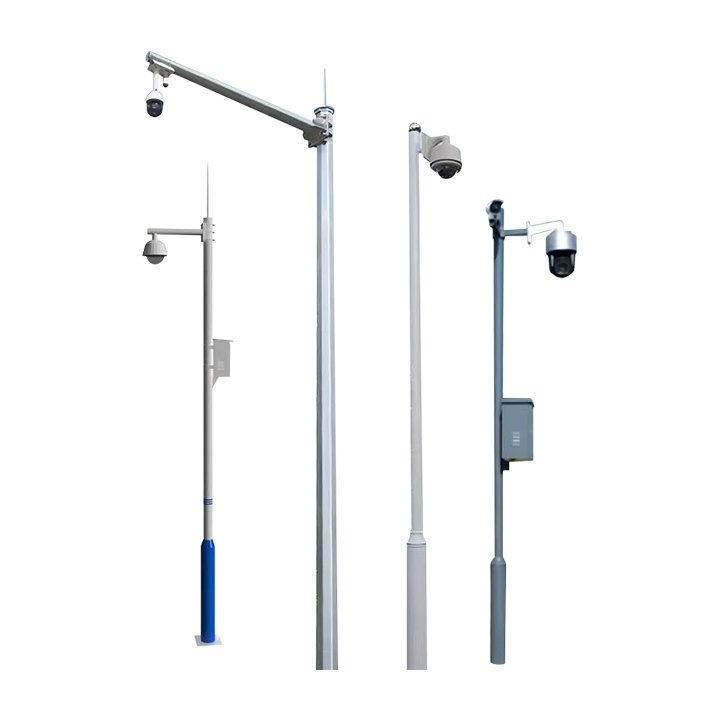

L-shaped design: The vertical main pole is combined with a horizontal arm, with the arm length customized based on the road width, extending the camera directly above the monitoring target.
Control box: Installed at the lower part of the main pole, with a locking design. The internal space accommodates a power adapter, fiber terminal box, lightning arrester, and signal transmission equipment.
Reserved cable holes: The pole body has internal cable channels, and cables run from the control box through the pole to the camera mounted at the end of the arm.

Surface Treatment
The pole body and control box are treated with hot-dip galvanization to enhance corrosion resistance.
The external surface is coated with an electrostatic powder coating for additional protection and to maintain a uniform appearance, typically in light gray or traffic gray.

Size Specifications
Main pole height: Optional at 6 meters, 8 meters, or 10 meters, depending on road conditions.
Arm length: Customizable based on road width and monitoring needs, typically ranging from 4 meters to 12 meters.
Wall thickness: Main pole wall thickness is 4mm to 6mm, and the arm wall thickness is 3mm to 5mm.
Flange specifications: Determined based on pole height and load, accompanied by matching ground cage bolts.
Control box size: Customized based on the number of internal devices, typically 300 x 200 x 400mm or larger.

Installation Configuration
Ground cage reinforcement: Specified with M20 to M30 ground cage bolts based on pole height and arm length.
Flange base design, suitable for concrete foundation installation.
The control box is fixed at the bottom of the main pole, approximately 1.5 to 2 meters above the ground for easy daily maintenance.

Application Scenarios

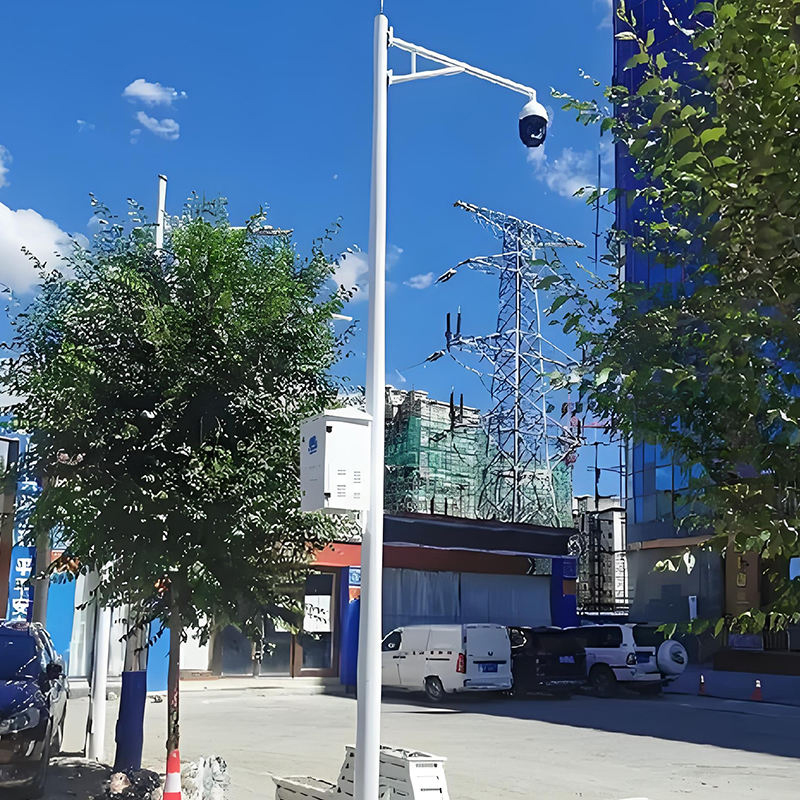

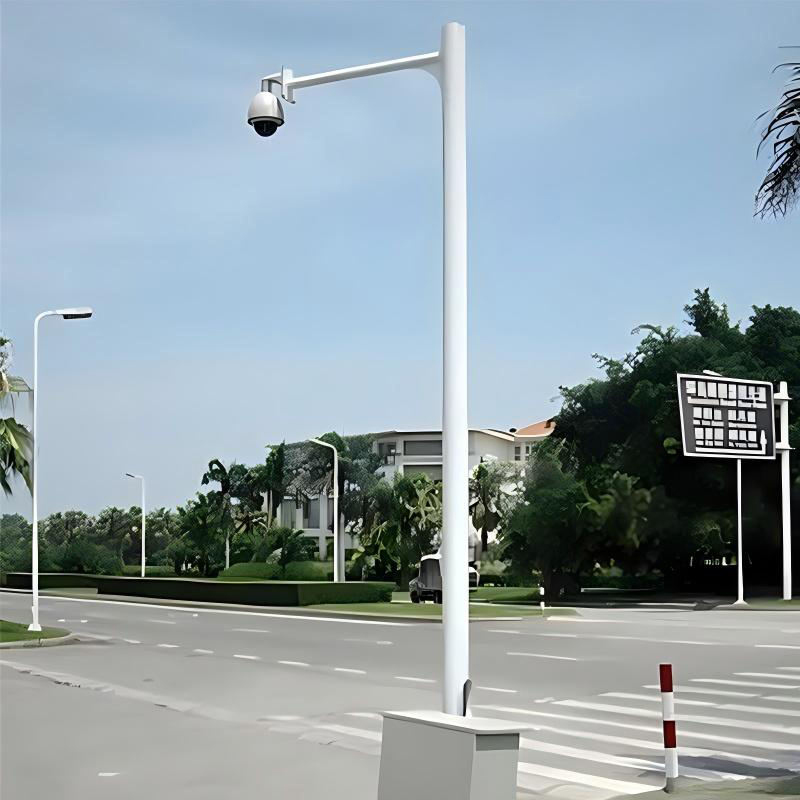

Urban road intersections: Electronic police, red light violation capture systems.
Highways and national/provincial roads: Speed monitoring checkpoints, interval speed monitoring.
Parking lots and parks: License plate recognition and security monitoring at entrances and exits.
Tunnels and bridges: Traffic flow monitoring and violation capture.
