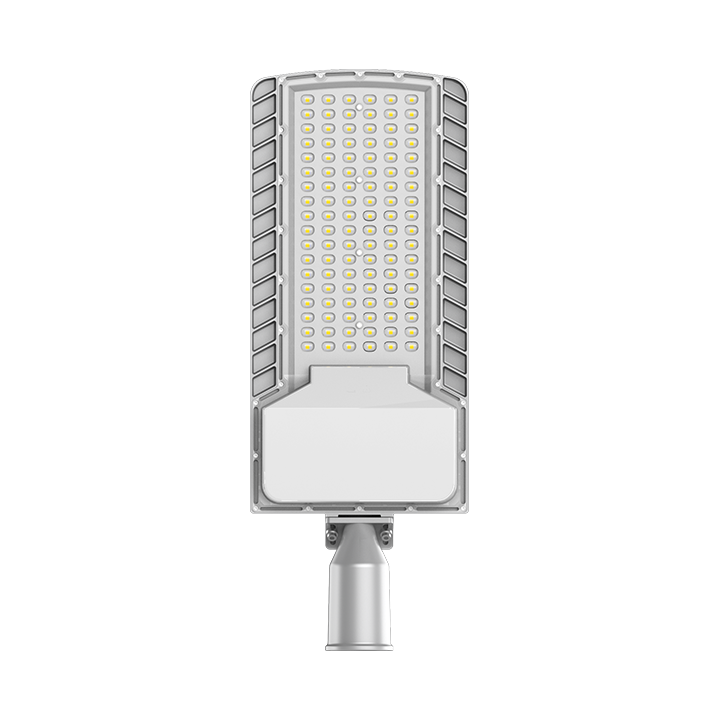

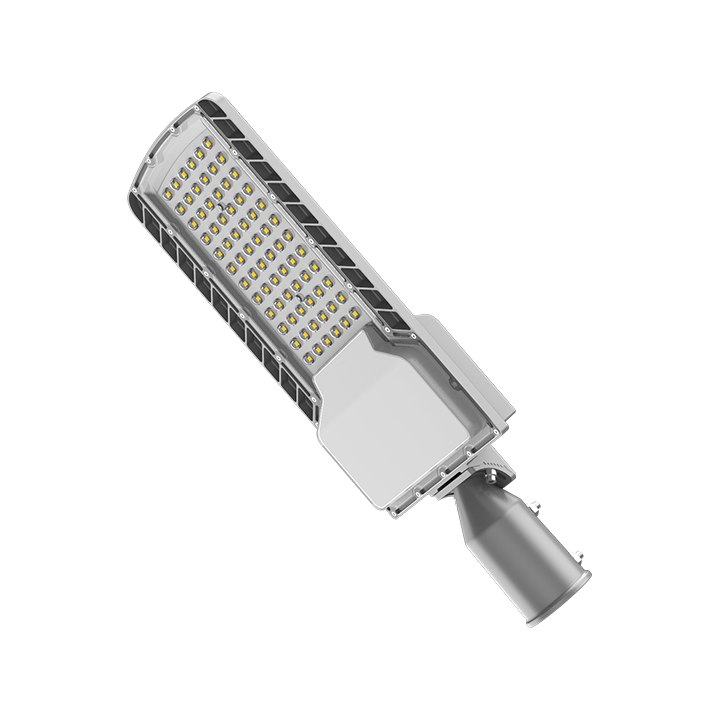

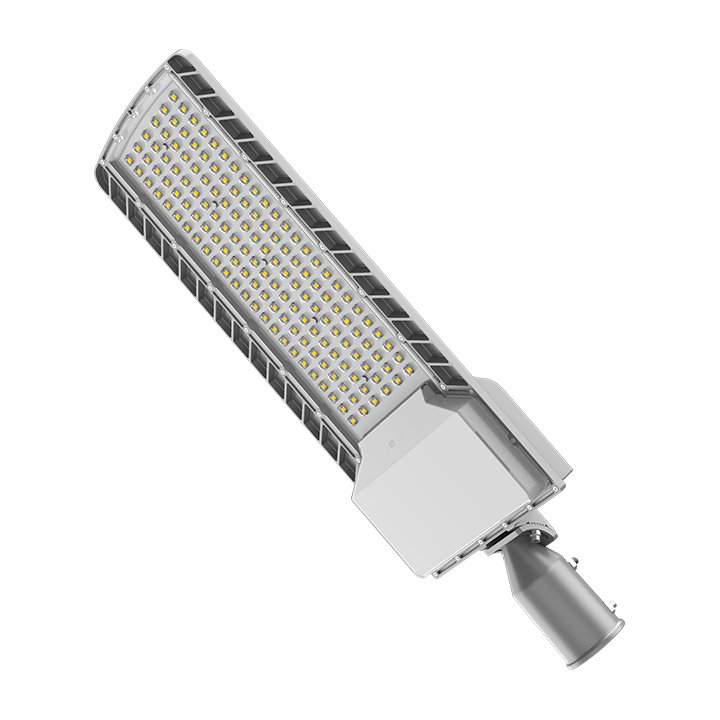

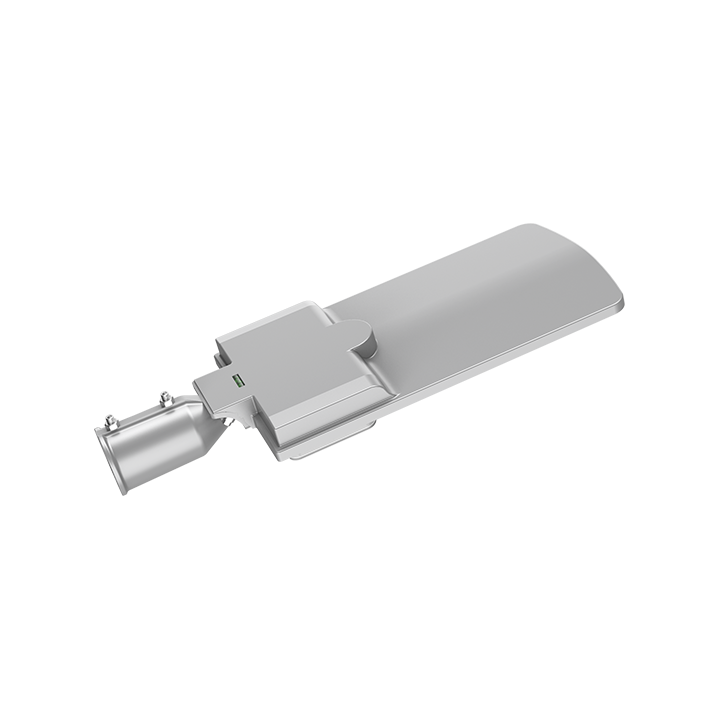

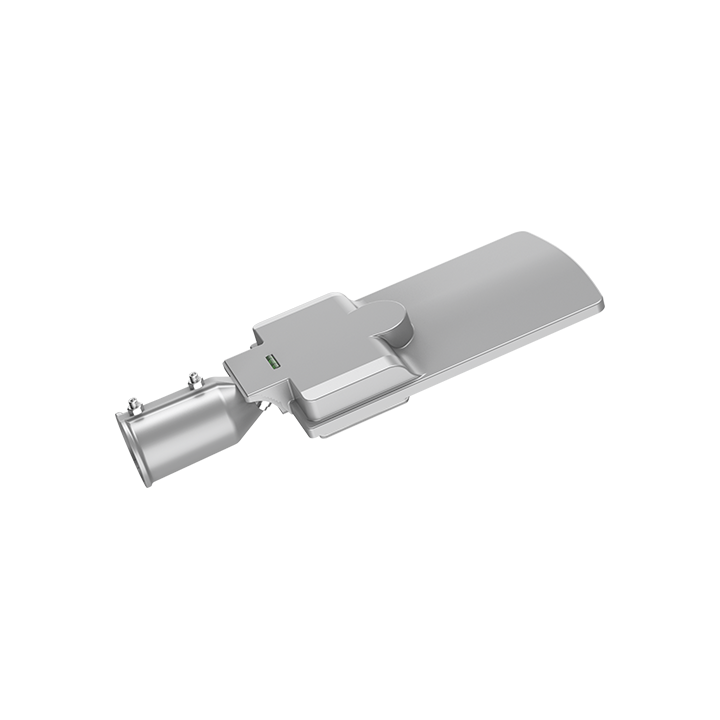

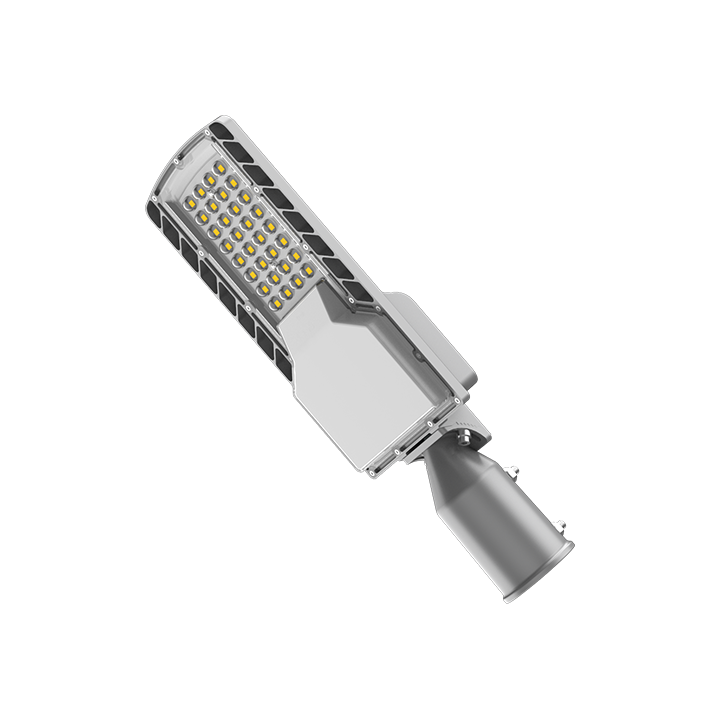

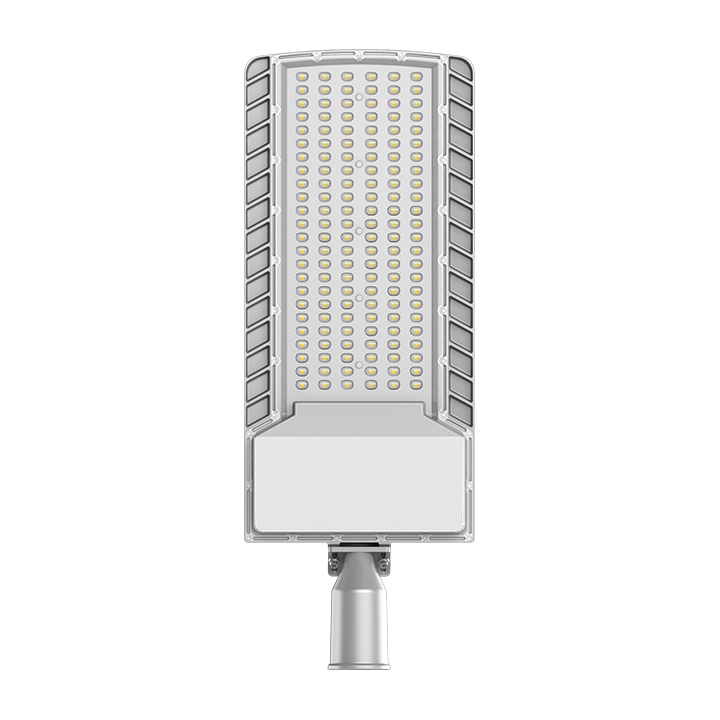

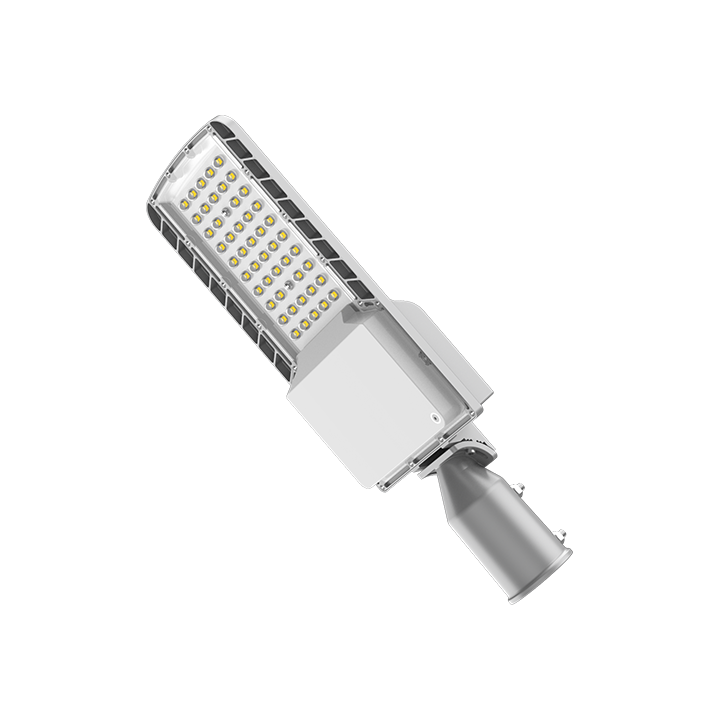

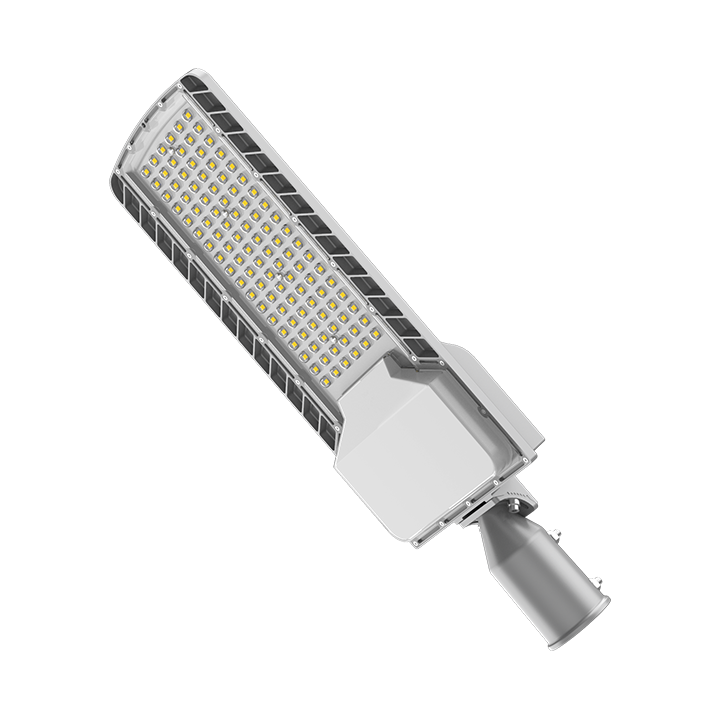

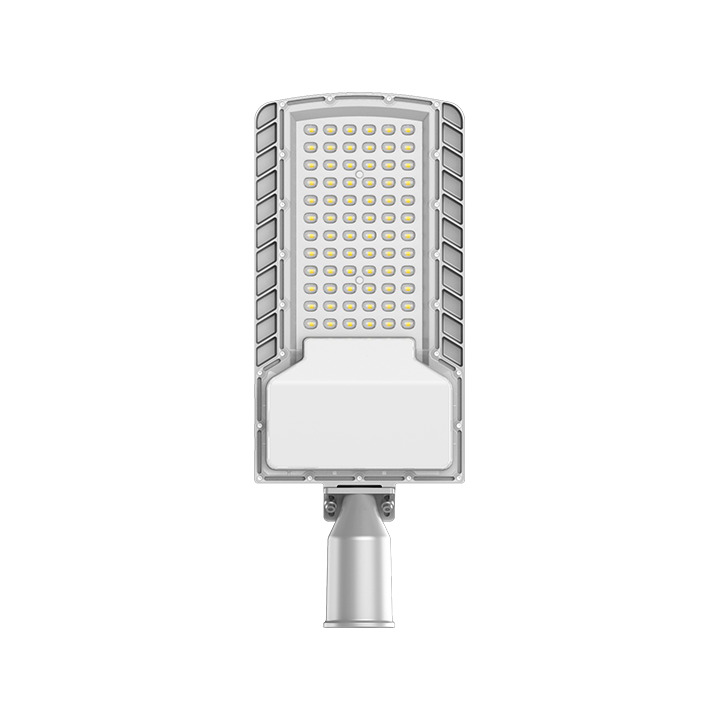

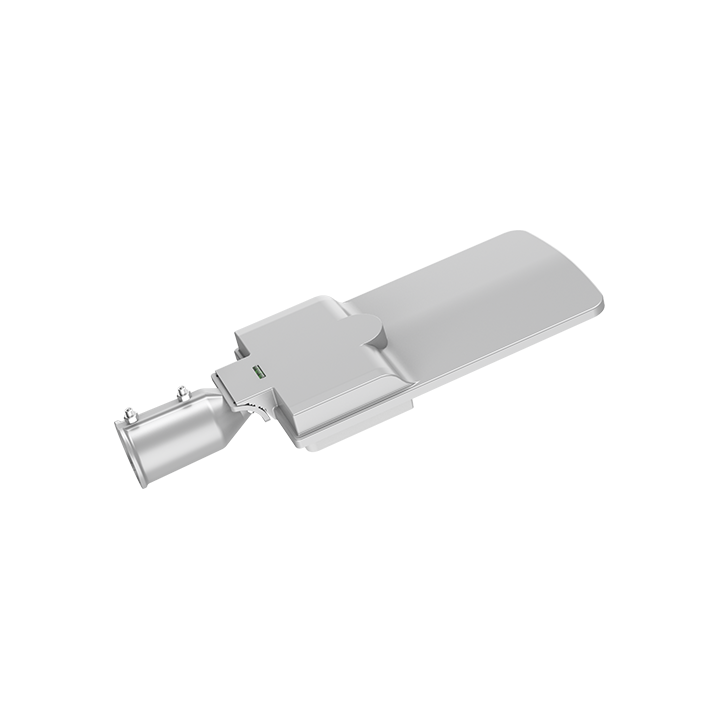

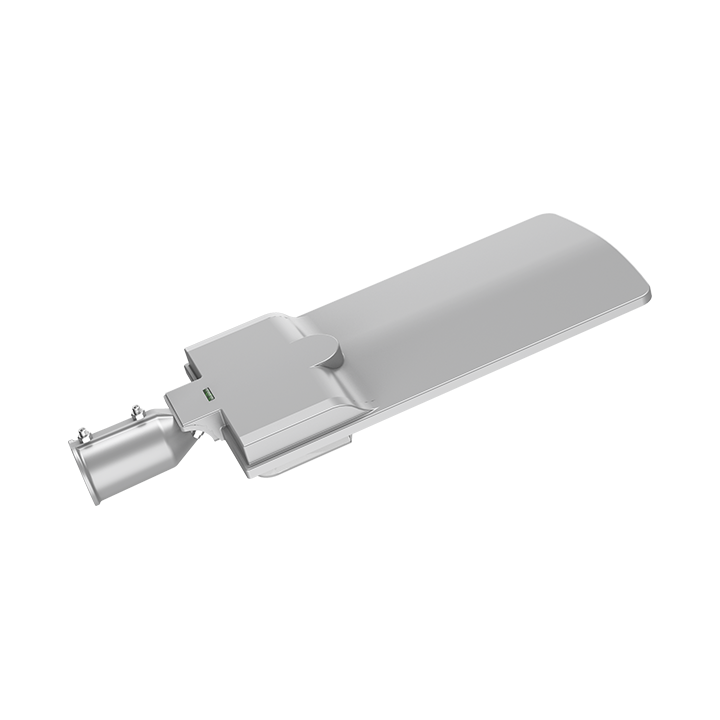

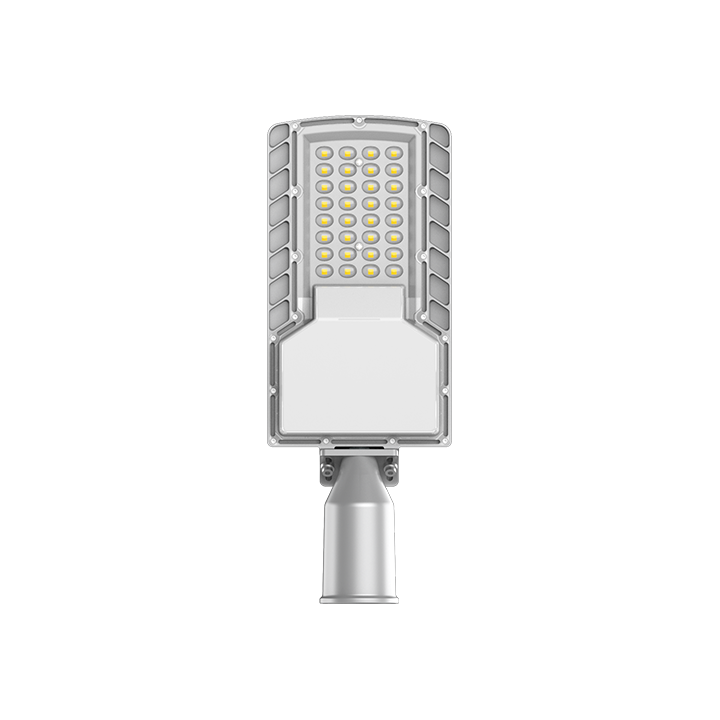

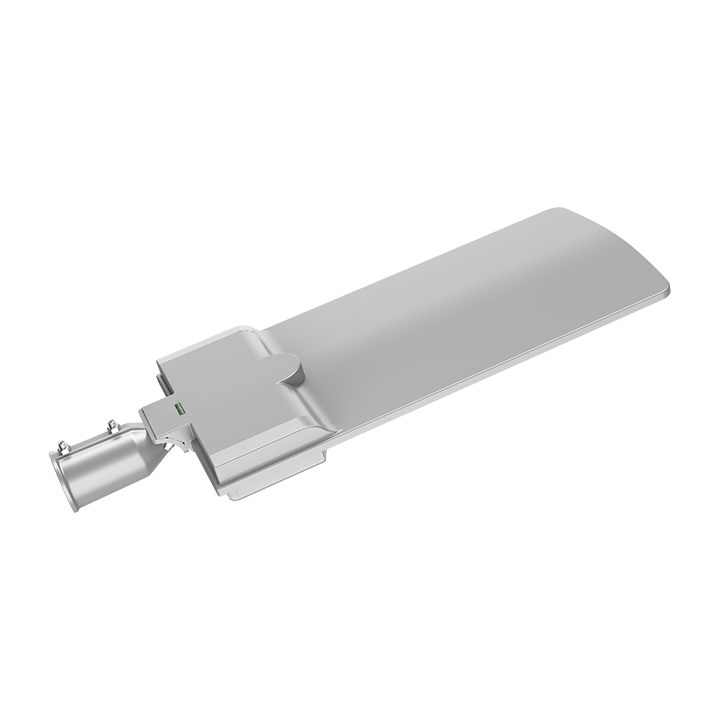

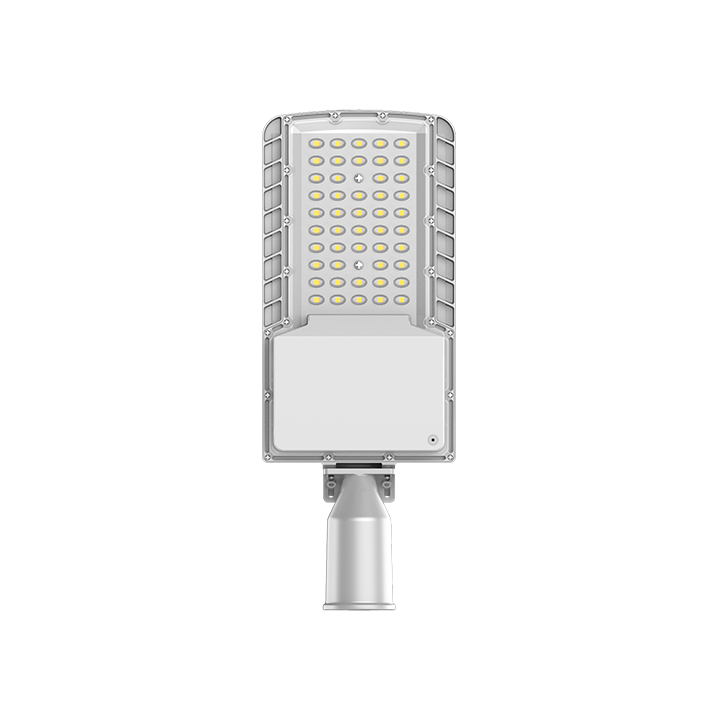

Integrated Die-Casting Aluminum Anti-Glare LED Street Light IP67

Materials and Structure
Made from an integrated die-casting aluminum housing with no exposed heat sink edges.
Specialized anti-glare lens with T2 and T2M optics, meeting road lighting glare control requirements.
Available in a high-light efficacy version of 200 lm/W, significantly reducing energy consumption.

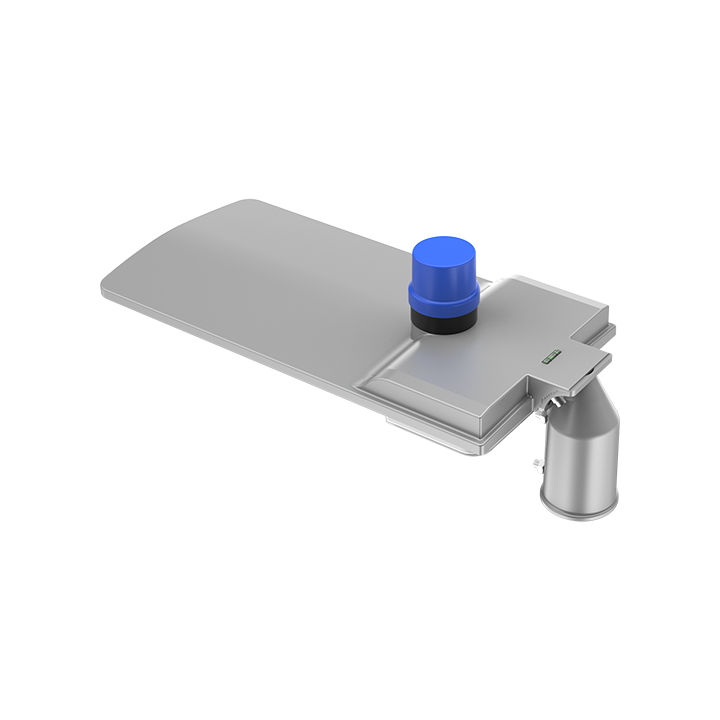

0-10V dimming, time control, light sensing, and IoT smart control functions are optional.
The installation axis is adjustable by 90° and 180° (±15° range), compatible with different pole types and lighting directions.

Surface Treatment
The lamp body undergoes sandblasting and electrostatic powder coating for strong weather resistance.
Coating colors can be customized according to RAL color standards.

Size Specifications
Power: 40W, 50W, 75W, 100W, 150W, 200W.
Voltage: AC100-277V, PF > 0.95, Color Temperature: 3000-6000K, Light Efficacy: 200 lm/W, IP67 Protection Rating, Protection Against Electric Shock: Class II, IK Rating: IK05, Lifespan: ≥50,000 hours.
Operating Temperature: -40°C to 50°C.

Installation Configuration
Adjustable installation axis, adaptable to various pole installation angles.
Both side mount and top mount options are available.
0-10V dimming as standard, time and light sensing controls as optional.

Application Scenarios
City main road and expressway lighting, residential area roads and school surroundings lighting, highway and toll station lighting, park pathways and bicycle lanes lighting, and municipal projects requiring glare control.
