Materials and Structure

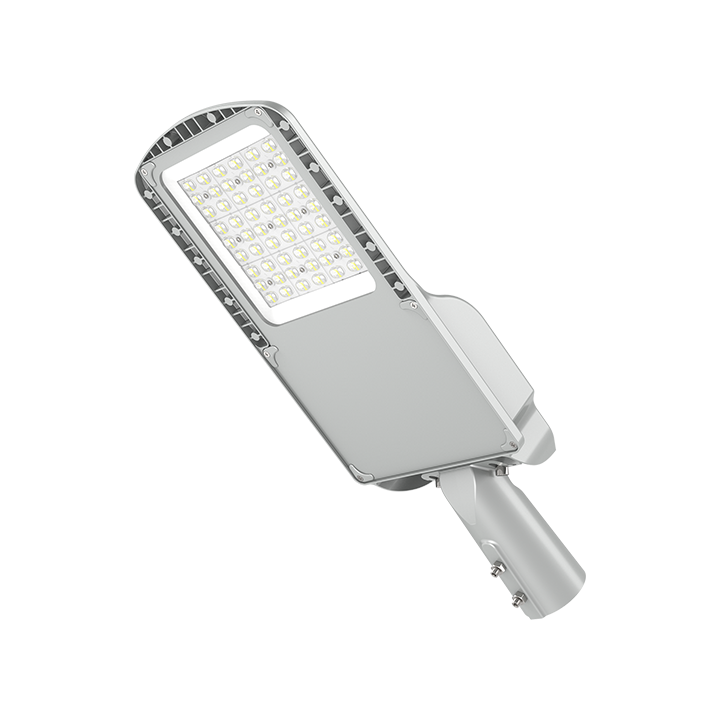

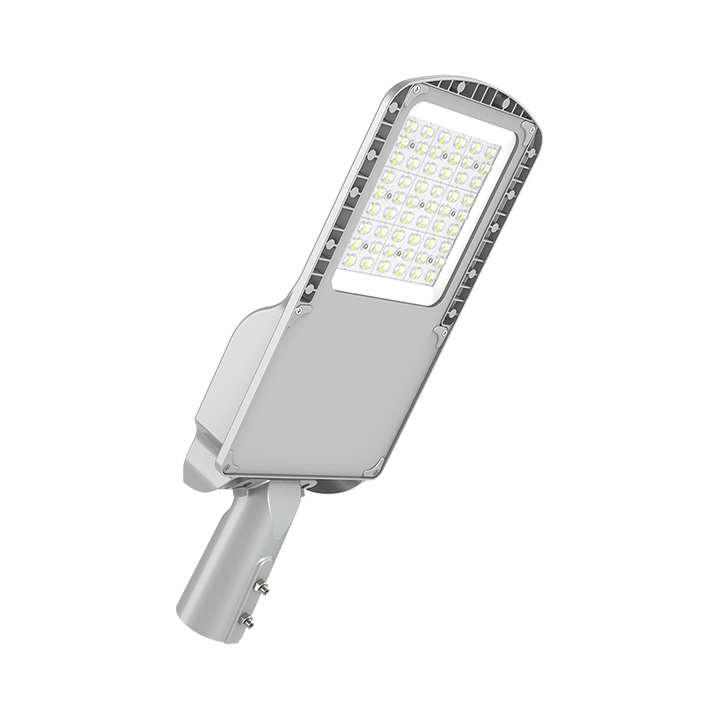

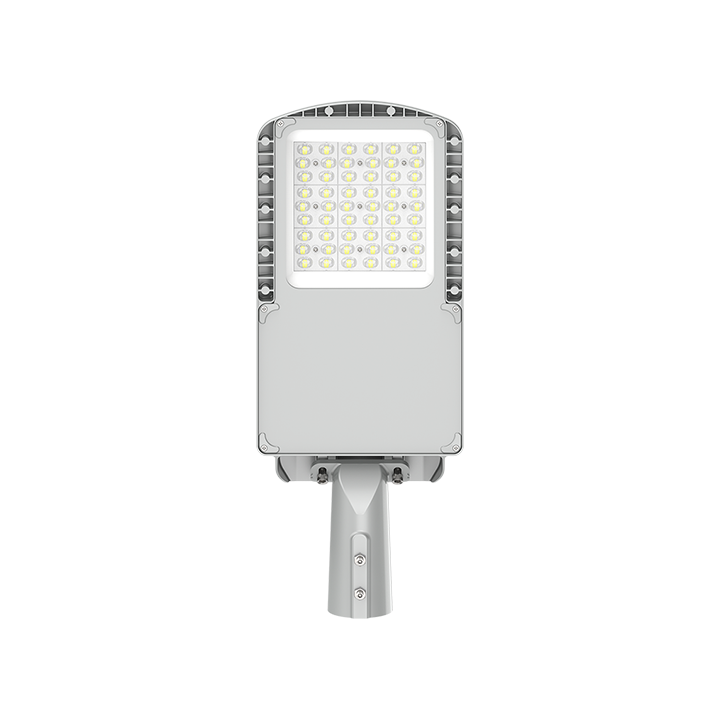

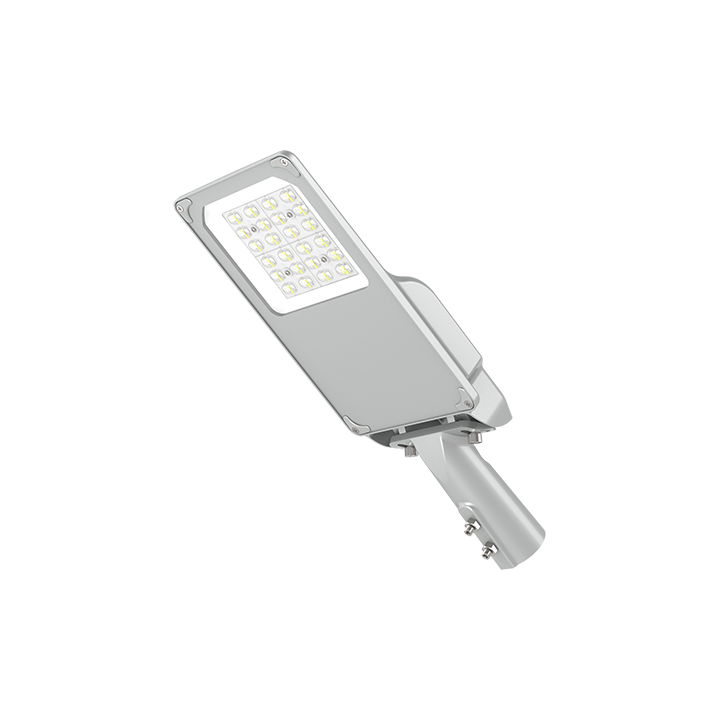

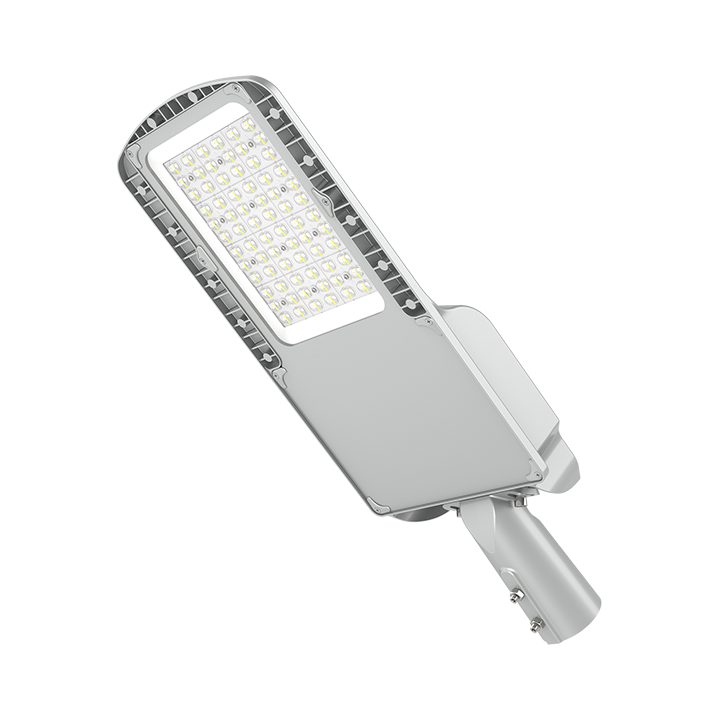

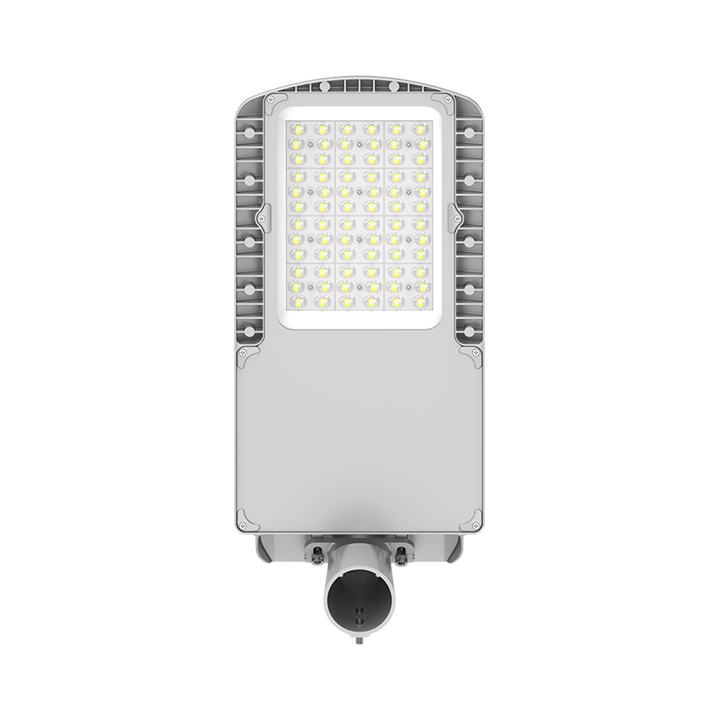

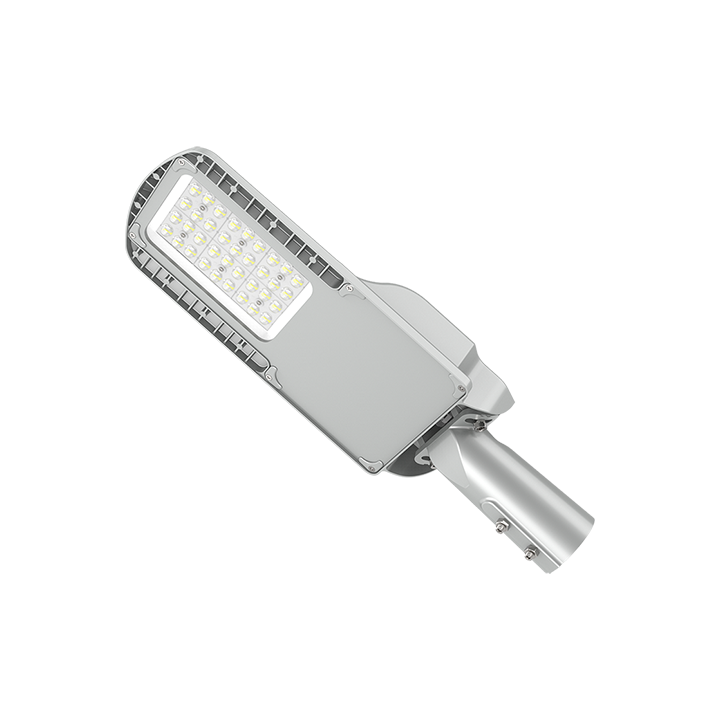

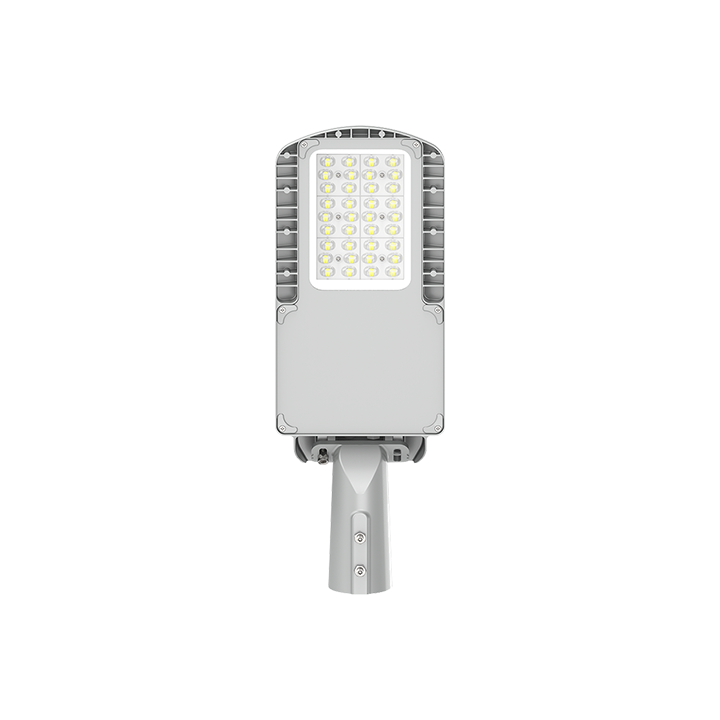

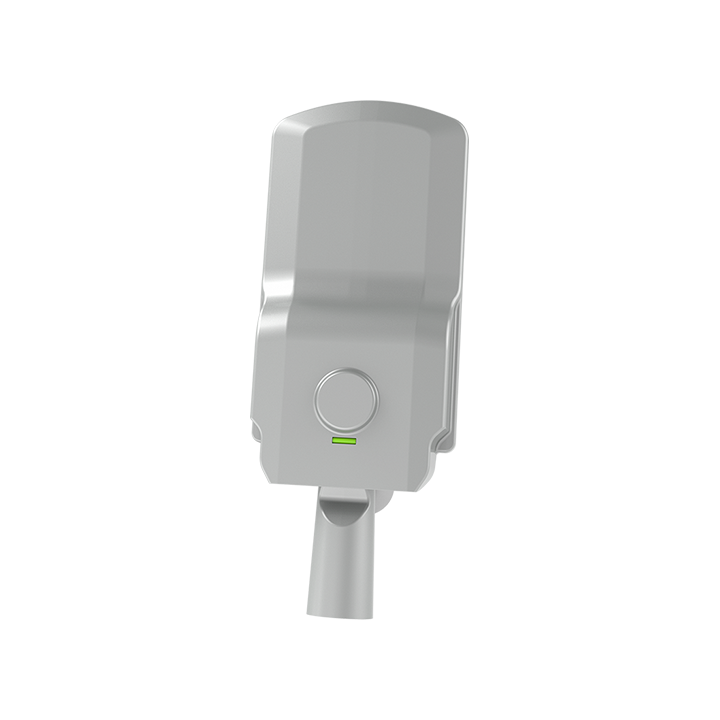

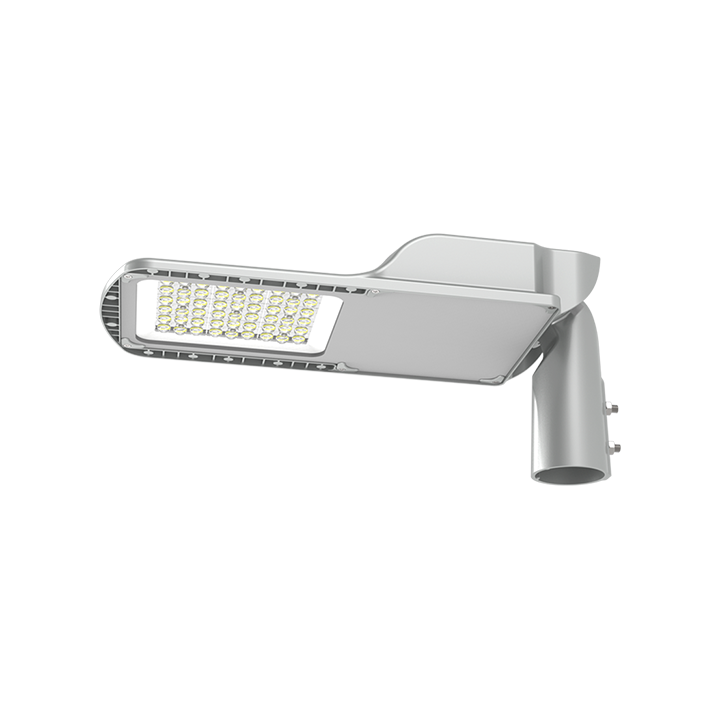

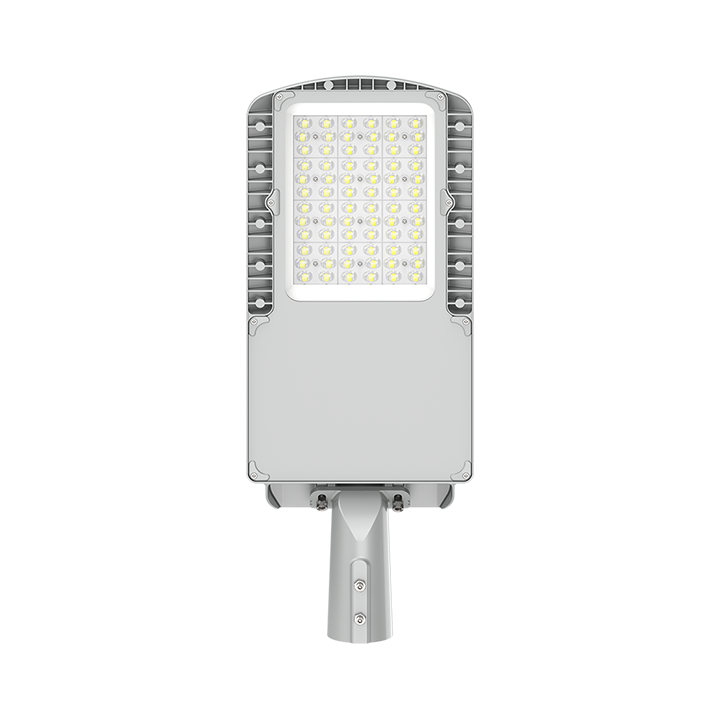

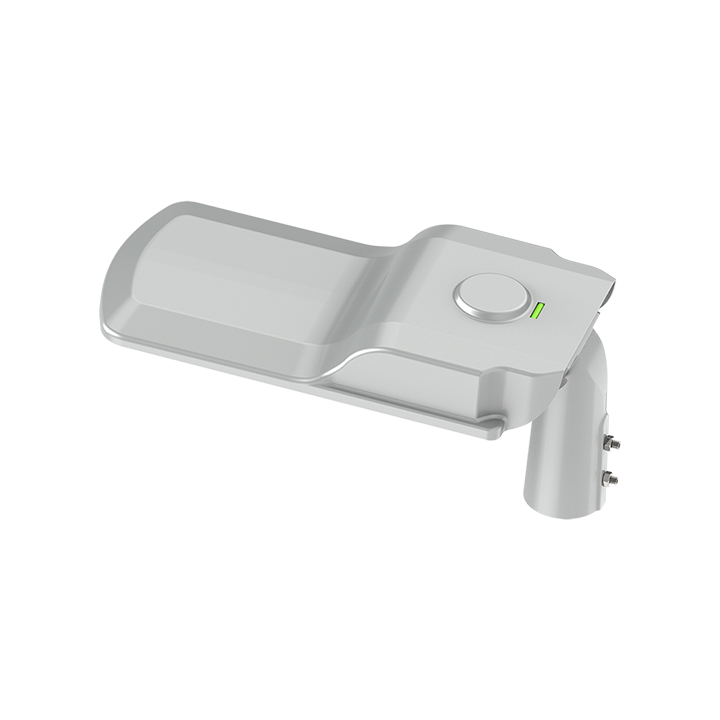

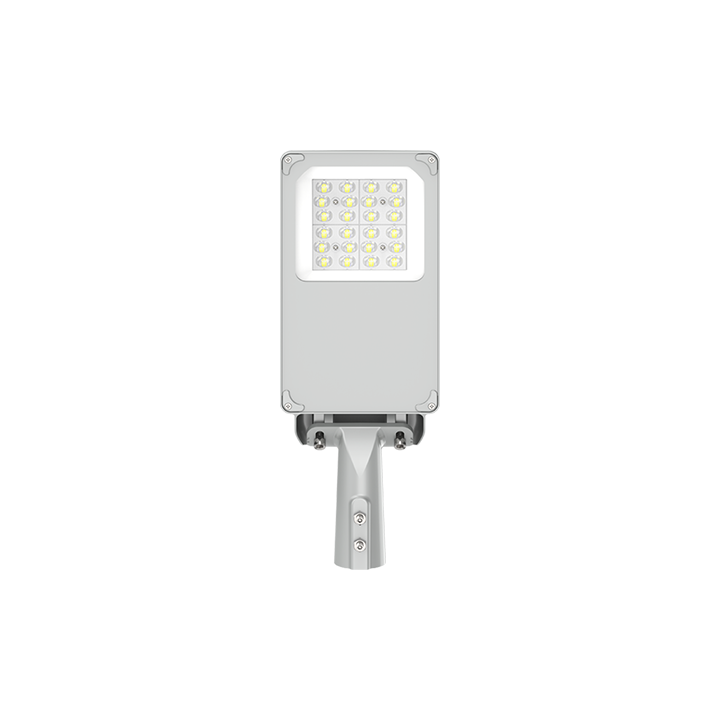

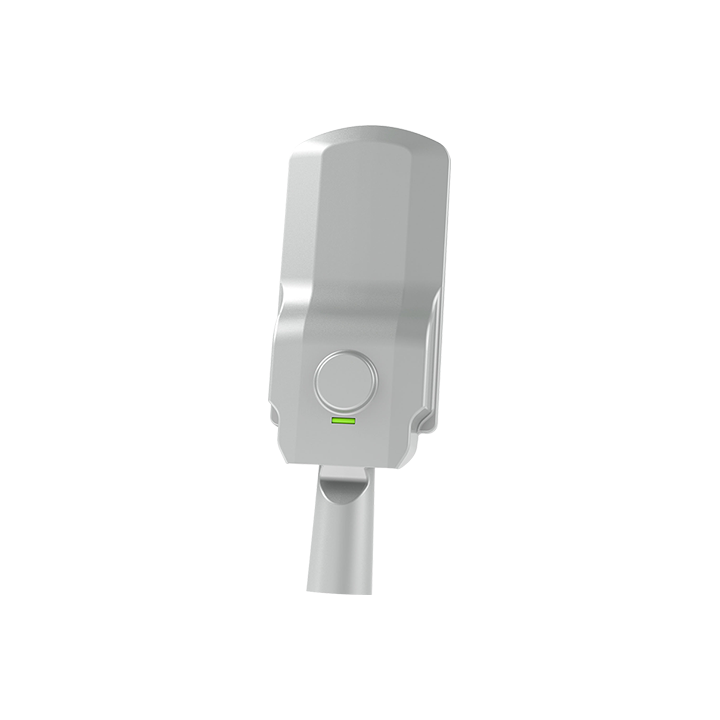

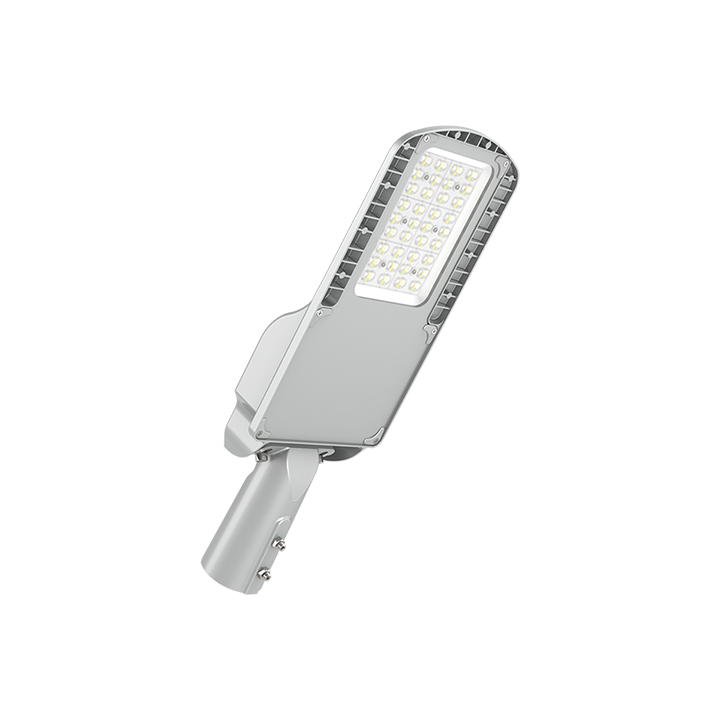

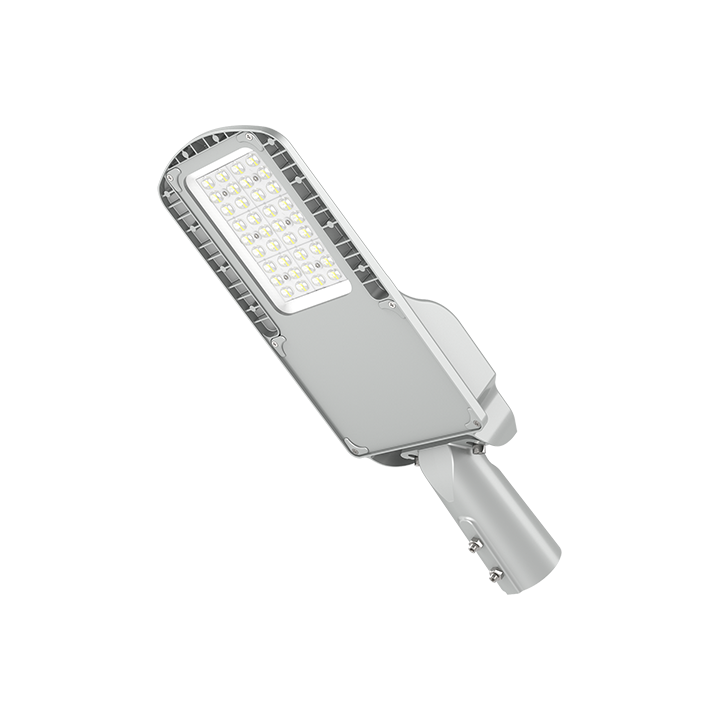

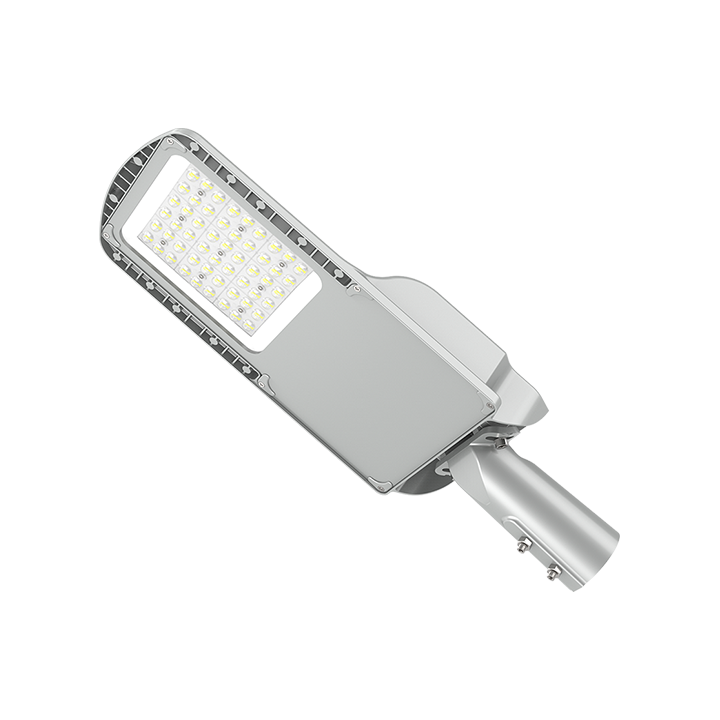

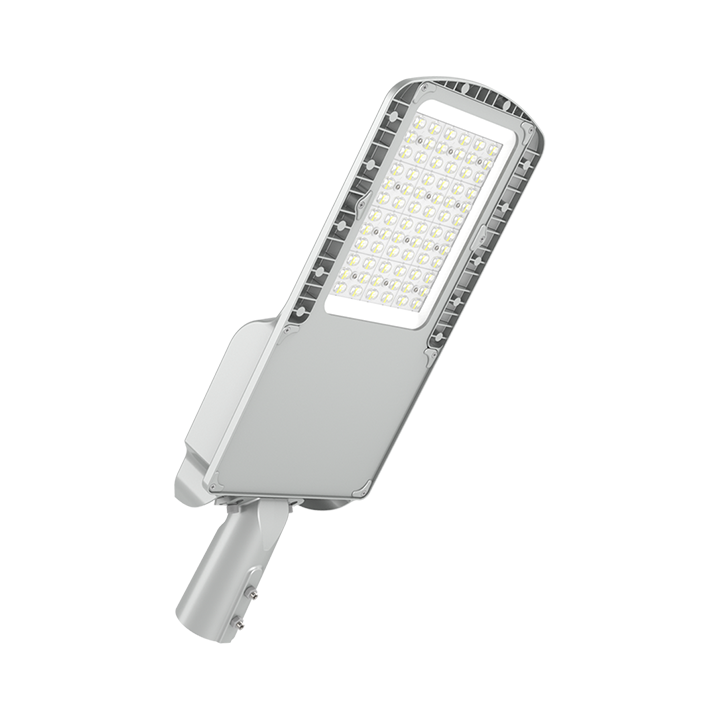

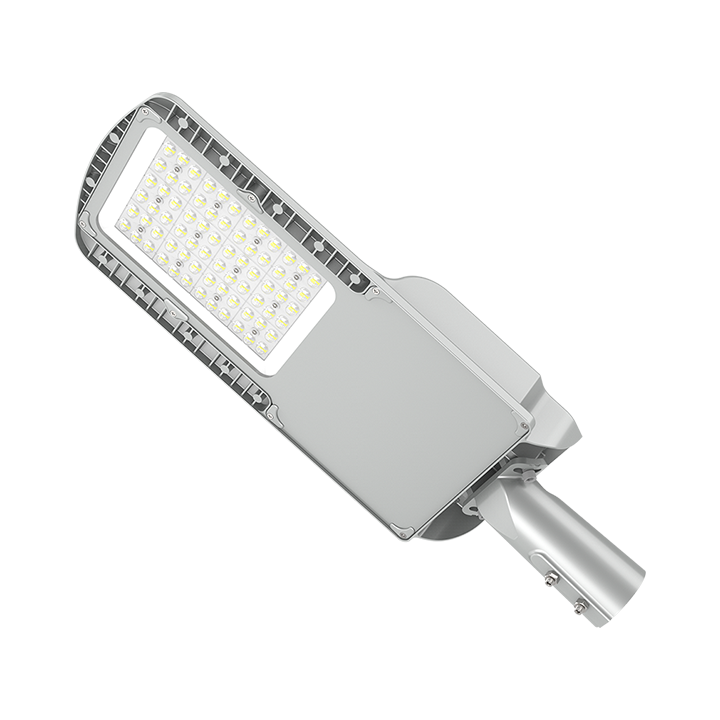

Made from an integrated die-casting aluminum housing with a honeycomb heat dissipation structure.
Light efficacy of 130-170 lm/W available, with selectable beam angles of 60°, 90°, 120°, T2M, T3M, or T4M.
Tempered glass panel or PC lens options.
Adjustable installation shaft with a range of 90° to 180° (±15°).

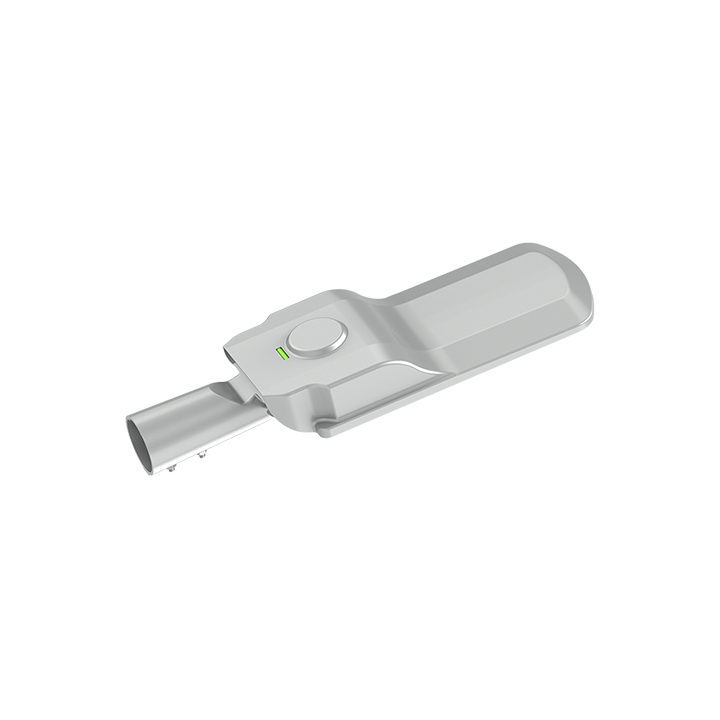

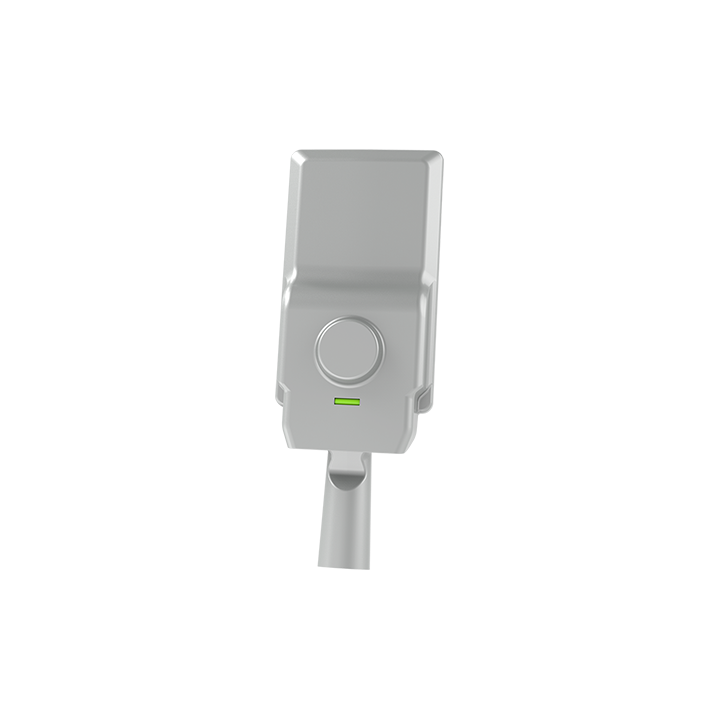

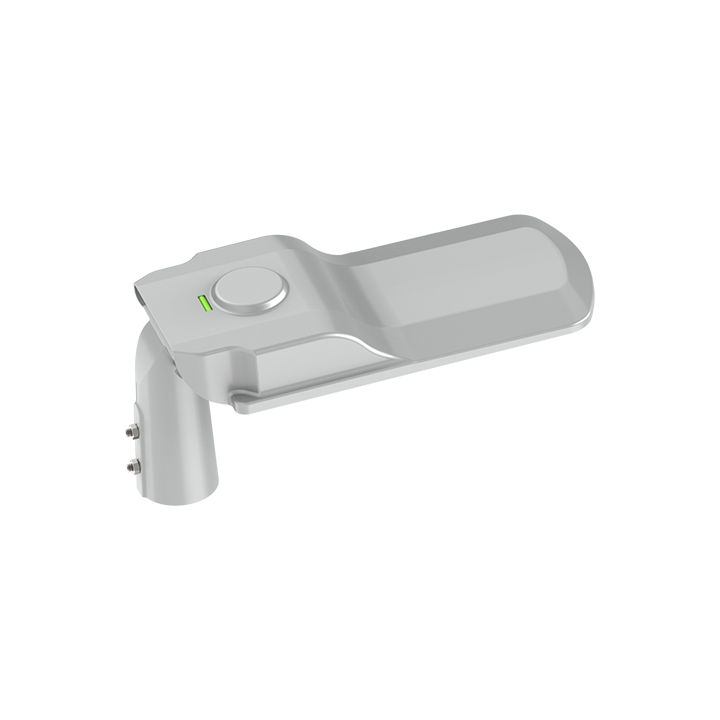

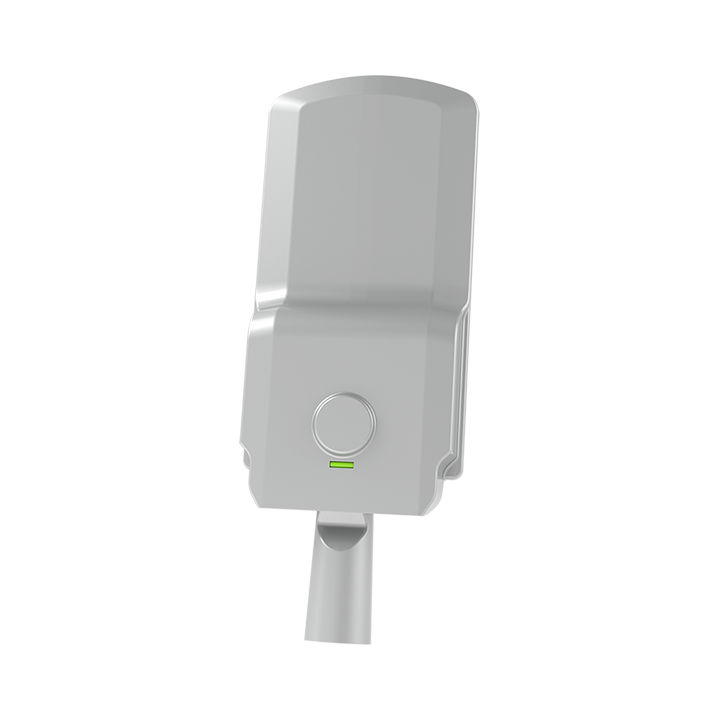

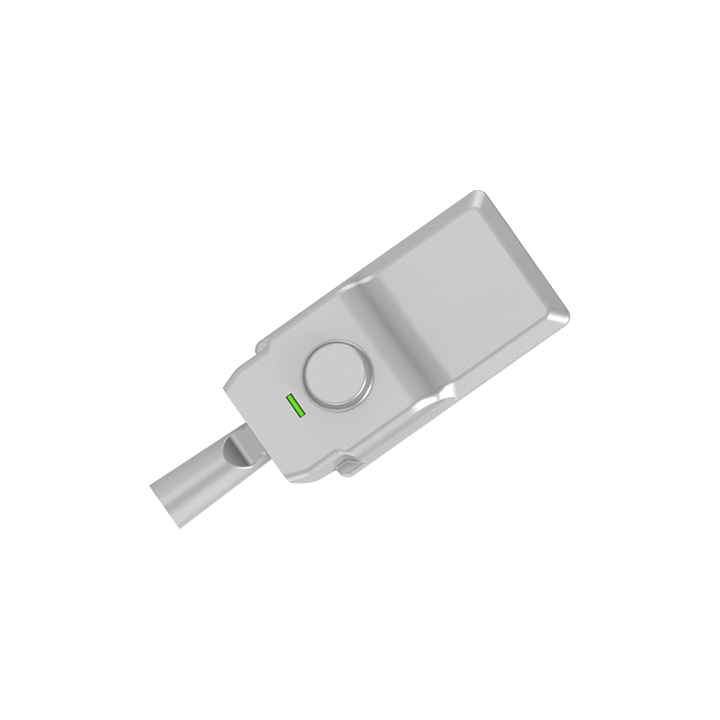

Built-in level to assist with installation.
Surface Treatment
Electrostatic powder coating, with colors customizable according to RAL color standards.
Size Specifications
Power: 50W, 75W, 100W, 150W, 200W, 240W.
Voltage: AC100-277V, PF > 0.95, Color Temperature: 3000-6000K, IP66 Protection Rating, Operating Temperature: -40°C to 50°C, Lifespan: ≥50,000 hours.
Compatible with poles with diameters of 50mm, or 60mm.
Installation Configuration
Adjustable shaft design for flexible angle adjustment.
Side mount or top mount.
0-10V dimming, time control, and light sensing controls available.
Application Scenarios
City roads and ramps with different widths, toll stations and service area lighting, parking lot and square lighting, internal roads in industrial parks, and bridge or curve lighting with angled pole installations.
| Model | THSL04-50W | THSL04-75W | THSL04-100W | THSL04-150W | THSL04-200W | THSL04-240W |
| Power | 50W | 75W | 100W | 150W | 200W | 240W |
| Voltage | AC100-277V | |||||
| Frequency Range | 50/60Hz | |||||
| PF | >0.95 | |||||
| CCT | 3000-6000K | |||||
| Lamp Brand | 3030/5050 | |||||
| IP Rating | IP66 | |||||
| Colour Rendering Index | Ra>70 | |||||
| Beam Angle | 60°/90°/120°/T2M/T3M/T4M | |||||
| LED Driver | Inventronics/MeanWell/Philips/MOSO | |||||
| Raw Material | Patent private mould, integrated dia-casting AL | |||||
| Luminous Efficiency | 130/150/170 lm/W | |||||
| Working temperature | -40°C~50°C | |||||
| Life | ≥50000H | |||||
