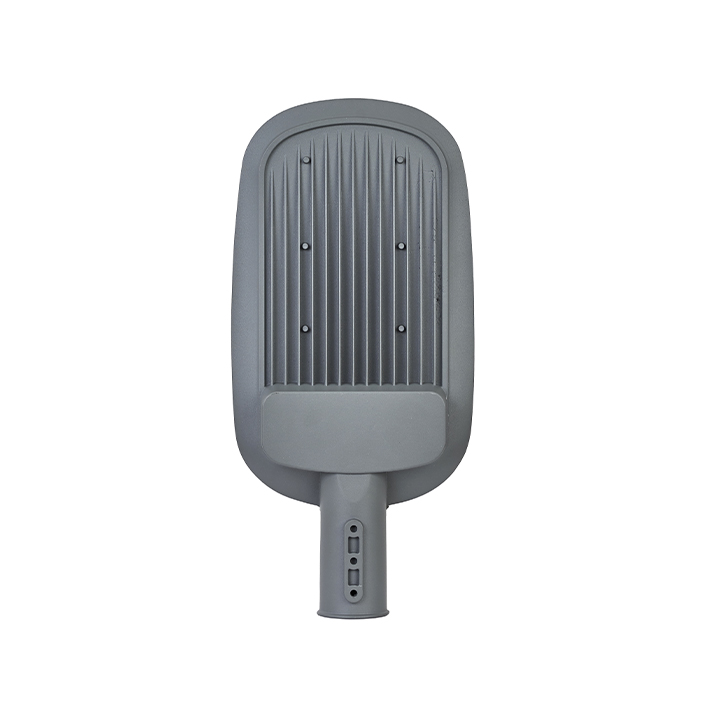

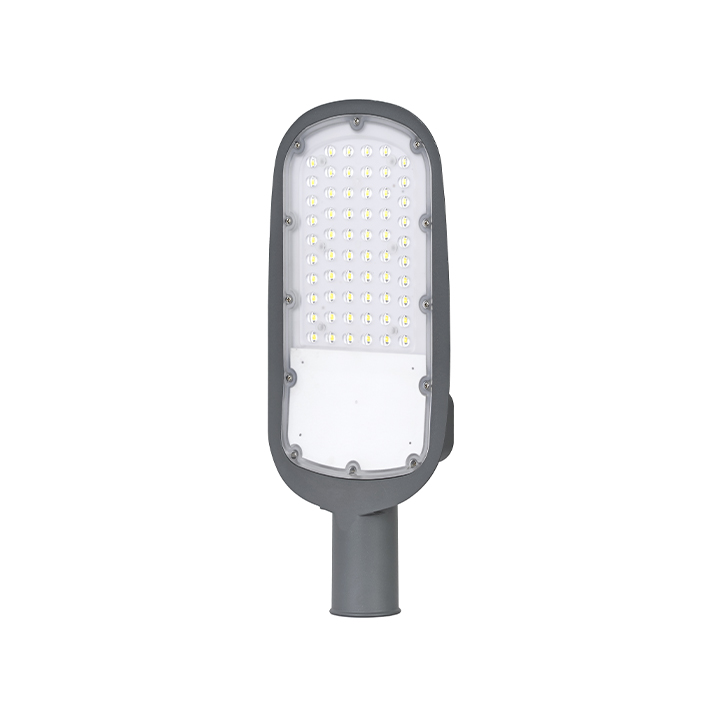

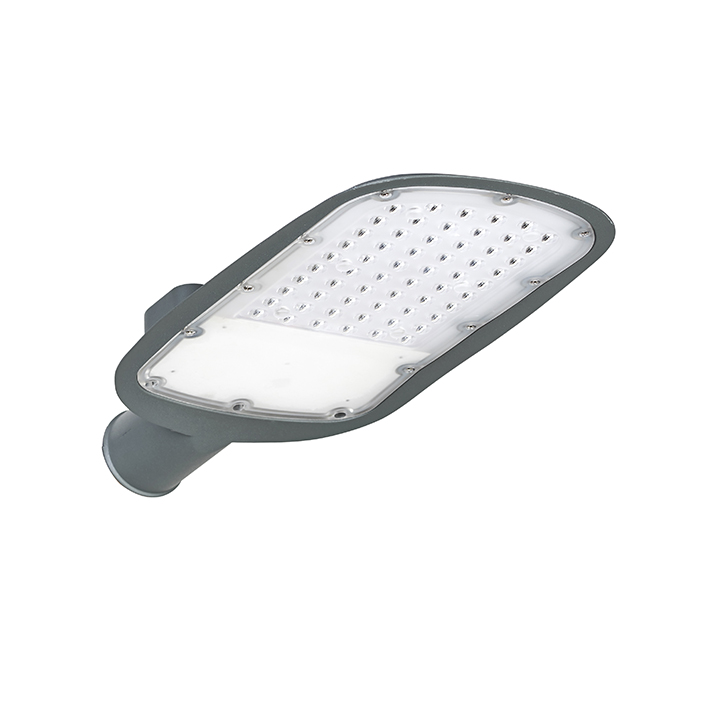

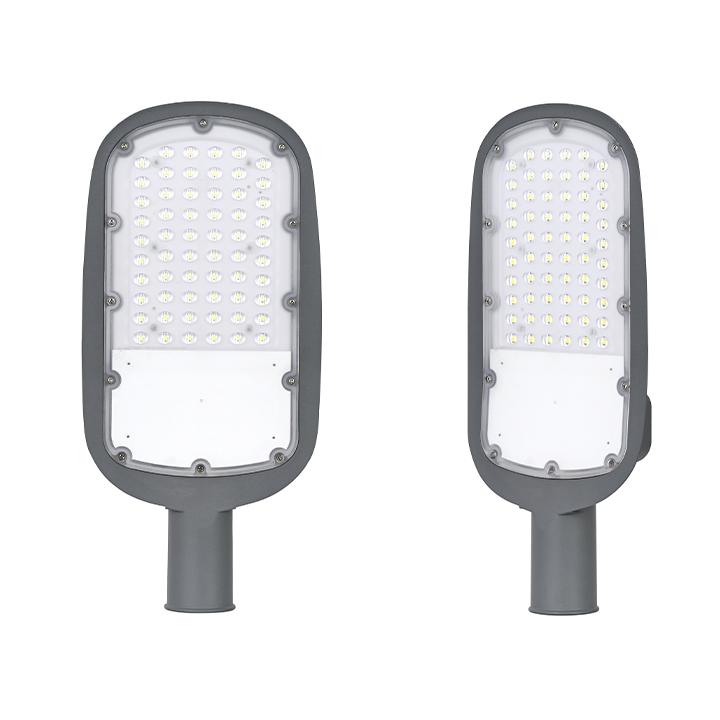

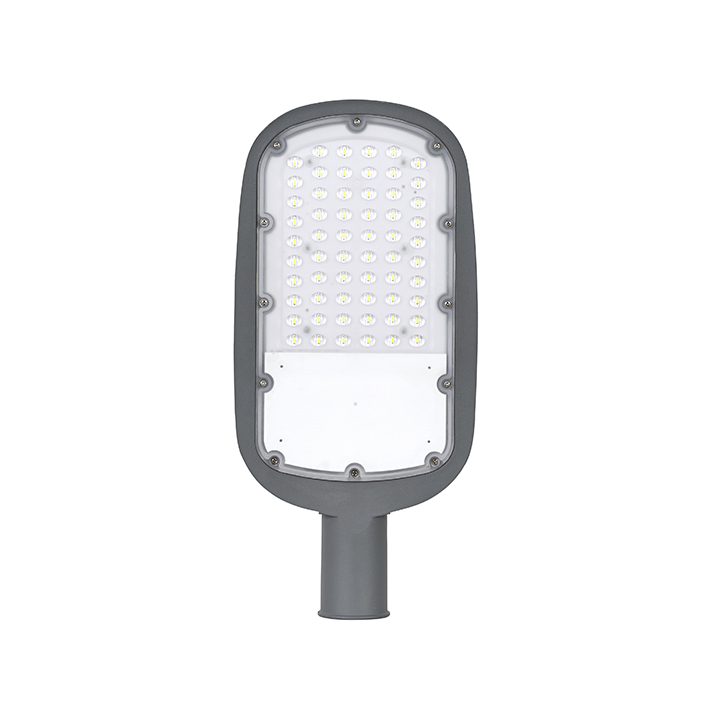

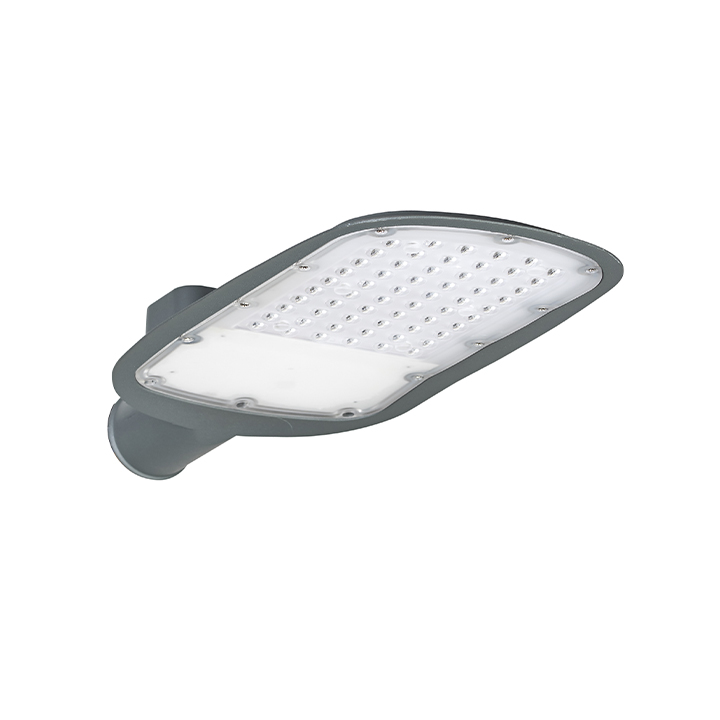

Die-Casting Aluminum Streamline LED Street Light

The product uses a hot-dip galvanized bracket with electrostatic powder coating, forming a dual-layer surface protection system, suitable for long-term outdoor use. The product comes with matching mounting brackets and waterproof connectors for various power specifications, ensuring consistent installation.

Materials and Structure
Made of die-casting aluminum, which has excellent thermal conductivity and molding precision, it is commonly used in outdoor lighting components that require efficient heat dissipation.
Streamlined housing design with smooth surfaces and no sharp corners, resulting in low wind resistance.
Equipped with Bridgelux LED chips and optical PC lenses for uniform light distribution, complying with road lighting standards.
Wall thickness is designed based on the power specification to ensure structural strength.
Internally, high thermal conductivity aluminum substrates quickly transfer LED heat to the housing for dissipation.

Surface Treatment
The lamp body surface is treated with electrostatic powder coating, available in matte black, silver gray, or textured white, providing strong corrosion resistance.
The surface undergoes sandblasting and cleaning treatment before coating to ensure better adhesion.

Size Specifications
Power: 50W, 100W, 150W, 200W, 300W.
Voltage: AC100-277V, PF > 0.95, Color Temperature: 3000-6500K optional, Light Efficacy: 140-150 lm/W, IP66 Protection Rating, Operating Temperature: -40°C to 50°C, Lifespan: 50,000 hours.
The lamp body size increases with power, fitting poles with diameters of 50mm/60mm.

Installation Configuration
Two installation methods available: side mount or top mount, compatible with standard light poles.
Equipped with stainless steel mounting bolts and waterproof gaskets.
0-10V dimming function available, with optional time and light sensing controls.

Application Scenarios
City main roads and secondary road lighting, industrial park internal road lighting, large parking lot lighting, civic squares and park pathway lighting, outdoor billboard and gas station lighting.
