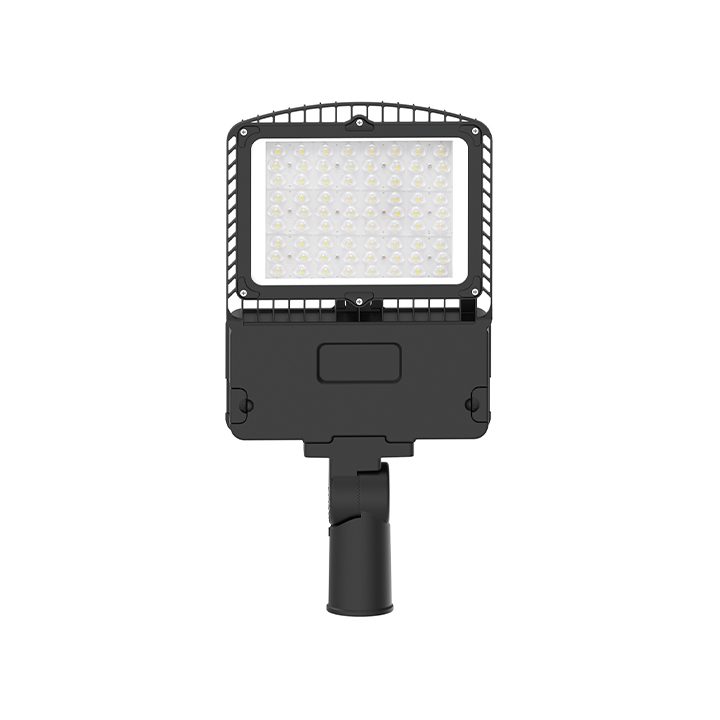

Modular Die-Casting Aluminum Pluggable LED Street Light IP67

Modular Die-Casting Aluminum Pluggable LED Street Light IP67 is designed for large-scale lighting projects that require easy on-site maintenance and flexible power configuration. Unlike traditional integrated streetlights, this product uses modular pluggable technology, allowing the driver and light source modules to be quickly replaced on-site without disassembling the entire light or using specialized tools. This design significantly reduces maintenance costs, especially in projects with short maintenance windows, such as ports and airports. The product features a simple and modern design with a smooth back and high heat dissipation efficiency. It has an IP67 protection rating and can withstand short-term immersion in water.

Get A Quote

PREV：Die-Casting Aluminum LED Street Light IP65 With Glass Lens
NEXT：Die-Casting Aluminum Basic LED Street Light IP65

Product Details

Materials and Structure
Made from a national standard die-casting aluminum housing with a modular structure.
Pluggable driver and light source modules, tool-free or easy-tool replacement.
High-efficiency optical lens with wide beam angles and long spacing.
Selectable beam types: T2M, T3M, T4M, 60° or 90°.
Light efficacy: 150-180 lm/W, IP67 protection rating.
Operating temperature: -35°C to 70°C, lifespan ≥50,000 hours.

Surface Treatment
Electrostatic powder coating with strong corrosion resistance.
Surface colors are customizable according to customer requirements.

Size Specifications
Power: 50W, 70W, 100W, 150W, 200W, 250W, 300W, 400W.
Voltage: AC100-277V, PF > 0.95, color temperature 3000-6000K.

Installation Configuration
Modular pluggable structure, convenient for on-site maintenance.
Side mount or top mount.
Compatible with standard light poles.

Application Scenarios
City main road and highway lighting, port and container terminal lighting, airport apron and cargo area lighting, large industrial park lighting, and large-scale lighting projects where maintenance costs are a concern.

Model	THSL08-50W	THSL08-70W	THSL08-100W	THSL08-150W	THSL08-200W	THSL08-250W	THSL08-300W	THSL08-400W
Power	50W	70W	100W	150W	200W	250W	300W	400W
Voltage	AC100-277V
Frequency Range	50-60HZ
PF	>0.95
CCT	3000-6000K
Lamp Brand	3030/5050
IP Rating	IP67
Beam Angle	T2M/T3M/T4M/60°/90°
CRI	CRI>70
Luminous Efficiency	150lm/W-180lm/W
Working temperature	-35℃-70℃
Life	≥50000H
