All-In-One Die-Cast Aluminum Solar LED Street Light Supplier & Factory - Jiangsu Tianhuang Lighting Group Co., Ltd.

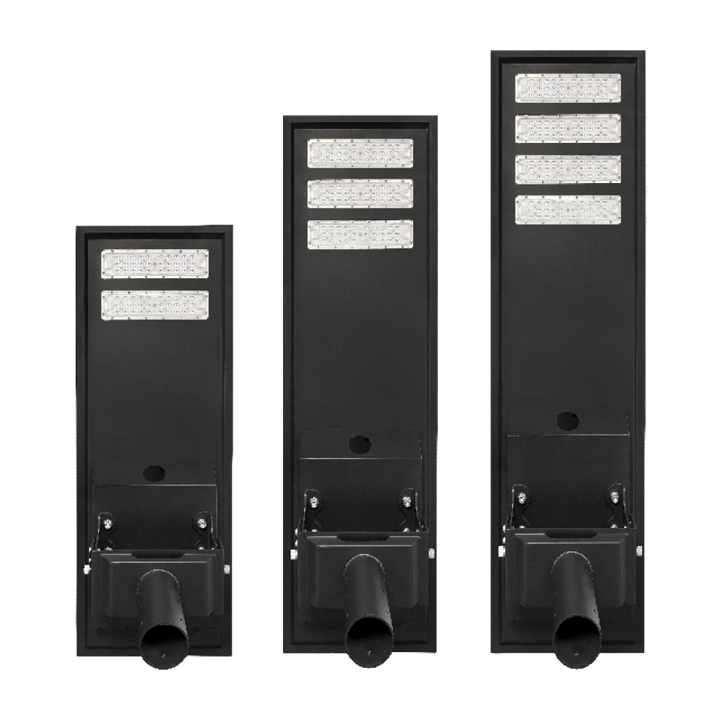

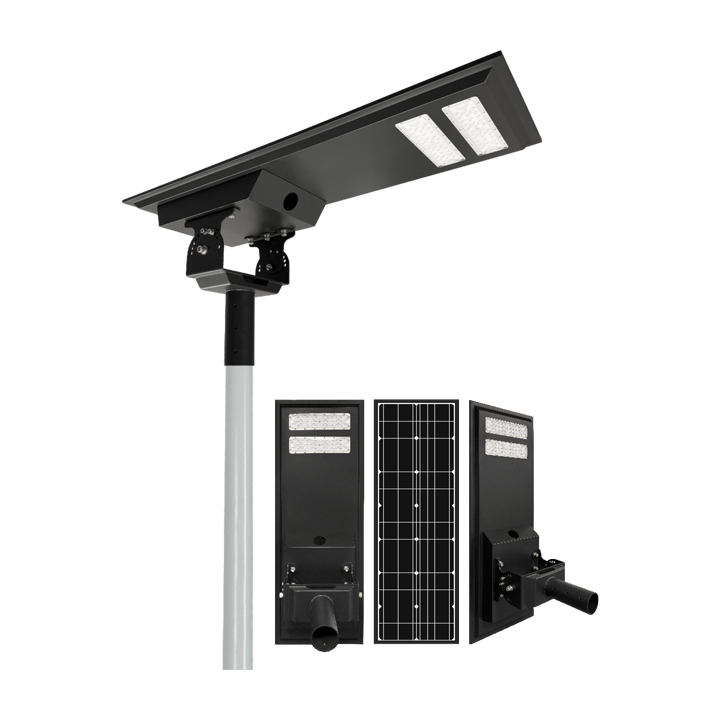

All-In-One Die-Cast Aluminum Solar LED Street Light

The All-In-One Die-Cast Aluminum Solar LED Street Light is designed for outdoor lighting projects that prioritize easy installation and simple aesthetics. The solar panel, LED light source, lithium iron phosphate battery, and MPPT controller are all integrated into one light body, with no external cables required for simple and quick installation. The product is made of high-quality die-cast aluminum, with the surface treated using anodizing for superior impact resistance, high-temperature tolerance, and corrosion resistance. The lithium iron phosphate battery uses intelligent charge/discharge management, dual protection, and intelligent balancing technology, supporting more than 2000 deep cycles. The intelligent power adjustment function automatically determines the weather and optimizes the discharge strategy. The smart remote control uses UVA technology, with a remote distance of up to 12 meters and the ability to pass through obstacles. The device has four lighting modes and brightness adjustment functions. The protection rating is IP65, and the lamp body can continue to function after being submerged in water for up to two hours.

Get A Quote

Materials and Structure
The lamp body is made of die-cast aluminum with an anodized surface treatment. The single-crystal silicon solar panel has a 25-year service life. The lithium iron phosphate battery supports more than 2000 deep cycles with intelligent balancing technology. The LED light uses Bridgelux 3030 chips, with a light efficiency of 170lm/W and a wide viewing angle of 140°. The protection rating is IP65, and the product is easy to assemble, install, and transport.

Surface Treatment
Anodized and electrostatically powder-coated surface for impact resistance, high-temperature tolerance, and excellent corrosion resistance.

Dimensions and Specifications
Power: 50W, 70W, 80W, 100W.
Solar Panel Parameters: 50W with 70W, 70W with 95W, 80W with 105W, 100W with 130W.
Battery Parameters: 50W with 3.2V/134Ah, 70W with 12.8V/44Ah, 80W with 12.8V/49Ah, 100W with 12.8V/60Ah.
LED Lumen Value: 50W is 10000Lm, 70W is 14000Lm, 80W is 16000Lm, 100W is 20000Lm.
Installation Height: 50W suitable for 5-7 meters, 70W suitable for 6-8 meters, 80W and 100W suitable for 8-10 meters.
Charging Time: 7 hours.

Installation Configuration
Wire-free installation, suitable for pole or arm brackets. Intelligent power adjustment with automatic weather detection. Smart remote control with UVA technology, remote distance of up to 12 meters. Four lighting modes are available. Light control + time control mode follows this schedule:100% brightness for 2 hours，70% brightness for 3 hours，10% brightness for 3 hours，Supports one rainy day backup. CE certified with a 5-year warranty.

Application Scenarios
Ideal for remote areas without grid coverage, rural roads, farm roads, parking lots, temporary lighting projects, and emergency lighting in disaster areas.

Model		THSOSL05- 50W	THSOSL05- 70W	THSOSL05- 80W	THSOSL05- 100W
Solar Panels	Parameter	70W	95W	105W	130W
	Service Life	25 years
	Crystalline Silicon Type	Monocrystalline silicon
Battery	Parameter	3.2V/134Ah	12.8V/44Ah	12.8V/49Ah	12.8V/60Ah
	Battery Type	Lithium Iron Phosphate
	Service Life	5 years
LED CHIPS	Power	50W	70W	80W	100W
	Lamp type	SMD3030	SMD3030	SMD3030	SMD3030
	Light Effect	≥200lm/W	≥200lm/W	≥200lm/W	≥200lm/W
	LM	10000Lm	14000Lm	16000Lm	20000Lm
	K	3000-6000K	3000-6000K	3000-6000K	3000-6000K
	Ra	≥70	≥70	≥70	≥70
Controller	Controller Type	MPPT Boost Controller
Installation	Installation Height	5-7m	6-8m	8-10m	8-10m
Body Material	Die-cast aluminum, aluminum alloy
Control Method	Light control + time control
Charging Time	7 hours
Lighting Time	100% 2hours+70% 3 hours+ 10%3hours+ 1 raining days
Certification	CE
Protection Grade	IP65
Warranty	5years
