Materials and Structure

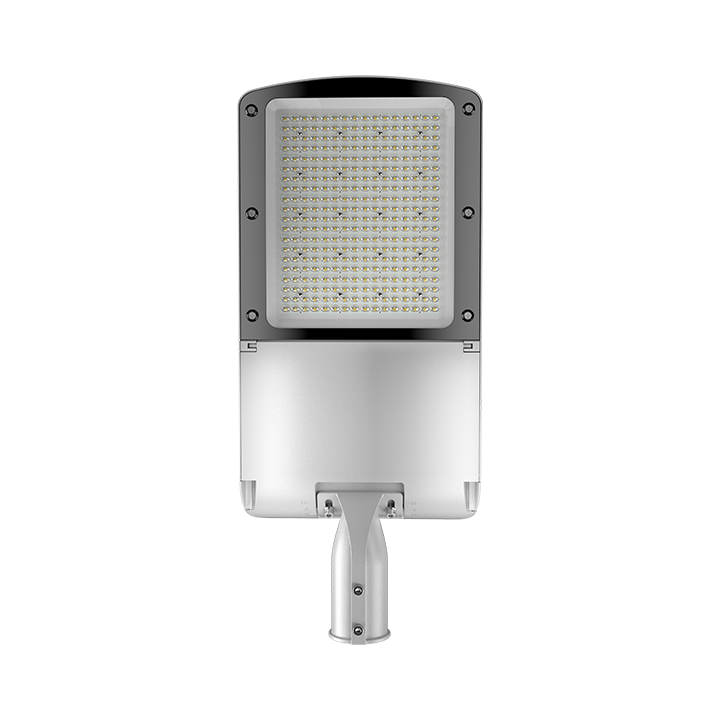

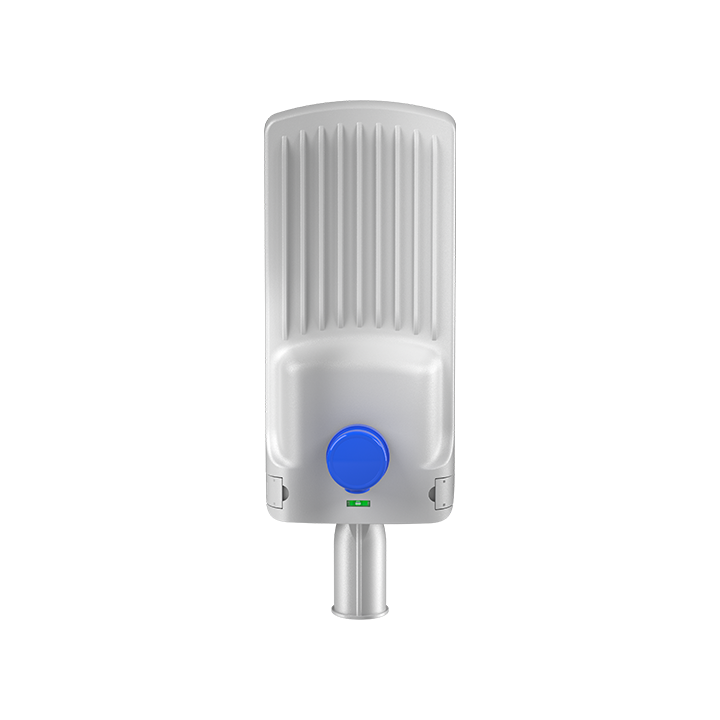

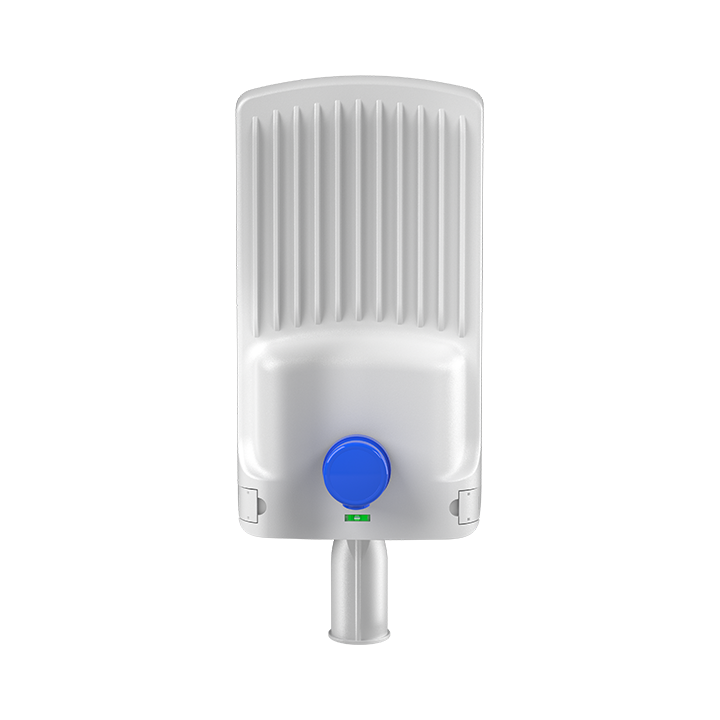

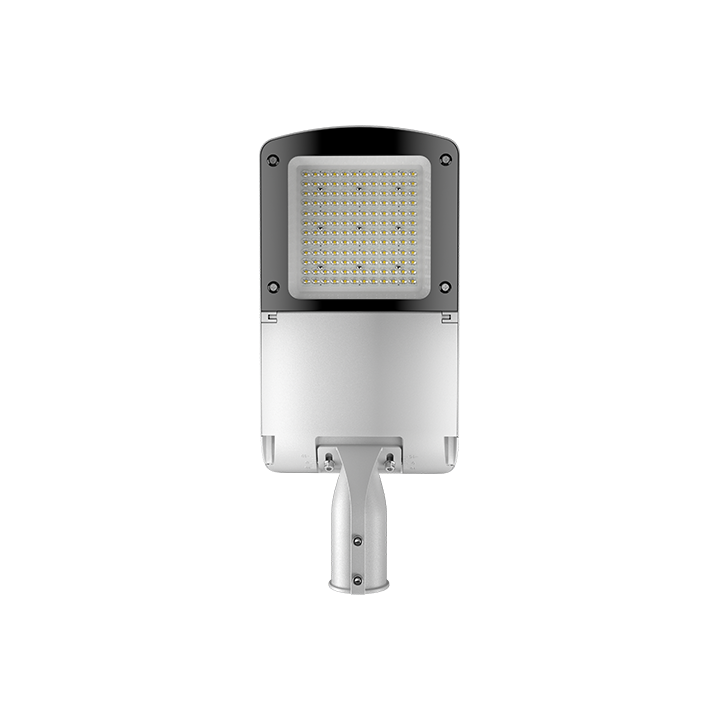

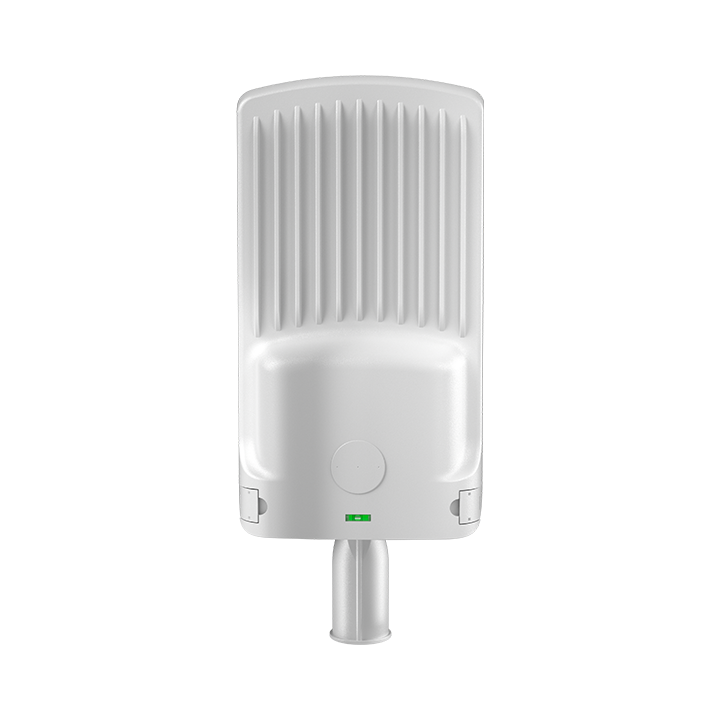

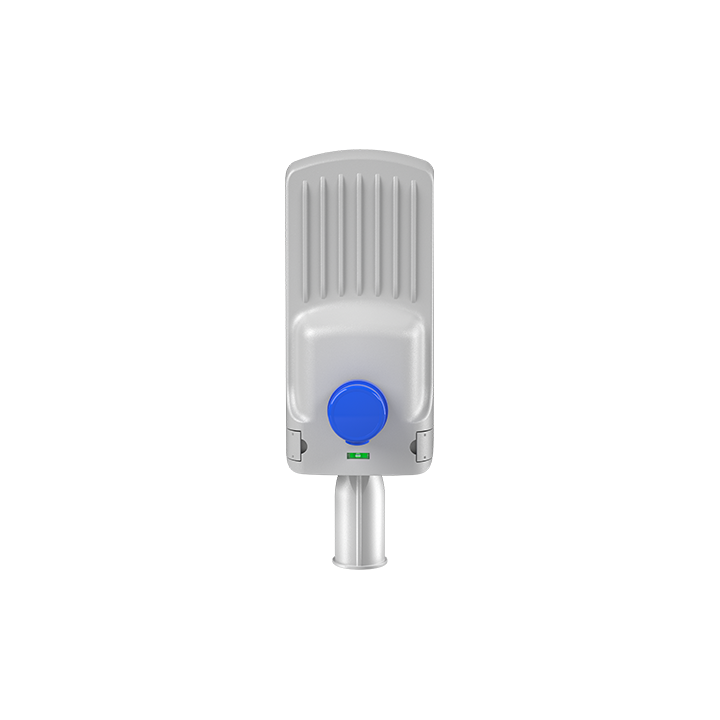

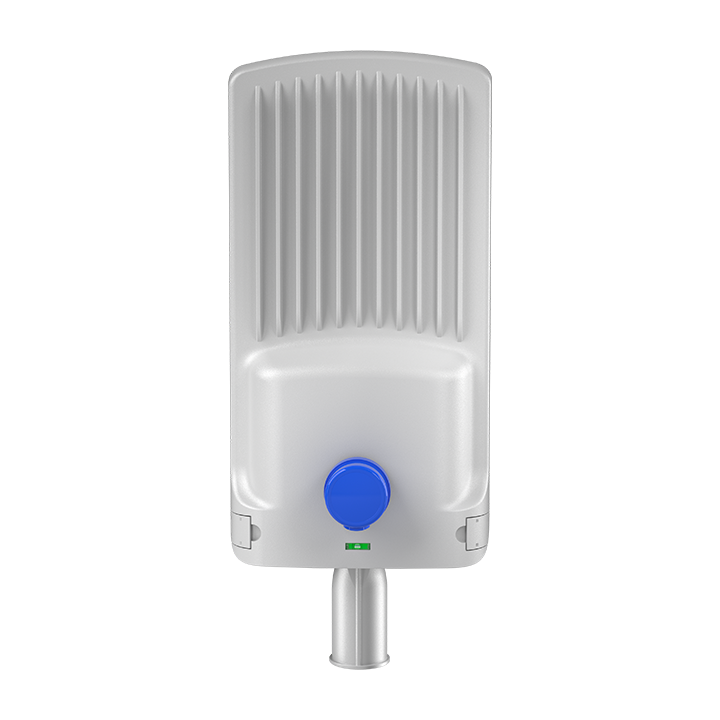

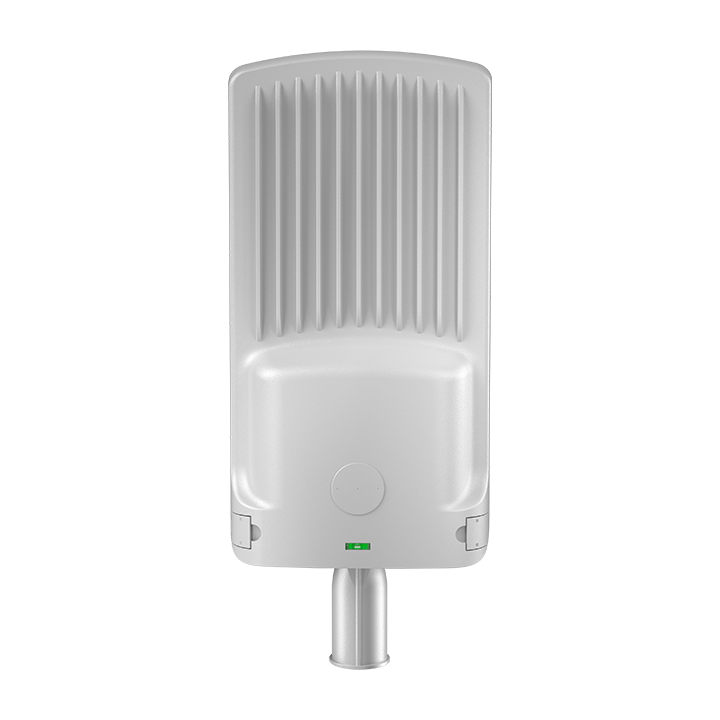

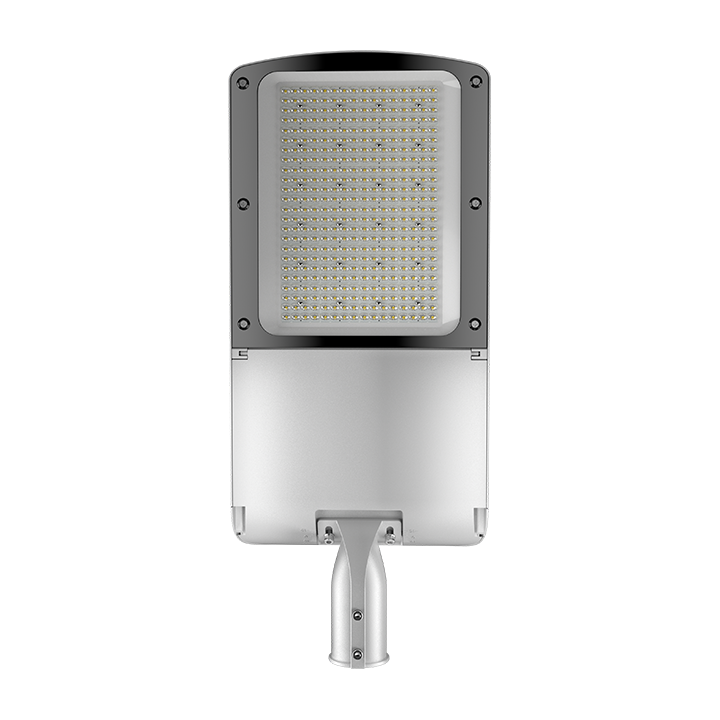

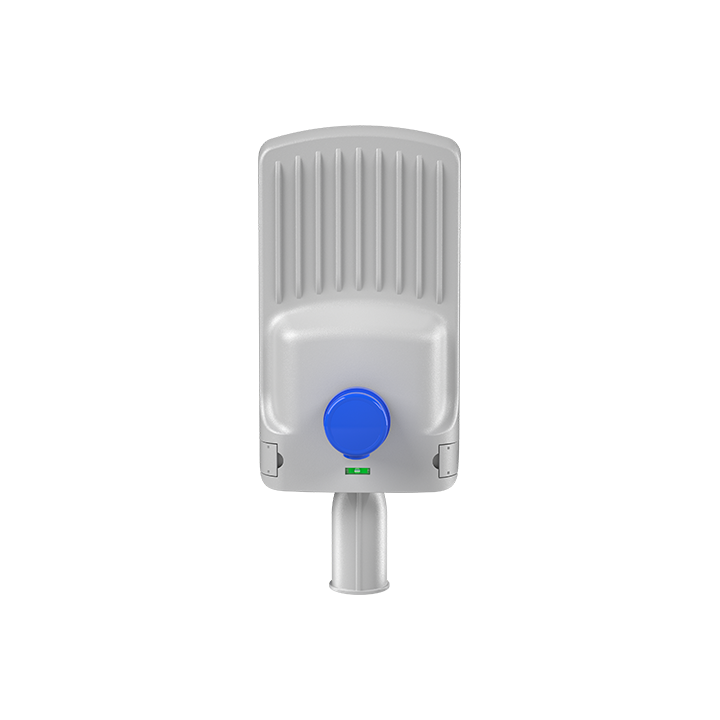

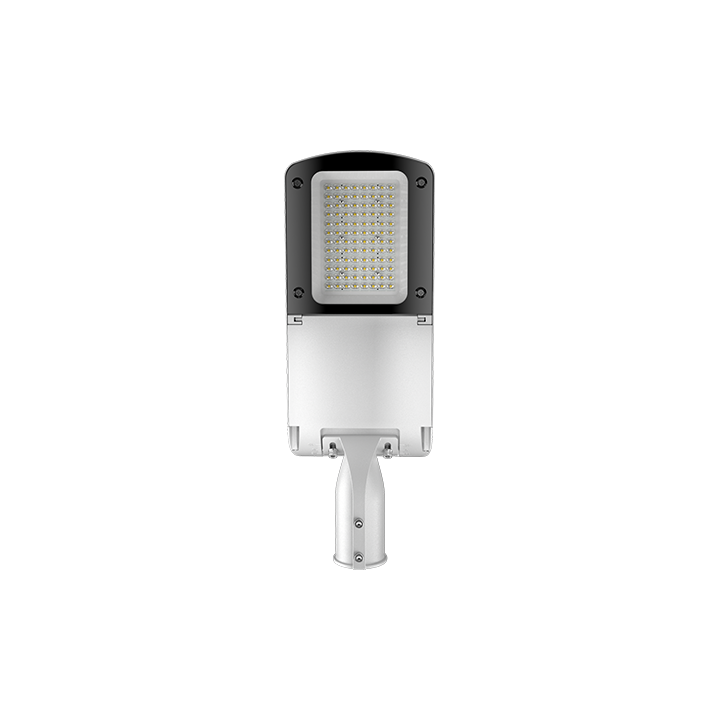

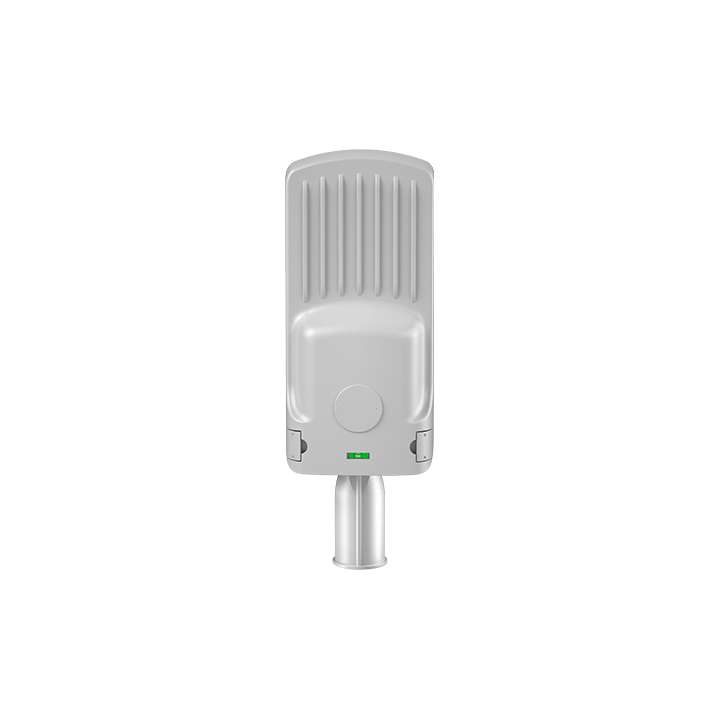

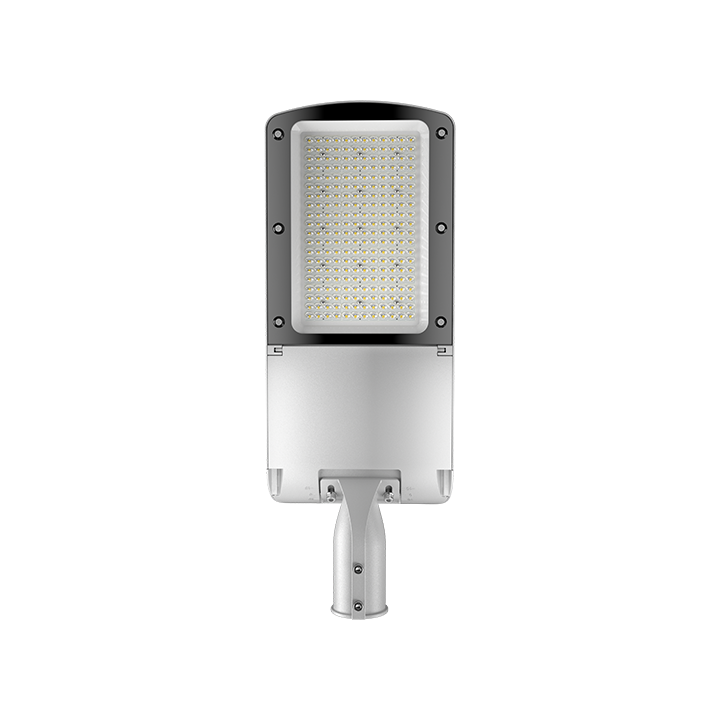

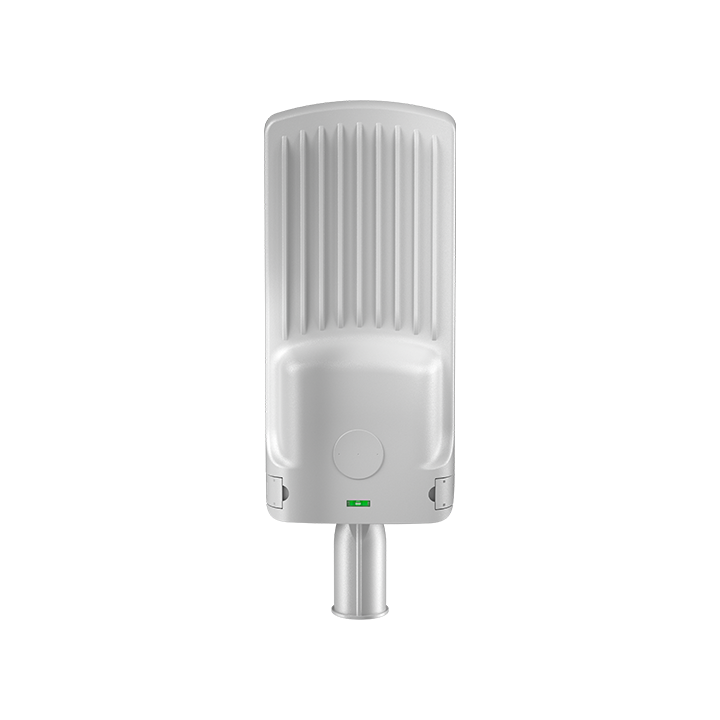

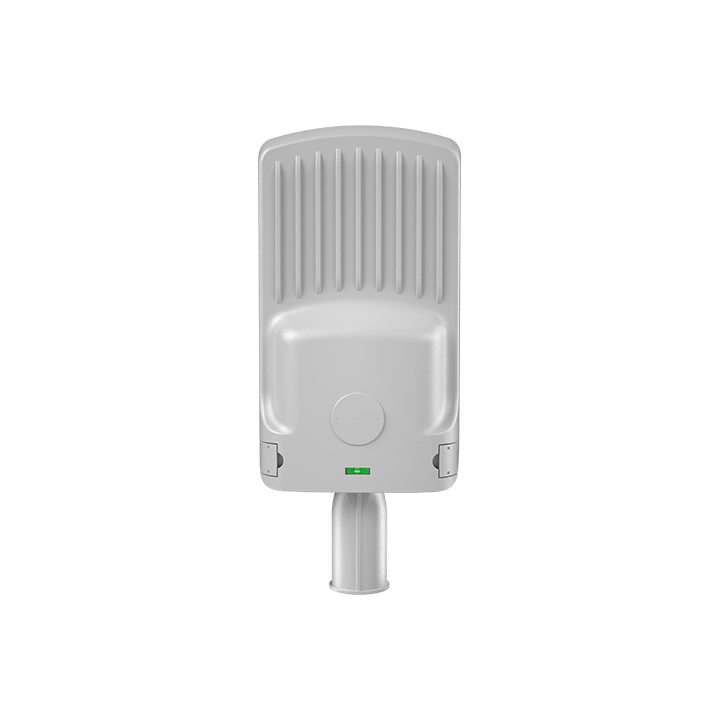

Made from die-casting aluminum housing, with a combination of tempered glass lens and PC lens.
Light efficacy: 160-170 lm/W, selectable beam angles: 60°, 90°, 120°, T2M, T3M, or T4M.
IP65 protection rating.
Driver options: Inventronics, MeanWell, Philips, or MOSO brands.
Operating temperature: -40°C to 50°C, lifespan 50,000 hours.
Surface Treatment
Electrostatic powder coating, colors customizable as required.
Size Specifications

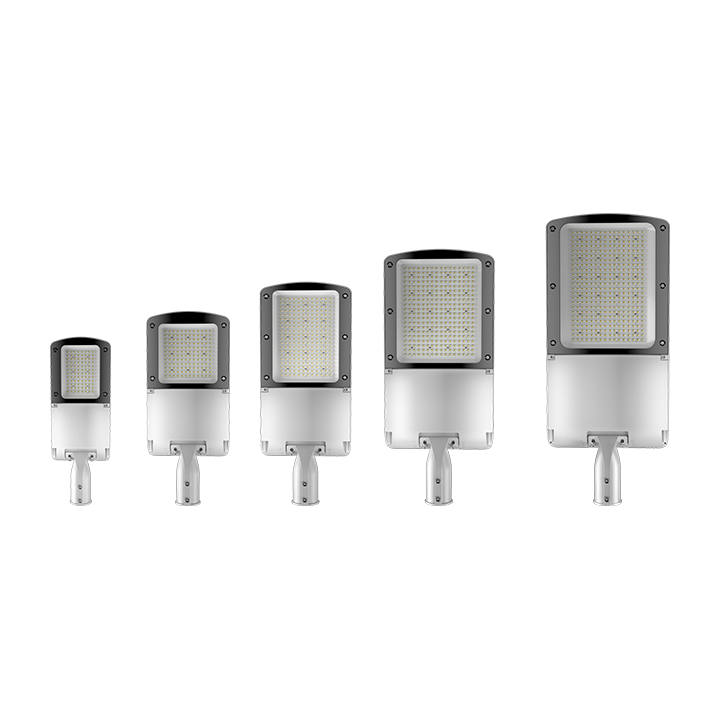

Power: 50W, 100W, 150W, 200W, 300W.
Voltage: AC100-277V, PF > 0.95, color temperature 3000-6500K.
Installation Configuration
Side mount or top mount, compatible with standard light poles.
Optional 0-10V dimming.
Application Scenarios
Urban roads and highways, coastal areas with high salt exposure, regions with high UV radiation, such as mountains and plateaus, tunnel lighting, outdoor billboard, and gas station lighting.
| Model | THSL09-50W | THSL09-100W | THSL09-150W | THSL09-200W | THSL09-300W |
| Power | 50W | 100W | 150W | 200W | 300W |
| Voltage | AC 100-277V | ||||
| Frequency Range | 50-60HZ | ||||
| PF | >0.95 | ||||
| CCT | 3000K-6500K | ||||
| Lamp Brand | 3030/5050 | ||||
| IP Rating | IP65 | ||||
| Beam Angle | 60°/90°/120°/T2M/T3M/T4M | ||||
| LED Driver | Inventronics/MeanWell/Philips/MOSO | ||||
| Raw Material | Die-cast Aluminum+PC Lens+Glass | ||||
| Luminous Efficiency | 160-170LM/ W | ||||
| Working Temperature | -40°C~50°C | ||||
| Life | 50000H | ||||
